7999-12021-7640500

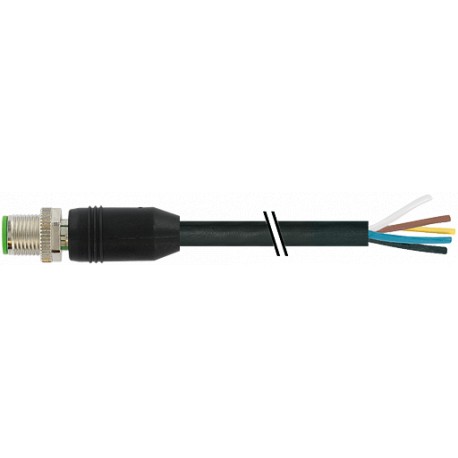

7999-12021-7640500 MURRELEKTRONIK M12 male 0° with cable PUR 4X0.75 black UL/CSA 5.0m
$0.00USD
4429 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 18
EAN:4048879320979
Fomu:12021
Ngao:no
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 18 |
| EAN | 4048879320979 |
| Fomu | 12021 |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7999-12021-7640500 |
| Ø ya Nje | 5.9 mm ±5% |
| Ulinzi | IP66K, IP67 inserted and tightened (EN 60529) |
| Nambari ya kebo | 764 |
| Rangi ya Jaketi | black |
| Volti ya majaribio | 2000 V AC |
| Rangi (koti) | black |
| Kitengo cha ufungashaji | 1 |
| Kutengwa kwa waya | PVC (br, wh, bl, bk) |
| Kipenyo (kiini) | 4 × 0.75 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300/500 V AC |
| Kipingamizi (kiini) | max. 26 Ω/km (20 °C) |
| Idhini (kebo) | UL (AWM-Style 20549/1729) |
| Nyenzo ya kufunga | Zinc die casting, nickel-plated |
| Kufunga milango | Screw thread (M12×1) recommended torque 0.6 Nm, self-securing |
| Nyenzo (koti) | PUR (UL) |
| Volti ya uendeshaji | max. 250 V AC/DC |
| Nje-Ø (koti) | 5.9 mm ±5% |
| nchi ya asili | DE |
| Uzito wa kebo [g/m] | 62,59 |
| Radius ya kupinda (imerekebishwa) | 7.5 × outer Ø |
| Ujenzi (kiini) | 24 × 0.2 mm (multi-strand wire class 5) |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals |
| Bidhaa mbadala: | Product ComparisonMale straightM12, 4-poleArt-No. 7005 - M12 Lite - (plastic hexagonal screw) on requestwith cable sleevesPlastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.FormForm12021CablesCable number764No./diameter of wires4 × 0.75 mm²Wire isolationPVC (br, wh, bl, bk)Jacket ColorblackMaterial (jacket)PUR (UL)Outer Ø5.9 mm ±5%Bend radius (moving)10× outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-20...+80 °CCable identification764Approval (cable)UL (AWM-Style 20549/1729)Cable weight [g/m]62,59Material (wire)Cu wire, bareResistor (core)max. 26 Ω/km (20 °C)Single wire Ø (core)0.2 mmConstruction (core)24 × 0.2 mm (multi-strand wire class 5)Diameter (core)4 × 0.75 mm²AWGsimilar to AWG 18Material (wire isolation)PVCShore hardness (wire isolation)90 ±5 AWire-Ø incl. isolation1.8 mm ±5%Color/numbering of wiresbr, bk, bl, whStranding combination4 wires twistedShieldnoMaterial (jacket)PURShore hardness (jacket)85 ±5 AOuter-Ø (jacket)5.9 mm ±5%Color (jacket)blackchemical resistancegood resistance to oil, gasoline and chemicalsNominal voltage300/500 V ACTest voltage2000 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °CTemperature range (mobile)-20...+80 °CBend radius (fixed)7.5 × outer ØBend radius (moving)10× outer ØTechnical DataOperating voltagemax. 250 V AC/DCOperating current per contactmax. 4 ALocking of portsScrew thread (M12×1) recommended torque 0.6 Nm, self-securingProtectionIP66K, IP67 inserted and tightened (EN 60529)Locking materialZinc die casting, nickel-platedCommercial datacountry of originDEcustoms tariff number85444290EAN4048879320979eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10× outer Ø |
| Utambulisho wa kebo | 764 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi/kipenyo cha waya | 4 × 0.75 mm² |
| Waya moja Ø (kiini) | 0.2 mm |
| Mchanganyiko wa kukwama | 4 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Ugumu wa pwani (koti) | 85 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 1.8 mm ±5% |
| Rangi/nambari za waya | br, bk, bl, wh |
| Nyenzo (kutengwa kwa waya) | PVC |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -20...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Ugumu wa ufuo (kutengwa kwa waya) | 90 ±5 A |
Maelezo ya Bidhaa
M12 male 0° A-cod. with cablePUR 4x0.75 bk UL/CSA 5m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
