7700-48561-S4W0300

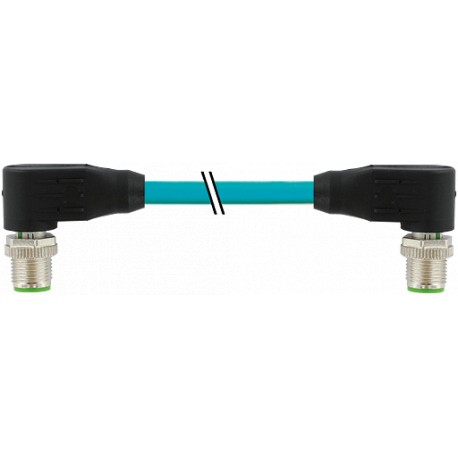

7700-48561-S4W0300 MURRELEKTRONIK M12 male 90° / M12 male 90° 8p. EN TPE 4x2xAWG24 shielded blue UL/CSA + dr..
$0.00USD
4890 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 24
EAN:4048879600163
Fomu:48561
Usimbaji:A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879600163 |
| Fomu | 48561 |
| Usimbaji | A-coded |
| Ngao | yes |
| Darasa la mtandaoni | 27061801 |
| Nyenzo | PUR |
| Ø ya Nje | 7.6 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12) |
| Ulinzi | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Onyesho la LED | no |
| Rangi ya Jaketi | blue |
| Idadi ya nguzo | 8 |
| Usanidi | fully used |
| Kiwango cha uhamisho | 1 Gbit/s |
| Rangi (koti) | (wh-bl, bl) + (wh-or, or) + (wh-gn, gn) + (wh-br, br) |
| Kundi la nyenzo | IEC 60664-1, category I |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | 3 Mio. |
| Kutengwa kwa waya | HDPE (whbl, bl, whor, or, whgn, gn, whbr, br) |
| Kipenyo (kiini) | 4× 2× 0.25 mm² |
| Nyenzo (waya) | Cu wire, tin plated |
| Mbinu ya kupachika | inserted, tightened |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Shahada ya Uchafuzi | 2 |
| Tezi ya kubana | M12 (SW13) |
| Nyenzo (koti) | TPE (UL/CSA) |
| Volti ya uendeshaji | max. 60 V AC/DC |
| Nje-Ø (koti) | 7.6 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | DE |
| Sifa za C-track | 1 Mio. |
| Uzito wa kebo [g/m] | 74,80 |
| Radius ya kupinda (imerekebishwa) | 5× outer Ø |
| Ujenzi (kiini) | 7× 0.203 mm |
| Volti ya kuongezeka iliyokadiriwa | 0.8 kV |
| Vigezo vya uhamisho | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Pinda radius (inayosogea) | 10× outer Ø |
| Utambulisho wa kebo | S4W |
| kifuniko cha ngao ya macho | min. 75% |
| Idadi/kipenyo cha waya | 4× 2× 0.25 mm² |
| nambari ya ushuru wa forodha | 85444290 |
| Waya-Ø ikijumuisha kutengwa | 1.17 mm ±5% |
| Rangi/nambari za waya | (wh-bl, bl) + (wh-or, or) + (wh-gn, gn) + (wh-br, br) |
| Nyenzo (kutengwa kwa waya) | HDPE |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -40...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 2 A |
| Idadi ya mizunguko ya kupinda (C-track) | max. 1 Mio. (25 °C) |
| Volti ya uendeshaji (UL pekee imeorodheshwa) | 30 V AC/DC |
| Inafaa kwa bomba la bati (Ø ya ndani) | without |
Maelezo ya Bidhaa
M12 male 90° / M12 male 90° A-cod. shieldedTPE 4x2x24AWG SF/UTP CAT5e bu UL/CSA. CM 3m
