7050-40261-6340200

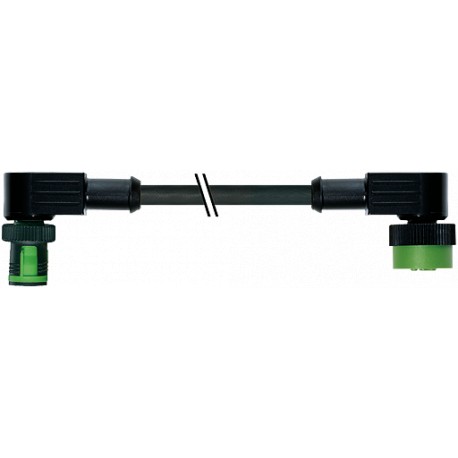

7050-40261-6340200 MURRELEKTRONIK MQ12 male 90° / MQ12 female 90° PUR 4X0.34 black UL/CSA, drag chain 2m
$0.00USD
4382 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 22
EAN:4048879105620
Fomu:40261
Usimbaji:A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879105620 |
| Fomu | 40261 |
| Usimbaji | A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7050-40261-6340200 |
| Ø ya Nje | 4.5 mm ±5% |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP65/IP67 inserted and tightened (EN 60529) |
| Rangi ya Jaketi | black |
| Idadi ya nguzo | 4 |
| Volti ya majaribio | 2 500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | black |
| Kundi la nyenzo | IEC 60664-1, category II |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±180°/m |
| Kutengwa kwa waya | PP (br, wh, bl, bk) |
| Kipenyo (kiini) | 4 × 0.34 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 57 Ω/km (20 °C) |
| Idhini (kebo) | cRUus (AWM-Style 20549/10493); CE conform |
| Kufunga milango | Quick connection, 1/4 turn |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | PA |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | max. 250 V AC/DC |
| Nje-Ø (koti) | 4.5 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | DE |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 36,30 |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Radius ya kupinda (imerekebishwa) | 5 × outer Ø |
| Ujenzi (kiini) | 42 × 0.1 mm (multi-strand wire class 6) |
| Volti ya kuongezeka iliyokadiriwa | 2.5 kV |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonMale 90° – female 90°MQ12 – MQ12, 4-polewith cable sleevesFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm40261CablesNo./diameter of wires4 × 0.34 mm²Wire isolationPP (br, wh, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA)Outer Ø4.5 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification634Cable Type3 (PUR)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]36,30Material (wire)Cu wire, bareResistor (core)max. 57 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)42 × 0.1 mm (multi-strand wire class 6)Diameter (core)4 × 0.34 mm²AWGsimilar to AWG 22Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)70 ±5 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, bl, whStranding combination4 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistantShore hardness (jacket)90 ±5 AOuter-Ø (jacket)4.5 mm ±5%Color (jacket)blackchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2Nominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Travel speed (C-track)max. 3 m/sAcceleration (C-track)max. 10 m/s²Torsion stress±180°/mNo. of torsion cyclesmax. 2 Mio. (25 °C)Torsion speed35 cycles/minJacket ColorblackTechnical DataOperating voltagemax. 250 V AC/DCRated surge voltage2.5 kVOperating current per contactmax. 4 ANo. of poles4Material groupIEC 60664-1, category IICodingA-codedLocking of portsQuick connection, 1/4 turnCompression glandPAProtectionIP65/IP67 inserted and tightened (EN 60529)suitable for corrugated tube (internal Ø)10 mmGeneral dataPollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879105620eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 634 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 4 × 0.34 mm² |
| Waya moja Ø (kiini) | 0.1 mm |
| Mchanganyiko wa kukwama | 4 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 10 m/s² |
| Kasi ya usafiri (C-track) | max. 3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 1.25 mm ±5% |
| Rangi/nambari za waya | br, bk, bl, wh |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 70 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Inafaa kwa bomba la bati (Ø ya ndani) | 10 mm |
Maelezo ya Bidhaa
MQ12 male 90° / MQ12 female 90° A-cod.PUR 4x0.34 bk UL/CSA+drag ch. 2m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
