7000-P3221-P150300

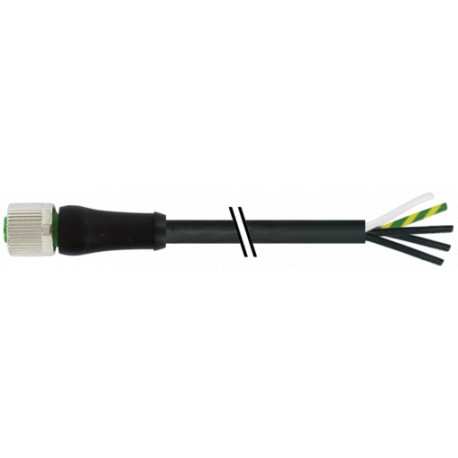

7000-P3221-P150300 MURRELEKTRONIK M12 Power K-coded female 0° with cable PUR 5x1.5 bk UL/CSA+drag chain 3m
$0.00USD
3958 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 16
Fomu:P3221
Usimbaji:K-coded
Ngao:no
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 16 |
| Fomu | P3221 |
| Usimbaji | K-coded |
| Ngao | no |
| Nyenzo | PUR |
| Viwango | IEC 61076-2-111 |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Onyesho la LED | no |
| Urefu wa kebo | 3 m |
| Idadi ya nguzo | 5 |
| Volti ya majaribio | 10.0 kV |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | black |
| Kundi la nyenzo | IEC 60664-1, category I |
| Mkazo wa torsion | ±180°/m |
| Nyenzo (waya) | Cu wire, bare |
| Mbinu ya kupachika | inserted, tightened |
| Volti ya kawaida | 1000 V AC |
| Kipingamizi (kiini) | max. 13.3 Ω/km (20 °C) |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | M12 (SW17) |
| Nyenzo (gasket) | FKM |
| Nyenzo (koti) | PUR |
| Volti ya uendeshaji | max. 600 V AC |
| Nje-Ø (koti) | 8.2 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| Uzito wa kebo [g/m] | 129,8 |
| Nyenzo (mgusano) | Copper alloy |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Ujenzi (kiini) | 84× 0.15 mm (multi-strand wire class 6) |
| Volti ya kuongezeka iliyokadiriwa | 6.0 kV |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Pinda radius (inayosogea) | 10× outer Ø |
| Utambulisho wa kebo | P15 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Waya moja Ø (kiini) | 0.15 mm |
| Mchanganyiko wa kukwama | 5 wires twisted around central filler |
| Kuongeza kasi (C-track) | max. 5 m/s² |
| Kasi ya usafiri (C-track) | max. 3.3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 2.3 mm ±5% |
| Rangi/nambari za waya | bk numbered, wh numbered, gnye vertically striped |
| Nyenzo (kutengwa kwa waya) | PP |
| Urefu wa kuvua (koti) | 100 mm |
| Kiwango cha halijoto (kisichobadilika) | -50...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Nyenzo (uso wa mguso) | Au |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Mkondo wa uendeshaji kwa kila mguso | max. 12 A |
| Idadi ya mizunguko ya kupinda (C-track) | max. 5 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 60 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Nambari ya bidhaa ya mtengenezaji | 7000-P3221-P150300 |
| Inafaa kwa bomba la bati (Ø ya ndani) | 12 mm |
Maelezo ya Bidhaa
M12 Power female 0° K-cod. with cable
