7000-88361-6300200

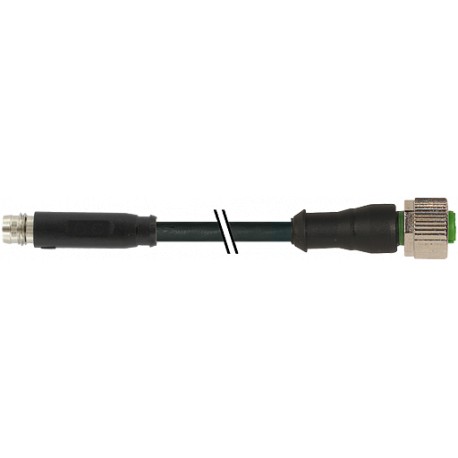

7000-88361-6300200 MURRELEKTRONIK M8 male snap-in / M12 female 0° screw-in PUR 3x0.25 black UL/CSA, drag cha..
$0.00USD
4310 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 24
EAN:4048879120364
Fomu:88361
Usimbaji:M12, A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879120364 |
| Fomu | 88361 |
| Usimbaji | M12, A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7000-88361-6300200 |
| Nyenzo | PUR |
| Ø ya Nje | 4.1 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8) |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP65, IP66K, IP67 (M12) - IP65 (M8) |
| Rangi ya Jaketi | black |
| Volti ya majaribio | 2 500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | black |
| Kundi la nyenzo | IEC 60664-1, category I |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±180°/m |
| Kutengwa kwa waya | PP (br, bl, bk) |
| Kipenyo (kiini) | 3 × 0.25 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 79 Ω/km (20 °C) |
| Idhini (kebo) | cRUus (AWM-Style 20549/10493); CE conform |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated (M12) |
| Kufunga milango | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing, M8 (Snap In) |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | M12 (SW13) |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | 50 V AC/60 V DC |
| Nje-Ø (koti) | 4.1 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | DE |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 26,40 |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Radius ya kupinda (imerekebishwa) | 5 × outer Ø |
| Ujenzi (kiini) | 32 × 0.1 mm (multi-strand wire class 6) |
| Volti ya kuongezeka iliyokadiriwa | 1.5 kV |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonMale straight – female straightM8 (Snap In) – M12, 3-poleArt-No. 7005 - M12 Lite - (plastic hexagonal screw) on requestFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm88361CablesNo./diameter of wires3 × 0.25 mm²Wire isolationPP (br, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA)Outer Ø4.1 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification630Cable Type3 (PUR)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]26,40Material (wire)Cu wire, bareResistor (core)max. 79 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)32 × 0.1 mm (multi-strand wire class 6)Diameter (core)3 × 0.25 mm²AWGsimilar to AWG 24Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)70 ±5 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, blStranding combination3 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistantShore hardness (jacket)90 ±5 AOuter-Ø (jacket)4.1 mm ±5%Color (jacket)blackchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2Nominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Travel speed (C-track)max. 3 m/sAcceleration (C-track)max. 10 m/s²Torsion stress±180°/mNo. of torsion cyclesmax. 2 Mio. (25 °C)Torsion speed35 cycles/minJacket ColorblackTechnical DataOperating voltage50 V AC/60 V DCOperating voltage (only UL listed)30 V AC/DCRated surge voltage1.5 kVOperating current per contactmax. 4 AMaterial groupIEC 60664-1, category ICodingM12, A-codedLocking of portsScrew thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing, M8 (Snap In)Compression glandM12 (SW13)ProtectionIP65, IP66K, IP67 (M12) - IP65 (M8)Locking materialZinc die casting, matte nickel plated (M12)MaterialPURsuitable for corrugated tube (internal Ø)M12 (10 mm); M8 (6.5 mm)General dataStandardsDIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8)Pollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879120364eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 630 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 3 × 0.25 mm² |
| Waya moja Ø (kiini) | 0.1 mm |
| Mchanganyiko wa kukwama | 3 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 10 m/s² |
| Kasi ya usafiri (C-track) | max. 3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 1.25 mm ±5% |
| Rangi/nambari za waya | br, bk, bl |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 70 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Volti ya uendeshaji (UL pekee imeorodheshwa) | 30 V AC/DC |
| Inafaa kwa bomba la bati (Ø ya ndani) | M12 (10 mm); M8 (6.5 mm) |
Maelezo ya Bidhaa
M8 male 0° snap-in / M12 female 0° A-cod. screw-inPUR 3x0.25 bk UL/CSA+drag ch. 2m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
