7000-78021-9612000

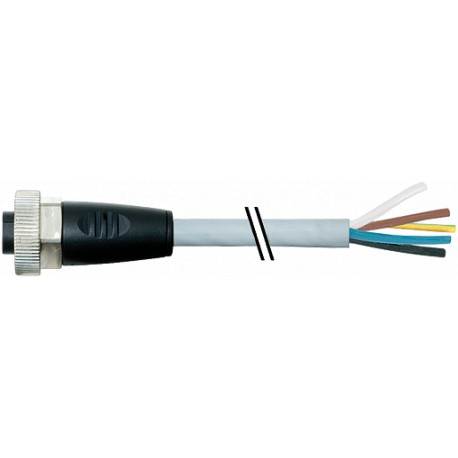

7000-78021-9612000 MURRELEKTRONIK 7/8" female 0° with cable PUR 5x1.5 gray UL/CSA+drag chain 20m
$0.00USD
4257 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 16
EAN:4048879135177
Fomu:78021
Ngao:no
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 16 |
| EAN | 4048879135177 |
| Fomu | 78021 |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7000-78021-9612000 |
| Ø ya Nje | 8.7 mm ±5% |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP67 inserted and tightened (EN 60529) |
| Rangi ya Jaketi | gray |
| Volti ya majaribio | 10 kV |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | gray |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±180°/m |
| Kutengwa kwa waya | PP (br, wh, bl, bk, gnye) |
| Kipenyo (kiini) | 5 × 1.5 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 1 000 V AC |
| Kipingamizi (kiini) | max. 13.3 Ω/km (20 °C) |
| Idhini (kebo) | cRUus (AWM-Style 21223/10492) |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | max. 230/400 V AC/DC |
| Nje-Ø (koti) | 8.7 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | CZ |
| Sifa za C-track | 5 Mio. |
| Uzito wa kebo [g/m] | 129,80 |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Radius ya kupinda (imerekebishwa) | 7.5 × outer Ø |
| Ujenzi (kiini) | 84 × 0.15 mm (multi-strand wire class 6) |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonFemale straight7/8", 5-polePower cablewith cable sleevesFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm78021CablesNo./diameter of wires5 × 1.5 mm²Wire isolationPP (br, wh, bl, bk, gnye)C-track properties5 Mio.Material (jacket)PUR (UL/CSA)Outer Ø8.7 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-50...+80 °CTemperature range (mobile)-20...+80 °CCable identification961Cable Type3 (PUR)Approval (cable)cRUus (AWM-Style 21223/10492)Cable weight [g/m]129,80Material (wire)Cu wire, bareResistor (core)max. 13.3 Ω/km (20 °C)Single wire Ø (core)0.15 mmConstruction (core)84 × 0.15 mm (multi-strand wire class 6)Diameter (core)5 × 1.5 mm²AWGsimilar to AWG 16Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)60 ±5 DWire-Ø incl. isolation2.3 mm ±5%Color/numbering of wiresbl, bk, wh, br, num; gnye longitudinally stripedStranding combination5 wires twisted around central fillerShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistantShore hardness (jacket)90 ±5 AOuter-Ø (jacket)8.7 mm ±5%Color (jacket)graychemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2Nominal voltage1 000 V ACTest voltage10 kVCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-50...+80 °CTemperature range (mobile)-20...+80 °CBend radius (fixed)7.5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 5 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 5 m/s²Torsion stress±180°/mNo. of torsion cyclesmax. 2 Mio. (25 °C)Torsion speed35 cycles/minJacket ColorgrayTechnical DataOperating voltagemax. 230/400 V AC/DCOperating current per contactmax. 12 ALocking of portsScrew thread 7/8" (recommended torque 1.5 Nm) self-securingProtectionIP67 inserted and tightened (EN 60529)Locking materialZinc die casting, matte nickel platedGeneral dataTemperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originCZcustoms tariff number85444290EAN4048879135177eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 961 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 5 × 1.5 mm² |
| Waya moja Ø (kiini) | 0.15 mm |
| Mchanganyiko wa kukwama | 5 wires twisted around central filler |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 5 m/s² |
| Kasi ya usafiri (C-track) | max. 3.3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 2.3 mm ±5% |
| Rangi/nambari za waya | bl, bk, wh, br, num; gnye longitudinally striped |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -50...+80 °C |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -20...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 12 A |
| Umbali wa kuvuka (C-track) | max. 5 m (horizontal) |
| Idadi ya mizunguko ya kupinda (C-track) | max. 5 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 60 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
