7000-41911-0370150

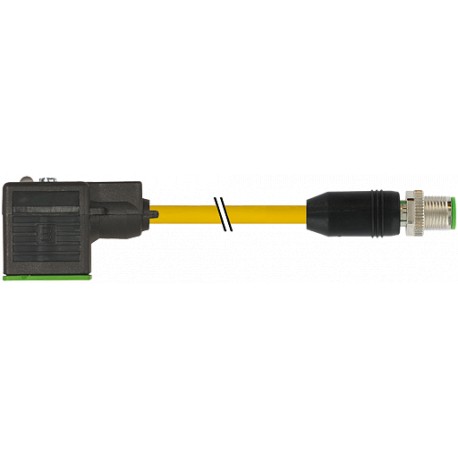

7000-41911-0370150 MURRELEKTRONIK M12 male 0° / MSUD valve plug form A 18 mm + Amplifier PUR 4X0.75 yellow U..
$0.00USD
4379 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 18
EAN:4048879143455
Fomu:41911
Usimbaji:A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 18 |
| EAN | 4048879143455 |
| Fomu | 41911 |
| Usimbaji | A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27143423 |
| Nyumba | Black plastic (gray on request) |
| Nambari ya Sanaa: | 7000-41911-0370150 |
| Nyenzo | MSUD (PBT); M12 (PUR) |
| Ø ya Nje | 6.5 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12) |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP67 inserted and tightened (EN 60529) |
| Onyesho la LED | yellow |
| Rangi ya Jaketi | yellow |
| Idadi ya nguzo | 4 |
| Volti ya majaribio | 2 500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | yellow |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±180°/m |
| Kutengwa kwa waya | PP (bk num, gnye) |
| Mkondo wa kudhibiti | 2.5...3.5 mA |
| Volti ya kudhibiti | ON: 10...30 V DC; OFF: 0...3.5 V DC (IN) |
| Kipenyo (kiini) | 4 × 0.75 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Mbinu ya kupachika | inserted, tightened |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 26 Ω/km (20 °C) |
| Zima kilele | max. 46 V |
| Idhini (kebo) | cRUus (AWM-Style 20549/10493); CE conform |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | M3/M12 × 1 mm (recommended torque 0.4/0.6 Nm) |
| Tezi ya kubana | M12 (SW13) |
| Nyenzo (gasket) | PUR |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | 12...30 V DC |
| Nje-Ø (koti) | 6.5 mm ±5% |
| nchi ya asili | CZ |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 69,30 |
| Nyenzo (mgusano) | Copper alloy |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Radius ya kupinda (imerekebishwa) | 5 × outer Ø |
| Ujenzi (kiini) | 42 × 0.15 mm (multi-strand wire class 6) |
| Matumizi ya sasa | 6 mA |
| Masafa ya kubadili | max. 50 Hz |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonMSUDForm A (18 mm)Male M12straight12...30 V DC4-poleZ-Diode + LEDControl currentSwitching frequencyFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm41911CablesNo./diameter of wires4 × 0.75 mm²Wire isolationPP (bk num, gnye)C-track properties10 Mio.Material (jacket)PUR (UL/CSA)Outer Ø6.5 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification037Cable Type3 (PUR)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]69,30Material (wire)Cu wire, bareResistor (core)max. 26 Ω/km (20 °C)Single wire Ø (core)0.15 mmConstruction (core)42 × 0.15 mm (multi-strand wire class 6)Diameter (core)4 × 0.75 mm²AWGsimilar to AWG 18Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)70 ±5 DWire-Ø incl. isolation1.85 mm ±5%Color/numbering of wiresbk numbered, gnye longitudinally stripedStranding combination4 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistantShore hardness (jacket)90 ±5 AOuter-Ø (jacket)6.5 mm ±5%Color (jacket)yellowchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2Nominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Travel speed (C-track)max. 3 m/sAcceleration (C-track)max. 10 m/s²Torsion stress±180°/mNo. of torsion cyclesmax. 2 Mio. (25 °C)Torsion speed35 cycles/minJacket ColoryellowTechnical DataOperating voltage12...30 V DCOperating current per contact100 mA...2 AControl voltageON: 10...30 V DC; OFF: 0...3.5 V DC (IN)Control current2.5...3.5 mASwitching frequencymax. 50 HzCodingA-codedNo. of poles4Current consumption6 mASwitch off peakmax. 46 VLED displayyellowLocking of portsM3/M12 × 1 mm (recommended torque 0.4/0.6 Nm)Compression glandM12 (SW13)ProtectionIP67 inserted and tightened (EN 60529)MaterialMSUD (PBT); M12 (PUR)Locking materialZinc die casting, matte nickel platedHousingBlack plastic (gray on request)suitable for corrugated tube (internal Ø)withoutGeneral dataStandardsDIN EN 61076-2-101 (M12)Mounting methodinserted, tightenedMaterial (contact)Copper alloyMaterial (contact surface)MSUD (Ag); M12(Au)Material (gasket)PURCommercial datacountry of originCZcustoms tariff number85444290EAN4048879143455eClass27143423Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 037 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 4 × 0.75 mm² |
| Waya moja Ø (kiini) | 0.15 mm |
| Mchanganyiko wa kukwama | 4 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 10 m/s² |
| Kasi ya usafiri (C-track) | max. 3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 1.85 mm ±5% |
| Rangi/nambari za waya | bk numbered, gnye longitudinally striped |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Nyenzo (uso wa mguso) | MSUD (Ag); M12(Au) |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | 100 mA...2 A |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 70 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Inafaa kwa bomba la bati (Ø ya ndani) | without |
Maelezo ya Bidhaa
M12 male 0° A-cod. / MSUD valve plug A-18mmPUR 4x0.75 ye UL/CSA+drag ch. 1.5m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
