7000-40381-2530300

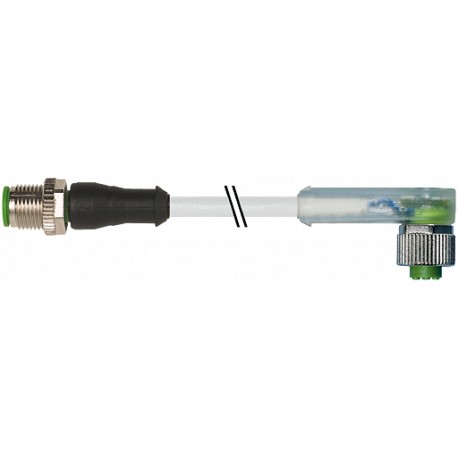

7000-40381-2530300 MURRELEKTRONIK M12 male 0° / M12 female 90° LED PUR 3X0.34 yellow UL/CSA + robot + drag c..
$0.00USD
3264 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 22
EAN:4048879167567
Fomu:40381
Usimbaji:A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879167567 |
| Fomu | 40381 |
| Usimbaji | A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7000-40381-2530300 |
| Nyenzo | PUR |
| Ø ya Nje | 4.3 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12) |
| Aina ya Kebo | 5 (PUR schweißfunkenbeständig) |
| Ulinzi | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Rangi ya Jaketi | gray |
| Volti ya majaribio | 2 500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | gray |
| Kundi la nyenzo | IEC 60664-1, category I |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±360°/m |
| Kutengwa kwa waya | PP (br, bl, bk) |
| Kipenyo (kiini) | 3 × 0.34 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 60 Ω/km (20 °C) |
| Idhini (kebo) | cRUus (AWM-Style 20549/10493); CE conform |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | M12 (SW13) |
| Nyenzo (koti) | PUR (UL/CSA), welding spark |
| Volti ya uendeshaji | 24 V DC ±25% |
| Nje-Ø (koti) | 4.3 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | DE |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 29,70 |
| upinzani wa joto | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| Radius ya kupinda (imerekebishwa) | 5 × outer Ø |
| Ujenzi (kiini) | 42 × 0.1 mm (multi-strand wire class 6) |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonMale straight – female 90°M12 – M12, 3-pole2 × LED (PNP), (NPN) on requestArt-No. 7005 - M12 Lite - (plastic hexagonal screw) on requestPlastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.FormForm40381CablesNo./diameter of wires3 × 0.34 mm²Wire isolationPP (br, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA), welding sparkOuter Ø4.3 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification253Cable Type5 (PUR schweißfunkenbeständig)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]29,70Material (wire)Cu wire, bareResistor (core)max. 60 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)42 × 0.1 mm (multi-strand wire class 6)Diameter (core)3 × 0.34 mm²AWGsimilar to AWG 22Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)74 ±3 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, blStranding combination3 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistantShore hardness (jacket)58 ±3 DOuter-Ø (jacket)4.3 mm ±5%Color (jacket)graychemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistantNominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 5 m/s²Torsion stress±360°/mNo. of torsion cyclesmax. 1 Mio. (25 °C)Torsion speed35 cycles/minJacket ColorgrayTechnical DataOperating voltage24 V DC ±25%Operating voltage (only UL listed)max. 30 V DCOperating current per contactmax. 4 AMaterial groupIEC 60664-1, category ICodingA-codedLocking of portsScrew thread M12 × 1 mm (recommended torque 0.6 Nm) self-securingCompression glandM12 (SW13)ProtectionIP65, IP66K, IP67 inserted and tightened (EN 60529)Locking materialZinc die casting, matte nickel platedMaterialPURsuitable for corrugated tube (internal Ø)10 mmGeneral dataStandardsDIN EN 61076-2-101 (M12)Pollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879167567eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 253 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 1 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 3 × 0.34 mm² |
| Waya moja Ø (kiini) | 0.1 mm |
| Mchanganyiko wa kukwama | 3 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 5 m/s² |
| Kasi ya usafiri (C-track) | max. 3.3 m/s |
| Ugumu wa pwani (koti) | 58 ±3 D |
| Waya-Ø ikijumuisha kutengwa | 1.25 mm ±5% |
| Rangi/nambari za waya | br, bk, bl |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Umbali wa kuvuka (C-track) | max. 5 m (horizontal) |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 74 ±3 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Volti ya uendeshaji (UL pekee imeorodheshwa) | max. 30 V DC |
| Inafaa kwa bomba la bati (Ø ya ndani) | 10 mm |
Maelezo ya Bidhaa
M12 male 0° / M12 female 90° A-cod. LEDPUR 3x0.34 gy UL/CSA+robot+drag ch. 3m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
