Kipatikana Bidhaa Maarufu
7000-40141-5770100

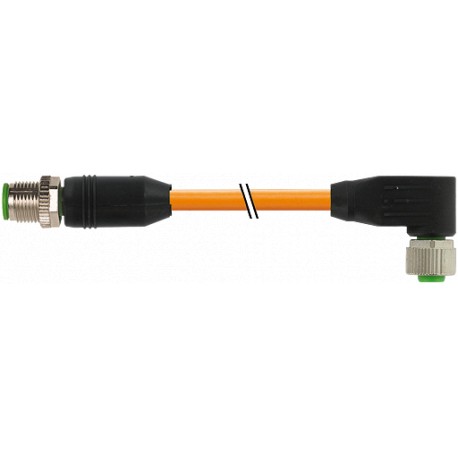

7000-40141-5770100 MURRELEKTRONIK M12 male 0° / M12 female 90° PUR 4x0.34 + 1x0.5 orange UL/CSA + robot + dr..
$0.00USD
4480 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 22 (0.34 mm²); similar to AWG 20 (0.5 mm²)
EAN:4048879675598
Fomu:40141
Usimbaji:A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 20 (0.5 mm²) |
| EAN | 4048879675598 |
| Fomu | 40141 |
| Usimbaji | A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nyenzo | PUR |
| Ø ya Nje | 7.0 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12) |
| Aina ya Kebo | 5 (PUR schweißfunkenbeständig) |
| Ulinzi | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Rangi ya Jaketi | orange |
| Volti ya majaribio | 2500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | orange |
| Kundi la nyenzo | IEC 60664-1, category I |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±360°/m |
| Kutengwa kwa waya | PP (br, wh, bl, bk, gnye) |
| Kipenyo (kiini) | 4× 0.34 + 1× 0.5 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 60 Ω/km (20 °C, 0.34 mm); max. 39 Ω/km (20 °C, 0.5 mm) |
| Idhini (kebo) | cURus (AWM-Style 20549/10493); CE conform |
| Nyenzo ya kufunga | Zinc die casting, save-cover coated |
| Kufunga milango | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | M12 (SW13) |
| Nyenzo (koti) | PUR (UL/CSA), welding spark |
| Volti ya uendeshaji | max. 125 V AC/DC |
| Nje-Ø (koti) | 7.0 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | CZ |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 66,00 |
| upinzani wa joto | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| Radius ya kupinda (imerekebishwa) | 5× outer Ø |
| Ujenzi (kiini) | 42× 0.1 mm (0.34 mm²); 28× 0.15 mm (0.5 mm²); (multi-strand wire class 6) |
| Volti ya kuongezeka iliyokadiriwa | 1.5 kV |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Pinda radius (inayosogea) | 10× outer Ø |
| Utambulisho wa kebo | 577 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 1 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 4× 0.34 + 1× 0.5 mm² |
| Waya moja Ø (kiini) | 0.1 mm (0.34 mm); 0.19 mm (0.5 mm) |
| Mchanganyiko wa kukwama | 5 wires twisted around central filler |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 5 m/s² |
| Kasi ya usafiri (C-track) | max. 3.3 m/s |
| Ugumu wa pwani (koti) | 58 ±3 D |
| Waya-Ø ikijumuisha kutengwa | 1.25 mm ±5% (0.34 mm²); 1.4 mm ±5% (0.5 mm²) |
| Rangi/nambari za waya | br, bk, bl, wh, gnye longitudinally striped |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Umbali wa kuvuka (C-track) | max. 5 m (horizontal) |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 74 ±3 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Volti ya uendeshaji (UL pekee imeorodheshwa) | max. 30 V AC/DC |
| Inafaa kwa bomba la bati (Ø ya ndani) | 10 mm |
Maelezo ya Bidhaa
M12 male 0° / M12 female 90° A-cod.PUR 5x0.34 or UL/CSA+robot+drag ch. 1m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
