6EP1437-3BA10

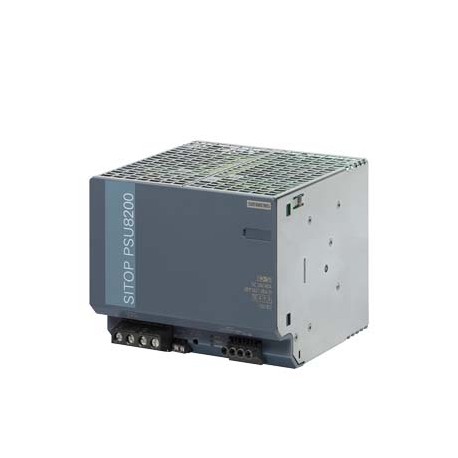

6EP1437-3BA10 SIEMENS SITOP PSU8200 24 V/40 A Stabilized power supply Input: 400-500 V 3 AC Output: 24 V DC/..
$0.00USD
3795 kwenye hisa
Vipimo Muhimu
:Value
EAN:4025515152538
UPC:040892549577
ETIM:4
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Value | |
| EAN | 4025515152538 |
| UPC | 040892549577 |
| ETIM | 4 |
| WAZO | 4 |
| Ingizo | 3-phase AC |
| Vidokezo | Sucessor:For information, contact Product Management |
| Matokeo | Controlled, isolated DC voltage |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| Alama ya CE | Yes |
| ● juu | 50 mm |
| — Kumbuka | With natural convection; startup tested starting from -40 °C nominal voltage |
| ● Dokezo | +60 ... +70 °C: Derating 3.75%/K |
| ● kushoto | 0 mm |
| Ishara | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| ● kulia | 0 mm |
| Msimbo wa Kikundi | R315 |
| I²t, kiwango cha juu. | 2.24 A²·s |
| ● Matokeo | +, -: 2 screw terminals each for 0.33 ... 10 mm² |
| ● chini | 50 mm |
| Idhini ya CB | Yes |
| Miunganisho | |
| Idhini ya FM | - |
| Kundi la Bei | 581 |
| ● kiwango cha juu zaidi | 3.5 mA |
| ● kawaida | 44 A |
| Usakinishaji | Snaps onto DIN rail EN 60715 35x15 |
| Kipengele cha Chuma | None |
| Masafa ya sasa | 0 ... 40 A |
| Ingizo la sasa | |
| Kundi la Bidhaa | 4213 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| ● Msaidizi | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm² |
| Nambari ya Bidhaa | 85044090 |
| MTBF kwa 40 °C | 885 739 h |
| Kinga ya kelele | EN 61000-6-2 |
| Familia ya bidhaa | 3-phase, 24 V DC |
| Onyesho la hali | Green LED for 24 V OK |
| Mkondo wa kuvuja | |
| Ubaja wa sehemu kuu | at Vin = 400 V |
| Idhini ya baharini | ABS, DNV GL |
| Uzito Halisi (kg) | 3,400 Kg |
| Tabia ya kuwasha/kuzima | No overshoot of Vout (soft start) |
| Uzito, takriban. | 3.4 kg |
| Masafa ya marekebisho | 24 ... 28.8 V |
| Kina (EF000049) | 150.0 |
| Darasa la ulinzi | Class I |
| Upeo wa mstari uliokadiriwa | 47 ... 63 Hz |
| Nafasi inayohitajika | |
| Kiwango cha volteji cha AC | 320 ... 575 V |
| Ingizo la masafa mapana | Yes |
| Upana (EF000008) | 150.0 |
| ● Ingizo la usambazaji | L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded |
| Nchi ya asili | Romania |
| Urefu (EF000040) | 125.0 |
| Taarifa nyingine | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Kutengwa kwa Galvaniki | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| LKZ_FDB/ Kitambulisho cha Katalogi | KT10-PE |
| Tarehe ya Kuanza Kutumika ya PLM | Product phase-out since: 01.10.2018 |
| Kiasi cha Ufungashaji | 1 |
| ● wakati wa kuhifadhi | -40 ... +85 °C |
| Halijoto ya mazingira | |
| Vipimo vya Ufungashaji | 18,50 x 18,50 x 15,00 |
| Maelezo ya Bidhaa | SITOP PSU8200 24 V/40 A Stabilized power supply Input: 400-500 V 3 AC Output: 24 V DC/40 A !!! Phased-out product !!! Successor: 6EP3437-8SB00-0AY0 |
| Ucheleweshaji wa kuanza, kiwango cha juu zaidi. | 2.5 s |
| Uingiliaji kati unaotolewa | EN 55022 Class B |
| Ulinzi wa milipuko | IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T4 |
| Kuweka muda wa juu zaidi | 10 ms |
| ● wakati wa operesheni | -25 ... +70 °C |
| ● wakati wa usafiri | -40 ... +85 °C |
| Teknolojia ya muunganisho | screw-type terminals |
| Volti iliyokadiriwa Vout DC | 24 V |
| Imeimarishwa (EF005302) | - |
| Idhini ya UL/cUL (CSA) | cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) |
| Fuse inayoingia iliyojengewa ndani | none |
| Kina cha uzio | 150 mm |
| Vifaa vya umeme | Buffer module |
| Vifaa vya mitambo | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
| Mpangilio wa volteji ya kutoa | via potentiometer; max. 960 W |
| Masafa ya mstari yaliyokadiriwa 1 | 50 Hz |
| Masafa ya mstari yaliyokadiriwa 2 | 60 Hz |
| Upana wa kizingiti | 150 mm |
| Urefu wa kizingiti | 125 mm |
| Utoaji wa nguvu (EF003034) | 960.0 |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM400:Phase Out Started |
| Kizuizi cha sasa, aina. | 44 A |
| Ulinzi wa mzunguko mfupi | Alternatively, constant current characteristic approx. 44 A or latching shutdown |
| Upana uliojengewa ndani (EF000846) | 150.0 |
| Mkondo wa kuzidisha unaoendelea | |
| Urefu uliojengewa ndani (EF000332) | 225.0 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Toleo la kawaida (EF001126) | true |
| Uvumilivu kamili, tuli ± | 3 % |
| Kutengwa kwa msingi/sekondari | Yes |
| Mkondo wa kuzidisha wa muda mfupi | |
| Kazi za zamani za muda wa kawaida | 1 Day/Days |
| Kizuizi cha harmoniki za usambazaji | EN 61000-3-2 |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | CM |
| Matumizi ya nguvu (EF000346) | - |
| Ulinzi wa pato kupita kiasi | < 35 V |
| Thamani ya volteji iliyokadiriwa Vin | 400 ... 500 V |
| Nguvu inayotumika hutolewa kawaida | 960 W |
| Vipimo vya Bidhaa (Upana x Upana x Urefu) | Not available |
| Thamani ya sasa iliyokadiriwa Iout imekadiriwa | 40 A |
| Inayokinga mzunguko mfupi (EF007332) | true |
| Usawazishaji tuli wa mzigo, takriban. | 0.2 % |
| Kiwango cha ulinzi (EN 60529) | IP20 |
| Kilele cha mabaki ya mawimbi, upeo. | 100 mV |
| Mkondo wa juu zaidi wa kutoa 1 (EF008284) | 40 |
| Mkondo wa juu zaidi wa kutoa 2 (EF008285) | - |
| Kiwango cha juu cha mkondo wa kutoa 3 (EF008286) | - |
| Kiashiria cha mzigo kupita kiasi/mzunguko mfupi | LED yellow for "overload", LED red for "latching shutdown" |
| ● kwa volteji ya pembejeo iliyokadiriwa 400 V | 2.6 A |
| ● kwa volteji ya pembejeo iliyokadiriwa 500 V | 2.1 A |
| Inawezekana kuweka reli (EF003972) | - |
| Inawezekana kuweka ukuta (EF003973) | - |
| Fidia ya nguvu kuu tuli, takriban. | 0.1 % |
| Ufungaji wa moja kwa moja unawezekana (EF005689) | false |
| Ubaja wa mtandao mkuu katika kiwango cha Iout, kiwango cha chini. | 15 ms; at Vin = 400 V |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Darasa la unyevunyevu kulingana na EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Volti ya kutoa imetulia (EF003092) | - |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 6EP1437-3BA10 |
| Volti ya usambazaji iliyokadiriwa katika DC (EF007078) | - |
| SIL kulingana na IEC 61508 (EF009889) | - |
| ● katika mzunguko mfupi wakati wa operesheni | 25 ms |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Aina ya muunganisho wa umeme (EF003961) | Screw connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Volti ya sekondari ya 1 ya kutoa (EF006792) | ['24', '24'] |
| Volti ya pili ya kutoa ya sekondari (EF006797) | - |
| Volti ya pato la sekondari ya tatu (EF006800) | - |
| Volti ya pili inayoweza kubadilishwa (EF007002) | true |
| Thamani ya RMS ya mkondo wa mzunguko mfupi unaodumu | |
| Inafaa kwa kazi za usalama (EF001597) | - |
| Thamani ya nominella ya sasa ya pato 1 (EF009396) | 40.0 |
| Thamani ya nominella ya sasa ya pato 2 (EF009397) | - |
| Thamani ya nominella ya sasa ya pato 3 (EF009398) | - |
| Volti ya pato la thamani ya nominella 1 (EF009393) | - |
| Volti ya pato la thamani ya nominella 2 (EF009394) | - |
| Volti ya pato la thamani ya nominella 3 (EF009395) | - |
| Aina ya volteji ya volteji ya usambazaji (EF002991) | AC |
| Volti ya pato la kazi ya bidhaa inayoweza kubadilishwa | Yes |
| Sifa ya matokeo ya kuzuia mzunguko mfupi | Yes |
| Miiba ya kilele-kilele, upeo. (kipimo data: 20 MHz) | 200 mV |
| Kizuizi cha mkondo wa kuwasha (+25 °C), kiwango cha juu zaidi. | 56 A |
| Kubadilisha sambamba kwa ajili ya utendaji ulioboreshwa | Yes; switchable characteristic |
| Volti ya usambazaji iliyokadiriwa katika AC 50 Hz (EF007076) | ['400', '400'] |
| Volti ya usambazaji iliyokadiriwa katika AC 60 Hz (EF007077) | ['500', '500'] |
| Ufanisi katika Vout uliokadiriwa, Iout uliokadiriwa, takriban. | 92 % |
| Upotevu wa nguvu katika kiwango cha Vout, kiwango cha Iout, takriban. | 83 W |
| Ulinzi katika pembejeo ya umeme wa mtandao (IEC 898) | Required: 3-pole connected miniature circuit breaker 10 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) |
| ● katika mzunguko mfupi wakati wa operesheni ya kawaida | 120 A |
| Upana katika idadi ya nafasi za moduli (EF002950) | - |
| Fidia ya nguvu kuu (Vin iliyokadiriwa ±15%), kiwango cha juu zaidi. | 1 % |
| Uwezo wa kuzidisha mkondo wa maji katika operesheni ya kawaida | overload capability 150 % Iout rated up to 5 s/min |
| Muda wa ongezeko la voltage ya kiwango cha juu cha voltage ya pato | 500 ms |
| ● kwenye mzunguko mfupi wa umeme wakati wa kuanzisha kawaida | 44 A |
| Muda wa uwezo wa kupakia kupita kiasi kwa mkondo uliozidi | |
| Kulainisha mzigo unaobadilika (Iout: 50/100/50%), Uout ± aina. | 3 % |
| Kiwango cha utendaji kulingana na EN ISO 13849-1 (EF007399) | - |
| Idadi ya vitengo vinavyoweza kubadilishwa sambamba kwa ajili ya utendaji ulioboreshwa | 2 |
| Kipengele cha bidhaa cha nyumba ya kufungia kwa ajili ya kupachika kando kwa kando | Yes |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 10.03.2009 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
