6EP1353-2BA00

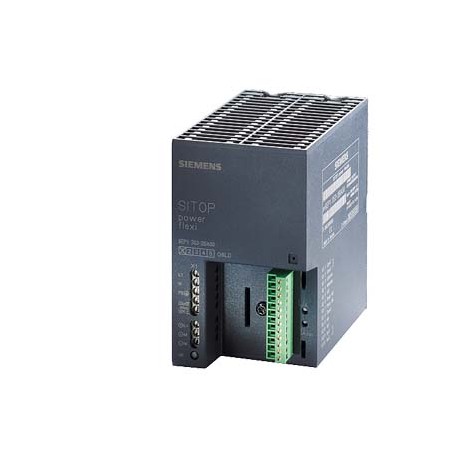

6EP1353-2BA00 SIEMENS SITOP power flexi stabilized power supply input: 120-230 V AC output: 3-52 V DC/10 A, ..
$0.00USD
3587 kwenye hisa
Vipimo Muhimu
:Value
EAN:4025515150466
UPC:754554738918
Ingizo:1-phase AC
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Value | |
| EAN | 4025515150466 |
| UPC | 754554738918 |
| Ingizo | 1-phase AC |
| Vidokezo | For this product a successor is available6EP3343-0SA00-0AY0This product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office |
| Matokeo | Controlled, isolated DC voltage |
| Alama ya CE | Yes |
| ● juu | 50 mm |
| — Kumbuka | with natural convection |
| ● Dokezo | Set via wire jumper |
| ● kushoto | 0 mm |
| ● upeo. | 10 A |
| ● dakika. | 2 A |
| Ishara | Power-Good via relay contact, current monitor signal 0 … 2.5 V |
| Mrithi | 6EP3343-0SA00-0AY0 |
| ● kulia | 0 mm |
| Msimbo wa Kikundi | R315 |
| I²t, kiwango cha juu. | 0.8 A²·s |
| ● Matokeo | L+: 1 screw terminal for 0.5 ... 2.5 mm²; M: 2 screw terminals for 0.5 ... 2.5 mm² |
| ● chini | 50 mm |
| Idhini ya CB | No |
| Miunganisho | |
| Idhini ya FM | - |
| Kundi la Bei | 5ZT |
| ● 1 katika AC | 85 ... 132 V |
| ● 2 kwenye AC | 170 ... 264 V |
| ● kiwango cha juu zaidi | 3.5 mA |
| Usakinishaji | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Kipengele cha Chuma | None |
| Masafa ya sasa | 0 ... 10 A |
| Ingizo la sasa | |
| Volti ya kuingiza | |
| Kundi la Bidhaa | 4741 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| ● Msaidizi | Alarm signals, control inputs: 1 screw terminal each for 0.14 ... 1.5 mm² |
| Nambari ya Bidhaa | 85044090 |
| MTBF kwa 40 °C | 1 196 172 h |
| Kinga ya kelele | EN 61000-6-2 |
| Volti ya kutoa | 3-52 V DC |
| Familia ya bidhaa | Not available |
| Onyesho la hali | Green LED for 24 V OK |
| Volti ya usambazaji | |
| Mkondo wa kuvuja | |
| Ubaja wa sehemu kuu | at Pout = 120 W and Vin = 93/187 V |
| Idhini ya baharini | - |
| Uzito Halisi (kg) | 0,900 Kg |
| Tabia ya kuwasha/kuzima | No overshoot of Vout (soft start) |
| Uzito, takriban. | 0.9 kg |
| Masafa ya marekebisho | 3 ... 52 V |
| Kina (EF000049) | 125.0 |
| Darasa la ulinzi | Class I |
| Upeo wa mstari uliokadiriwa | 47 ... 63 Hz |
| Nafasi inayohitajika | |
| Ingizo la masafa mapana | No |
| Upana (EF000008) | 75.0 |
| ● Ingizo la usambazaji | L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| Nchi ya asili | Austria |
| Urefu (EF000040) | 125.0 |
| Taarifa nyingine | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Kizuizi cha sasa | 2 ... 10 A |
| Kutengwa kwa Galvaniki | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| LKZ_FDB/ Kitambulisho cha Katalogi | KT10-PE |
| Tarehe ya Kuanza Kutumika ya PLM | Product is cancelled since: 15.07.2019 |
| Kiasi cha Ufungashaji | 1 |
| Kuongezeka kwa voltage, aina. | 80 ms |
| ● wakati wa kuhifadhi | -40 ... +85 °C |
| Halijoto ya mazingira | |
| Vipimo vya Ufungashaji | 14,00 x 14,00 x 9,00 |
| Maelezo ya Bidhaa | SITOP power FLEXI Stabilized power supply input: 120/230 V AC, output: 3-52 V DC/10 A, 120 W |
| Ucheleweshaji wa kuanza, kiwango cha juu zaidi. | 3 s |
| Uingiliaji kati unaotolewa | EN 55022 Class B |
| Ulinzi wa milipuko | - |
| ● wakati wa operesheni | 0 ... 60 °C |
| ● wakati wa usafiri | -40 ... +85 °C |
| Teknolojia ya muunganisho | screw-type terminals |
| Volti iliyokadiriwa Vout DC | 24 V |
| Imeimarishwa (EF005302) | - |
| Maelezo ya Mrithi | SITOP PSU3600 flexi Stabilized power supply Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W |
| Idhini ya UL/cUL (CSA) | cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 |
| Fuse inayoingia iliyojengewa ndani | T 3,15 A/250 V (not accessible) |
| Kina cha uzio | 125 mm |
| Mpangilio wa volteji ya kutoa | via potentiometer or analog current voltage signal 0 ... 2.5 V |
| Upinzani wa volteji kupita kiasi | 2.3 × Vin rated, 1.3 ms |
| Masafa ya mstari yaliyokadiriwa 1 | 50 Hz |
| Masafa ya mstari yaliyokadiriwa 2 | 60 Hz |
| Upana wa kizingiti | 75 mm |
| Urefu wa kizingiti | 125 mm |
| Utoaji wa nguvu (EF003034) | 120.0 |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM410:Product cancellation |
| ● 1 kwa Thamani ya AC Iliyokadiriwa | 120 V |
| ● 2 kwa Thamani ya AC Iliyokadiriwa | 230 V |
| Ulinzi wa mzunguko mfupi | Electronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V |
| Upana uliojengewa ndani (EF000846) | 75.0 |
| Mkondo wa kuzidisha unaoendelea | |
| Urefu uliojengewa ndani (EF000332) | 225.0 |
| Kanuni za Udhibiti wa Usafirishaji Nje | ECCN : N / AL : N |
| Toleo la kawaida (EF001126) | true |
| Uvumilivu kamili, tuli ± | 1 % |
| Kutengwa kwa msingi/sekondari | Yes |
| Kazi za zamani za muda wa kawaida | On request |
| Kizuizi cha harmoniki za usambazaji | EN 61000-3-2 |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | CM |
| Matumizi ya nguvu (EF000346) | - |
| Ulinzi wa pato kupita kiasi | Yes, according to EN 60950-1 |
| Thamani ya volteji iliyokadiriwa Vin | 120 ... 230 V |
| Nguvu inayotumika hutolewa kawaida | 120 W |
| Vipimo vya Bidhaa (Upana x Upana x Urefu) | Not available |
| Thamani ya sasa iliyokadiriwa Iout imekadiriwa | 10 A |
| Inayokinga mzunguko mfupi (EF007332) | true |
| Usawazishaji tuli wa mzigo, takriban. | 0.2 % |
| Kiwango cha ulinzi (EN 60529) | IP20 |
| Kilele cha mabaki ya mawimbi, upeo. | 50 mV |
| Kilele cha mabaki ya ripple, aina. | 20 mV |
| Mkondo wa juu zaidi wa kutoa 1 (EF008284) | 10 |
| Mkondo wa juu zaidi wa kutoa 2 (EF008285) | - |
| Kiwango cha juu cha mkondo wa kutoa 3 (EF008286) | - |
| Kiashiria cha mzigo kupita kiasi/mzunguko mfupi | Red LED for current or power limiting |
| ● kwa volteji ya pembejeo iliyokadiriwa 120 V | 2.2 A |
| ● kwa volteji ya pembejeo iliyokadiriwa 230 V | 0.9 A |
| Inawezekana kuweka reli (EF003972) | - |
| Inawezekana kuweka ukuta (EF003973) | - |
| Fidia ya nguvu kuu tuli, takriban. | 0.1 % |
| Ufungaji wa moja kwa moja unawezekana (EF005689) | false |
| Ubaja wa mtandao mkuu katika kiwango cha Iout, kiwango cha chini. | 10 ms; at Pout = 120 W and Vin = 93/187 V |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Darasa la unyevunyevu kulingana na EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Volti ya kutoa imetulia (EF003092) | - |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 6EP1353-2BA00 |
| Volti ya usambazaji iliyokadiriwa katika DC (EF007078) | - |
| SIL kulingana na IEC 61508 (EF009889) | - |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Aina ya muunganisho wa umeme (EF003961) | Screw connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Volti ya sekondari ya 1 ya kutoa (EF006792) | ['3', '52'] |
| Volti ya pili ya kutoa ya sekondari (EF006797) | - |
| Volti ya pato la sekondari ya tatu (EF006800) | - |
| Volti ya pili inayoweza kubadilishwa (EF007002) | true |
| Inafaa kwa kazi za usalama (EF001597) | - |
| Thamani ya nominella ya sasa ya pato 1 (EF009396) | 10.0 |
| Thamani ya nominella ya sasa ya pato 2 (EF009397) | - |
| Thamani ya nominella ya sasa ya pato 3 (EF009398) | - |
| Volti ya pato la thamani ya nominella 1 (EF009393) | - |
| Volti ya pato la thamani ya nominella 2 (EF009394) | - |
| Volti ya pato la thamani ya nominella 3 (EF009395) | - |
| Aina ya volteji ya volteji ya usambazaji (EF002991) | AC |
| Volti ya pato la kazi ya bidhaa inayoweza kubadilishwa | Yes |
| Sifa ya matokeo ya kuzuia mzunguko mfupi | Yes |
| Miiba ya kilele-kilele, upeo. (kipimo data: 20 MHz) | 100 mV |
| Miiba ya kilele-kilele, aina (kipimo data: 20 MHz) | 80 mV |
| Kizuizi cha mkondo wa kuwasha (+25 °C), kiwango cha juu zaidi. | 32 A |
| Kubadilisha sambamba kwa ajili ya utendaji ulioboreshwa | Yes |
| Volti ya usambazaji iliyokadiriwa katika AC 50 Hz (EF007076) | ['230', '230'] |
| Volti ya usambazaji iliyokadiriwa katika AC 60 Hz (EF007077) | ['120', '120'] |
| Ufanisi katika Vout uliokadiriwa, Iout uliokadiriwa, takriban. | 84 % |
| Upotevu wa nguvu katika kiwango cha Vout, kiwango cha Iout, takriban. | 23 W |
| Ulinzi katika pembejeo ya umeme wa mtandao (IEC 898) | Recommended miniature circuit breaker: from 6 A characteristic C |
| ● katika mzunguko mfupi wakati wa operesheni ya kawaida | 10 A |
| Upana katika idadi ya nafasi za moduli (EF002950) | - |
| Uwezo wa kuzidisha mkondo wa maji katika operesheni ya kawaida | According to the adjusted current regulation 2 ... 10 A |
| Udhibiti wa volteji ya juu zaidi ya muunganisho wa laini ya hisia kwa kila mstari | 0.5 V |
| ● kwenye mzunguko mfupi wa umeme wakati wa kuanzisha kawaida | 10 A |
| Kiwango cha utendaji kulingana na EN ISO 13849-1 (EF007399) | - |
| Idadi ya vitengo vinavyoweza kubadilishwa sambamba kwa ajili ya utendaji ulioboreshwa | 2 |
| Kipengele cha bidhaa cha nyumba ya kufungia kwa ajili ya kupachika kando kwa kando | Yes |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.08.2006 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
