6EP1353-0AA00

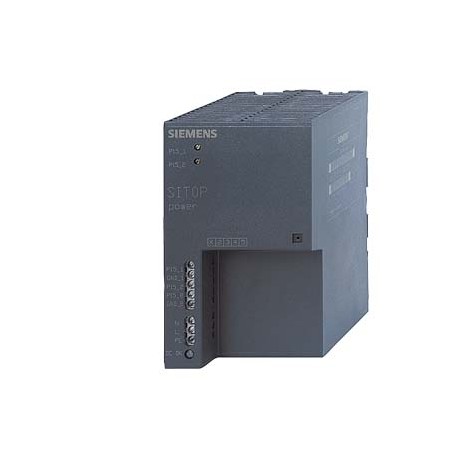

6EP1353-0AA00 SIEMENS SITOP power 15 V dual output Stabilized power supply input: 120-230 V AC output: 2X 15..
$0.00USD
4633 kwenye hisa
Vipimo Muhimu
:Value
EAN:4025515140191
UPC:754554740072
Ingizo:1-phase AC
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Value | |
| EAN | 4025515140191 |
| UPC | 754554740072 |
| Ingizo | 1-phase AC |
| Vidokezo | For this product a successor is available6EP3323-0SA00-0BY0This product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office |
| Matokeo | Controlled, isolated DC voltage |
| Alama ya CE | Yes |
| ● juu | 100 mm |
| — Kumbuka | with natural convection |
| ● Dokezo | +45 ... +60 °C: Derating 2%/K |
| ● kushoto | 0 mm |
| Ishara | - |
| Mrithi | 6EP3323-0SA00-0BY0 |
| ● kulia | 0 mm |
| Msimbo wa Kikundi | R315 |
| I²t, kiwango cha juu. | 3 A²·s |
| ● Matokeo | P15_1, GND_1, GND_2: 1 screw terminal each for 0.5 ... 2.5 mm²; P15_2: 2 screw terminals for 0.5 ... 2.5 mm² |
| ● chini | 100 mm |
| Idhini ya CB | No |
| Miunganisho | |
| Idhini ya FM | - |
| Kundi la Bei | 5ZT |
| ● kiwango cha juu zaidi | 3.5 mA |
| ● kawaida | 3 ms |
| Usakinishaji | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Kipengele cha Chuma | None |
| Masafa ya sasa | 0 ... 3.5 A |
| Ingizo la sasa | |
| Kundi la Bidhaa | 4741 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| ● Msaidizi | - |
| Nambari ya Bidhaa | 85044090 |
| Kinga ya kelele | EN 61000-6-2 |
| Mkondo wa kutoa | |
| Volti ya kutoa | 2 x 15 V DC |
| Familia ya bidhaa | Not available |
| Onyesho la hali | Green LED grün for Vout >10 V (summation display) |
| Mkondo wa kuvuja | |
| Ubaja wa sehemu kuu | at Vin = 120 V, 40 ms at Vin = 187 V |
| Idhini ya baharini | - |
| Uzito Halisi (kg) | 0,740 Kg |
| Tabia ya kuwasha/kuzima | Overshoot of Vout < 3 % |
| Uzito, takriban. | 0.75 kg |
| Masafa ya marekebisho | 14.5 ... 17 V |
| Kina (EF000049) | 125.0 |
| Darasa la ulinzi | Class I |
| Upeo wa mstari uliokadiriwa | 47 ... 63 Hz |
| Nafasi inayohitajika | |
| Kiwango cha volteji cha AC | 93 ... 264 V |
| Ingizo la masafa mapana | Yes |
| Upana (EF000008) | 75.0 |
| ● Ingizo la usambazaji | L1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded |
| Nchi ya asili | Germany |
| Urefu (EF000040) | 125.0 |
| Taarifa nyingine | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Kizuizi cha sasa | 4.9 A |
| Kutengwa kwa Galvaniki | Safety extra low output voltage Vout according to EN 60950-1 |
| LKZ_FDB/ Kitambulisho cha Katalogi | KT10-PG |
| Tarehe ya Kuanza Kutumika ya PLM | Product is cancelled since: 24.04.2020 |
| Kiasi cha Ufungashaji | 1 |
| ● wakati wa kuhifadhi | -40 ... +70 °C |
| Halijoto ya mazingira | |
| Vipimo vya Ufungashaji | 14,00 x 16,00 x 9,00 |
| Maelezo ya Bidhaa | SITOP power 15 V dual output Stabilized power supply input: 120-230 V AC output: 2X 15 V DC/3.5 A |
| Ucheleweshaji wa kuanza, kiwango cha juu zaidi. | 1 s |
| Uingiliaji kati unaotolewa | EN 55011 Class A |
| Ulinzi wa milipuko | - |
| ● wakati wa operesheni | 0 ... 60 °C |
| ● wakati wa usafiri | -40 ... +70 °C |
| Teknolojia ya muunganisho | screw-type terminals |
| Volti iliyokadiriwa Vout DC | 15 V |
| Imeimarishwa (EF005302) | - |
| Maelezo ya Mrithi | SITOP PSU3600 dual stabilized power supply Input: 120-230 V AC Output: 15 V/3,5 A 2x DC two potential-free outputs |
| Idhini ya UL/cUL (CSA) | cULus-Listed (UL 508, CSA C22.2 No. 142), File E179336 |
| Fuse inayoingia iliyojengewa ndani | T 4 A/250 V (not accessible) |
| Kina cha uzio | 125 mm |
| Mpangilio wa volteji ya kutoa | via potentiometer |
| Upinzani wa volteji kupita kiasi | Surge voltage in accordance with EN 61000-6-2 Table 4 |
| Masafa ya mstari yaliyokadiriwa 1 | 50 Hz |
| Masafa ya mstari yaliyokadiriwa 2 | 60 Hz |
| Upana wa kizingiti | 75 mm |
| Urefu wa kizingiti | 125 mm |
| Utoaji wa nguvu (EF003034) | 105.0 |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM410:Product cancellation |
| Ulinzi wa mzunguko mfupi | Electronic shutdown, automatic restart |
| Upana uliojengewa ndani (EF000846) | 75.0 |
| Urefu uliojengewa ndani (EF000332) | 325.0 |
| Kanuni za Udhibiti wa Usafirishaji Nje | ECCN : N / AL : N |
| Toleo la kawaida (EF001126) | true |
| Uvumilivu kamili, tuli ± | 2 % |
| Kutengwa kwa msingi/sekondari | Yes |
| Kazi za zamani za muda wa kawaida | On request |
| Kizuizi cha harmoniki za usambazaji | - |
| Ada ya Ziada kwa Malighafi | None |
| ● katika matokeo 1 Thamani iliyokadiriwa | 3.5 A |
| ● katika matokeo 2 Thamani iliyokadiriwa | 3.5 A |
| Kipimo cha ukubwa wa kifurushi | CM |
| Matumizi ya nguvu (EF000346) | - |
| Ulinzi wa pato kupita kiasi | Yes, according to EN 60950-1 |
| Thamani ya volteji iliyokadiriwa Vin | 120 ... 230 V |
| Nguvu inayotumika hutolewa kawaida | 105 W |
| Vipimo vya Bidhaa (Upana x Upana x Urefu) | Not available |
| Thamani ya sasa iliyokadiriwa Iout imekadiriwa | 3.5 A |
| Inayokinga mzunguko mfupi (EF007332) | true |
| Usawazishaji tuli wa mzigo, takriban. | 0.2 % |
| Kiwango cha ulinzi (EN 60529) | IP20 |
| Kilele cha mabaki ya mawimbi, upeo. | 50 mV |
| Kilele cha mabaki ya ripple, aina. | 20 mV |
| Mkondo wa juu zaidi wa kutoa 1 (EF008284) | 3.5 |
| Mkondo wa juu zaidi wa kutoa 2 (EF008285) | 3.5 |
| Kiwango cha juu cha mkondo wa kutoa 3 (EF008286) | - |
| Kiashiria cha mzigo kupita kiasi/mzunguko mfupi | - |
| ● kwa volteji ya pembejeo iliyokadiriwa 120 V | 1.9 A |
| ● kwa volteji ya pembejeo iliyokadiriwa 230 V | 1.15 A |
| Inawezekana kuweka reli (EF003972) | - |
| Inawezekana kuweka ukuta (EF003973) | - |
| ● katika matokeo 1 katika DC Thamani iliyokadiriwa | 15 V |
| ● katika matokeo 2 katika DC Thamani iliyokadiriwa | 15 V |
| Fidia ya nguvu kuu tuli, takriban. | 0.2 % |
| Ufungaji wa moja kwa moja unawezekana (EF005689) | false |
| Ubaja wa mtandao mkuu katika kiwango cha Iout, kiwango cha chini. | 10 ms; at Vin = 120 V, 40 ms at Vin = 187 V |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Darasa la unyevunyevu kulingana na EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Volti ya kutoa imetulia (EF003092) | - |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 6EP1353-0AA00 |
| Volti ya usambazaji iliyokadiriwa katika DC (EF007078) | - |
| SIL kulingana na IEC 61508 (EF009889) | - |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Aina ya muunganisho wa umeme (EF003961) | Screw connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Volti ya sekondari ya 1 ya kutoa (EF006792) | ['15', '15'] |
| Volti ya pili ya kutoa ya sekondari (EF006797) | - |
| Volti ya pato la sekondari ya tatu (EF006800) | - |
| Volti ya pili inayoweza kubadilishwa (EF007002) | true |
| Inafaa kwa kazi za usalama (EF001597) | - |
| Thamani ya nominella ya sasa ya pato 1 (EF009396) | 3.5 |
| Thamani ya nominella ya sasa ya pato 2 (EF009397) | 3.5 |
| Thamani ya nominella ya sasa ya pato 3 (EF009398) | - |
| Volti ya pato la thamani ya nominella 1 (EF009393) | 15 |
| Volti ya pato la thamani ya nominella 2 (EF009394) | 15 |
| Volti ya pato la thamani ya nominella 3 (EF009395) | - |
| Aina ya volteji ya volteji ya usambazaji (EF002991) | AC |
| Volti ya pato la kazi ya bidhaa inayoweza kubadilishwa | Yes |
| Sifa ya matokeo ya kuzuia mzunguko mfupi | Yes |
| Miiba ya kilele-kilele, upeo. (kipimo data: 20 MHz) | 150 mV |
| Kizuizi cha mkondo wa kuwasha (+25 °C), kiwango cha juu zaidi. | 30 A |
| Kubadilisha sambamba kwa ajili ya utendaji ulioboreshwa | Yes |
| Volti ya usambazaji iliyokadiriwa katika AC 50 Hz (EF007076) | ['230', '230'] |
| Volti ya usambazaji iliyokadiriwa katika AC 60 Hz (EF007077) | ['120', '120'] |
| Muda wa kikomo cha mkondo wa kukimbilia kwa nyuzi joto 25°C | |
| Ufanisi katika Vout uliokadiriwa, Iout uliokadiriwa, takriban. | 80 % |
| Upotevu wa nguvu katika kiwango cha Vout, kiwango cha Iout, takriban. | 27 W |
| Ulinzi katika pembejeo ya umeme wa mtandao (IEC 898) | Recommended miniature circuit breaker: from 10 A characteristic C or from 16 A characteristic B |
| Upana katika idadi ya nafasi za moduli (EF002950) | - |
| Kiwango cha utendaji kulingana na EN ISO 13849-1 (EF007399) | - |
| Idadi ya vitengo vinavyoweza kubadilishwa sambamba kwa ajili ya utendaji ulioboreshwa | 2 |
| Kipengele cha bidhaa cha nyumba ya kufungia kwa ajili ya kupachika kando kwa kando | Yes |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.09.2006 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
