3UG4841-1CA40

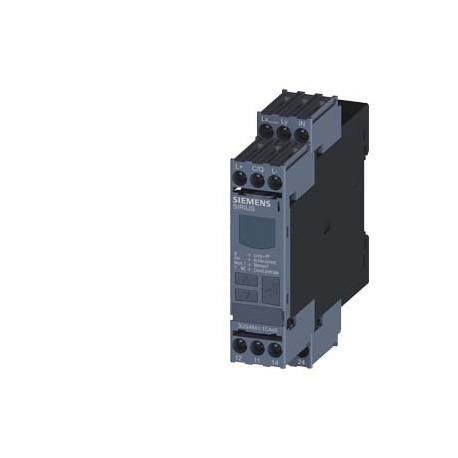

3UG4841-1CA40 SIEMENS Digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2..
$0.00USD
4738 kwenye hisa
Vipimo Muhimu
:Type Test Certificates/Test Report
EAN:4011209895874
UPC:040892871845
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Type Test Certificates/Test Report | |
| EAN | 4011209895874 |
| UPC | 040892871845 |
| ETIM | 5 |
| WAZO | 4 |
| kina | 91 mm |
| upana | 22.5 mm |
| ● 1 | 0.2 ... 10 A |
| ● 2 | 0.2 ... 10 A |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 102 mm |
| ● imara | 1x (0.5 ... 4 mm2), 2x (0.5 ... 2.5 mm2) |
| Msimbo wa Kikundi | R711 |
| ujazo wa data | |
| — juu | 0 mm |
| ● kwenye 24 V | 1 A |
| Uthibitisho | Manufacturer Declaration |
| Tarehe 5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | LAO----- |
| — washambuliaji | 0 mm |
| ● kwenye 125 V | 0.2 A |
| ● kwa 250 V | 0.1 A |
| ● kukwama | 20 ... 14 |
| Kundi la Bidhaa | 5885 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| — nyuma | 0 mm |
| — chini | 0 mm |
| Nambari ya Bidhaa | 85364900 |
| Familia ya bidhaa | Power factor and active current monitoring |
| ilibadilishwa mara ya mwisho: | 1/8/2021 |
| Uzito Halisi (kg) | 0,182 Kg |
| — pembeni | 0 mm |
| ● thamani iliyokadiriwa | 24 ... 24 V |
| Kina (EF000049) | 91.0 |
| Upana (EF000008) | 22.5 |
| mbinu ya kufunga | snap-on mounting |
| kazi ya bidhaa | Active power monitoring relay |
| nafasi inayohitajika | |
| Nchi ya asili | Czech Republic |
| Urefu (EF000040) | 102.0 |
| nafasi ya kupachika | any |
| ● thamani ya awali | 0.75 |
| ● unapoanza | 0 ... 999.9 s |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| kutengwa kwa galvaniki | |
| mkondo unaopimika | 0.2 ... 10 A |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -40 ... +85 °C |
| ● Uwekaji upya wa nje | Yes |
| ● kwa sehemu za moja kwa moja | |
| Vipimo vya Ufungashaji | 40,00 x 97,00 x 111,00 |
| Maelezo ya Bidhaa | Digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A 0vershoot and undershoot ON-delay time Tripping delay time Hysteresis 0.1 to 3.0 A 2 change-over contacts, screw terminal |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 2 |
| uteuzi wa bidhaa | Cos phi monitoring relay with digital setting |
| IP ya darasa la ulinzi | IP20 |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● wakati wa usafiri | -40 ... +85 °C |
| ● thamani kamili | 1.25 |
| Kiwango cha uhamisho wa IO-Link | COM2 (38,4 kBaud) |
| muundo wa onyesho | LCD |
| kuingiliwa kunakofanywa | |
| ● kwa sehemu zilizowekwa ardhini | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| ● kwenye nyaya za AWG imara | 2x (20 ... 14) |
| ● kati ya matokeo | Yes |
| Idhini ya Jumla ya Bidhaa | EMC |
| Volti iliyokadiriwa (EF003977) | ['90', '690'] |
| uainishaji wa aina ya bidhaa | 3UG4 |
| usahihi wa kurudia kiasi | 1 % |
| ● kwa 250 V kwa 50/60 Hz | 3 A |
| ● kwa 400 V kwa 50/60 Hz | 3 A |
| ● kwa thamani iliyokadiriwa ya Hz 50 | 0 ... 0 V |
| ● kwa thamani iliyokadiriwa ya 60 Hz | 0 ... 0 V |
| Azimio la Uzingatiaji | Test Certificates |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● kwenye nyaya za AWG zilizokwama | 2x (20 ... 14) |
| Idadi ya awamu (EF000351) | 1 |
| Kazi za zamani za muda wa kawaida | 2 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| usahihi wa onyesho la kidijitali | +/-1 digit |
| usahihi wa kipimo cha jamaa | 10 % |
| Kipimo cha ukubwa wa kifurushi | MM |
| voltage ya usambazaji wa udhibiti katika AC | |
| voltage ya usambazaji wa udhibiti katika DC | |
| ● kati ya ingizo na matokeo | Yes |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 05/01/2012 |
| thamani iliyokadiriwa ya voltage ya uendeshaji | 90 ... 690 V |
| aina ya muunganisho wa umeme | screw-type terminals |
| Mkondo wa kipimo (EF008522) | ['0.2', '10.0'] |
| muda wa kuchelewa kwa majibu unaoweza kurekebishwa | |
| aina ya mkondo wa ufuatiliaji | AC |
| ● na upachikaji wa kando kwa kando | |
| Na vibanio vinavyoweza kutolewa (EF003340) | true |
| ● awamu ya 1 ya kugundua mkondo wa kupita kiasi | Yes |
| thamani iliyokadiriwa ya voltage ya usambazaji wa udhibiti | 30 ... 18 |
| ● awamu ya 1 ya kugundua mkondo wa chini ya ardhi | Yes |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa | |
| mkondo wa uendeshaji kwa kiwango cha chini cha 17 V | 10 mA |
| Masafa ya uendeshaji yaliyokadiriwa (EF007024) | ['0', '0'] |
| thamani iliyokadiriwa ya masafa ya volteji ya usambazaji | 60 Hz |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3UG4841-1CA40 |
| Aina ya volteji ya kuamilisha (EF008242) | DC |
| ukubwa wa relay ya pato katika AC-15 | |
| ukubwa wa relay ya pato katika DC-13 | |
| Aina ya muunganisho wa umeme (EF003961) | Screw connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| itifaki inaungwa mkono na itifaki ya IO-Link | Yes |
| idadi ya anwani za CO zilizocheleweshwa kubadili | 2 |
| idadi ya anwani za NC zilizocheleweshwa kubadili | 0 |
| idadi ya anwani HAKUNA zilizocheleweshwa kubadilishwa | 0 |
| msimbo wa marejeleo kulingana na IEC 81346-2 | K |
| ● na ukiukaji wa kikomo cha chini au cha juu | 0 ... 999.9 s |
| Muda wa juu zaidi unaoruhusiwa wa nje ya kuchelewa (EF008191) | 999.9 |
| idadi ya nguzo za saketi kuu ya mkondo | 1 |
| Muda wa chini unaoweza kurekebishwa wa kutochelewa (EF008192) | 0 |
| thamani ya majibu ya sasa inayoweza kurekebishwa | |
| ● yenye kiwango cha uchafuzi wa mazingira 2 | 690 V |
| kukaza torque kwa kutumia vituo vya aina ya skrubu | 1.2 ... 0.8 N·m |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV |
| upinzani wa mshtuko kulingana na IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2) |
| aina ya voltage ya voltage ya usambazaji wa udhibiti | DC |
| Thamani ya mpangilio inayoweza kurekebishwa kwa Cos-Phi (EF003418) | ['0.1', '0.99'] |
| masafa ya uendeshaji yenye kiwango cha juu cha kigusa cha 3RT2 | 5 000 1/h |
| upinzani wa mtetemo kulingana na IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['24', '24'] |
| ukubwa wa pato la semiconductor katika hali ya SIO | 200 mA |
| ● kati ya usambazaji wa volteji na saketi zingine | Yes |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 001 |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 10 V/m |
| aina ya usambazaji wa volteji kupitia kiungo kikuu cha pembejeo/matokeo | Yes |
| Muda wa juu zaidi unaoruhusiwa wa kuchelewesha kuwashwa kwa umeme (EF008189) | 999.9 |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 2 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41H / 41H |
| ● kanuni ya mkondo wa wazi/mzunguko uliofungwa inayoweza kurekebishwa | Yes |
| Muda wa chini wa nishati unaoweza kurekebishwa unaoweza kurekebishwa (EF008190) | 0 |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | ['0.0', '0.0'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | ['0.0', '0.0'] |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 0 |
| Nambari ya AWG kama sehemu ya msalaba ya kondakta inayoweza kuunganishwa yenye msimbo | |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 2 000 m |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 0 |
| hysteresis inayoweza kubadilishwa ya kubadili kwa thamani ya mkondo iliyopimwa | 0 ... 3 000 mA |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV |
| mkondo unaoendelea wa kiungo cha fuse cha DIAZED cha relay ya matokeo | 4 A |
| mkondo wa joto wa kipengele cha kubadili chenye kiwango cha juu cha mawasiliano | 5 A |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika DC | |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV |
| uvumilivu wa umeme (mizunguko ya kubadili) katika AC-15 katika 230 V kawaida | 100 000 |
| Muda wa mzunguko wa nukta hadi nukta kati ya kifaa kikuu na kifaa cha IO-Link cha chini kabisa | 10 ms |
| ● ya kiwango cha anwani cha ingizo zenye jumla ya uhamishaji wa mzunguko | 4 byte |
| ● ya kiwango cha anwani cha matokeo yenye jumla ya uhamishaji wa mzunguko | 2 byte |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.05.2012 |
| volteji ya insulation kwa kategoria ya overvoltage III kulingana na IEC 60664 | |
| sehemu ya bidhaa inayoweza kutolewa kwa saketi saidizi na ya udhibiti | Yes |
| masafa ya volteji ya usambazaji kwa thamani iliyokadiriwa ya mzunguko msaidizi na wa udhibiti | 0 ... 0 Hz |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Tris(2-chloroethyl) ... CAS-No. 115-96-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(2-chloroethyl) phosphate (TCEP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Idhini ya Bidhaa kwa JumlaEMCUthibitishoTamko la MtengenezajiTangazo la UzingatiajiVyeti vya MtihaniBaharini / UsafirishajinyingineAina ya ReliVyeti vya Mtihani/Ripoti ya MtihaniCheti Maalum cha MtihaniUthibitishoMtetemo na Mshtuko | General Product Approval |
Maelezo ya Bidhaa
MONIT DIGITAL SURVEILLANCE RELAY. OF COS PHI AND CURRENT FOR IO-LINK 90 TO 690V AC, 0.2 TO 10A MINIMUM LIMITS AND MAXIMUM TIMING DURING START-UP TIMING UNTIL FIRING HYSTERESIS 0.1 TO 3.0A 2 CONMUT., S
