3UG4832-2AA40

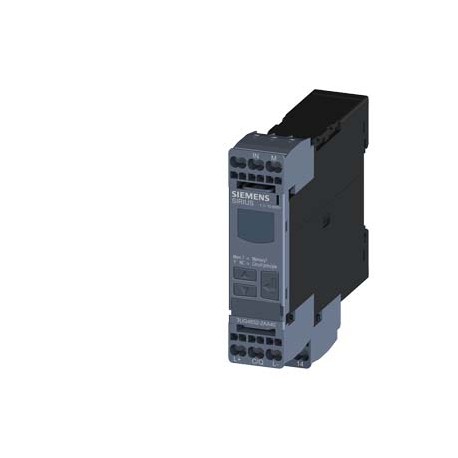

3UG4832-2AA40 SIEMENS Digital monitoring relay Voltage monitoring, 22.5 mm for IO-Link 10...600 V AC/DC Over..
$0.00USD
4909 kwenye hisa
Vipimo Muhimu
:Type Test Certificates/Test Report
EAN:4011209895867
UPC:040892871838
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Type Test Certificates/Test Report | |
| EAN | 4011209895867 |
| UPC | 040892871838 |
| ETIM | 5 |
| WAZO | 4 |
| kina | 91 mm |
| upana | 22.5 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 94 mm |
| ● imara | 2x (0.25 ... 1.5 mm²) |
| Msimbo wa Kikundi | R711 |
| ujazo wa data | |
| — juu | 0 mm |
| Tarehe 5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | LAO----- |
| — washambuliaji | 0 mm |
| ● kukwama | 24 ... 16 |
| Kundi la Bidhaa | 5885 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| — nyuma | 0 mm |
| — chini | 0 mm |
| Nambari ya Bidhaa | 85364900 |
| Familia ya bidhaa | Voltage monitoring |
| ilibadilishwa mara ya mwisho: | 7/1/2021 |
| ● WEKA UPYA kiotomatiki | Yes |
| Uzito Halisi (kg) | 0,147 Kg |
| aina ya volteji | |
| — pembeni | 0 mm |
| ● thamani iliyokadiriwa | 24 V |
| Kina (EF000049) | 91.0 |
| Upana (EF000008) | 22.5 |
| mbinu ya kufunga | snap-on mounting |
| kazi ya bidhaa | Voltage monitoring relay |
| nafasi inayohitajika | |
| Nchi ya asili | Czech Republic |
| Urefu (EF000040) | 94.0 |
| nafasi ya kupachika | any |
| ● thamani ya awali | 0.75 |
| ● unapoanza | 0 ... 999.9 s |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| kutengwa kwa galvaniki | |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | 85 ... -40 °C |
| ● Uwekaji upya wa nje | Yes |
| ● kwa sehemu za moja kwa moja | |
| ● kwa ajili ya ufuatiliaji | AC/DC |
| Vipimo vya Ufungashaji | 34,00 x 99,00 x 111,00 |
| Maelezo ya Bidhaa | Digital monitoring relay Voltage monitoring, 22.5 mm for IO-Link 10...600 V AC/DC Overvoltage and undervoltage Hysteresis 0.1 to 300 V ON-delay time Tripping delay time 1 change-over contact, spring-type connection system |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 2 |
| uteuzi wa bidhaa | Voltage monitoring relay with digital setting |
| IP ya darasa la ulinzi | IP20 |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● wakati wa usafiri | 85 ... -40 °C |
| ● thamani kamili | 1.25 |
| Kiwango cha uhamisho wa IO-Link | COM2 (38,4 kBaud) |
| muundo wa onyesho | LCD |
| kuingiliwa kunakofanywa | |
| ● kwa sehemu zilizowekwa ardhini | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| ● kwenye nyaya za AWG imara | 2x (24 ... 16) |
| Idhini ya Jumla ya Bidhaa | EMC |
| Azimio la Mtengenezaji | |
| voltage inayoweza kupimika kwenye AC | 600 ... 10 V |
| voltage inayoweza kupimika katika DC | 10 ... 600 V |
| uainishaji wa aina ya bidhaa | 3UG4 |
| usahihi wa kurudia kiasi | 1 % |
| Azimio la Uzingatiaji | Test Certificates |
| masafa ya mstari yanayopimika | 500 ... 40 Hz |
| ● kugundua volteji kupita kiasi | Yes |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● kwenye nyaya za AWG zilizokwama | 2x (24 ... 16) |
| ● kugundua undervoltage | Yes |
| Kazi za zamani za muda wa kawaida | 2 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| usahihi wa onyesho la kidijitali | +/-1 digit |
| usahihi wa kipimo cha jamaa | 5 % |
| Kipimo cha ukubwa wa kifurushi | MM |
| voltage ya usambazaji wa udhibiti katika DC | |
| ● kati ya ingizo na matokeo | Yes |
| ● kugundua voltage kupita kiasi DC | Yes |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 05/01/2012 |
| aina ya muunganisho wa umeme | spring-loaded terminals |
| ● kugundua undervoltage DC | Yes |
| muda wa kuchelewa kwa majibu unaoweza kurekebishwa | |
| ● na upachikaji wa kando kwa kando | |
| Volti ya thamani ya majibu (EF008193) | ['10', '600'] |
| Na vibanio vinavyoweza kutolewa (EF003340) | true |
| ● ya volteji ya usambazaji wa udhibiti | DC |
| ● awamu ya 1 ya kugundua volteji kupita kiasi | Yes |
| ● awamu ya 3 ya kugundua volteji kupita kiasi | No |
| ● Utambuzi wa dirisha la volteji DC | Yes |
| muundo wa kutengwa kwa umeme | Protective separation |
| ● awamu ya 1 ya kugundua undervoltage | Yes |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa | |
| mkondo wa uendeshaji kwa kiwango cha chini cha 17 V | 10 mA |
| ● awamu 3 za kugundua undervoltage | No |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3UG4832-2AA40 |
| Aina ya volteji ya kuamilisha (EF008242) | DC |
| Aina ya muunganisho wa umeme (EF003961) | Spring clamp connection |
| Kiwango cha kipimo cha volteji 1 (EF006134) | ['10', '600'] |
| Kiwango cha kipimo cha volteji 2 (EF006135) | ['-', '-'] |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| itifaki inaungwa mkono na itifaki ya IO-Link | Yes |
| ● awamu ya 1 ya utambuzi wa dirisha la volteji | Yes |
| ● awamu ya 3 ya utambuzi wa dirisha la volteji | No |
| idadi ya anwani za CO zilizocheleweshwa kubadili | 1 |
| idadi ya anwani za NC zilizocheleweshwa kubadili | 0 |
| idadi ya anwani HAKUNA zilizocheleweshwa kubadilishwa | 0 |
| msimbo wa marejeleo kulingana na IEC 81346-2 | K |
| ● na ukiukaji wa kikomo cha chini au cha juu | 0 ... 999.9 s |
| Muda wa juu zaidi unaoruhusiwa wa nje ya kuchelewa (EF008191) | 999.9 |
| idadi ya nguzo za saketi kuu ya mkondo | 1 |
| Muda wa chini unaoweza kurekebishwa wa kutochelewa (EF008192) | 0 |
| ● kati ya saketi ya udhibiti na saketi saidizi | 690 V |
| Hysteresis ya awamu tatu inawezekana (EF003395) | false |
| ● yenye kiwango cha uchafuzi wa mazingira 2 | 690 V |
| Hysteresis ya awamu moja inawezekana (EF003394) | true |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV |
| Ina volteji ya DC-over inayofanya kazi (EF003397) | true |
| Volti ya awamu tatu inayowezekana (EF003393) | false |
| Aina ya kipimo cha volteji (EF003399) | AC/DC |
| upinzani wa mshtuko kulingana na IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 2 x (0.25 ... 1.5 mm²) |
| Ina volteji ya DC inayofanya kazi (EF003396) | true |
| Volti ya awamu moja inayowezekana (EF003392) | true |
| Volti ya awamu tatu inawezekana (EF003391) | false |
| Volti ya awamu moja inawezekana (EF003390) | true |
| voltage ya juu inayoruhusiwa kwa ajili ya kutengwa salama | |
| masafa ya uendeshaji yenye kiwango cha juu cha kigusa cha 3RT2 | 5 000 1/h |
| upinzani wa mtetemo kulingana na IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| ● imekwama vizuri bila usindikaji wa sehemu ya msingi | 2x (0.25 ... 1.5 mm²) |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['18', '30'] |
| ukubwa wa pato la semiconductor katika hali ya SIO | 200 mA |
| ● kati ya usambazaji wa volteji na saketi zingine | Yes |
| Ina utendaji kazi wa hysteresis ya voltage ya DC (EF003398) | true |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 002 |
| kupotoka kwa kipimo kinachohusiana na halijoto | 0.1 % |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 10 V/m |
| aina ya usambazaji wa volteji kupitia kiungo kikuu cha pembejeo/matokeo | Yes |
| Muda wa juu zaidi unaoruhusiwa wa kuchelewesha kuwashwa kwa umeme (EF008189) | 999.9 |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 1 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41H / 41H |
| ● kanuni ya mkondo wa wazi/mzunguko uliofungwa inayoweza kurekebishwa | Yes |
| Muda wa chini wa nishati unaoweza kurekebishwa unaoweza kurekebishwa (EF008190) | 0 |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | - |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | - |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 0 |
| Nambari ya AWG kama sehemu ya msalaba ya kondakta inayoweza kuunganishwa yenye msimbo | |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 2 000 m |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 0 |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV |
| mkondo unaoendelea wa kiungo cha fuse cha DIAZED cha relay ya matokeo | 4 A |
| mkondo wa joto wa kipengele cha kubadili chenye kiwango cha juu cha mawasiliano | 5 A |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika DC | |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV |
| uvumilivu wa umeme (mizunguko ya kubadili) katika AC-15 katika 230 V kawaida | 100 000 |
| Muda wa mzunguko wa nukta hadi nukta kati ya kifaa kikuu na kifaa cha IO-Link cha chini kabisa | 10 ms |
| ● ya kiwango cha anwani cha ingizo zenye jumla ya uhamishaji wa mzunguko | 4 byte |
| ● ya kiwango cha anwani cha matokeo yenye jumla ya uhamishaji wa mzunguko | 2 byte |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.05.2012 |
| volteji ya insulation kwa kategoria ya overvoltage III kulingana na IEC 60664 | |
| sehemu ya bidhaa inayoweza kutolewa kwa saketi saidizi na ya udhibiti | Yes |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Tris(2-chloroethyl) ... CAS-No. 115-96-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(2-chloroethyl) phosphate (TCEP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Idhini ya Bidhaa kwa JumlaEMCAzimio la MtengenezajiUthibitishoTangazo la UzingatiajiVyeti vya MtihaniBaharini / UsafirishajinyingineAina ya ReliVyeti vya Mtihani/Ripoti ya MtihaniCheti Maalum cha MtihaniUthibitishoMtetemo na Mshtuko | General Product Approval |
Maelezo ya Bidhaa
DIGITAL SURVEILLANCE RELAY VOLTAGE MONITORING, 22.5MM FOR IO-LINK 10 TO 600V AC/DC SUBTENSION AND HYSTERESIS SURGE 0.1 TO 300V TIMING DURING START-UP TO FIRING 1 SWITCH., SPRING TERMINALS
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Manufacturer Declaration
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
