3UF7330-1AB00-0

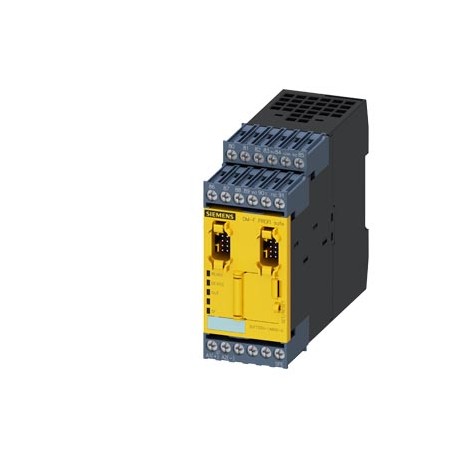

3UF7330-1AB00-0 SIEMENS Fail-safe digital module DM-F PROFIsafe, for fail-safe shutdown via bus/PROFIsafe, U..
$0.00USD
3655 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209841772
UPC:040892789874
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209841772 |
| UPC | 040892789874 |
| ETIM | 5 |
| WAZO | 4 |
| kina | 124 mm |
| upana | 45 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 106 mm |
| ● juu | 40 mm |
| kategoria | |
| ● kushoto | 0 mm |
| ● kulia | 0 mm |
| ● imara | 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²) |
| Msimbo wa Kikundi | R711 |
| hali salama | Safety outputs switched off |
| ● chini | 40 mm |
| ● kwenye 24 V | 3 A |
| ● kwenye 60 V | 0.55 A |
| ● kiwango cha juu zaidi | 80 ms |
| ● kawaida | 40 ms |
| Tarehe 5/7/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | None |
| ● kwenye 120 V | 3 A |
| ● kwenye 125 V | 0.22 A |
| ● kwenye 240 V | 1.5 A |
| ● kwa 250 V | 0.11 A |
| Kundi la Bidhaa | 5836 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| muda wa majibu | |
| ● Kiwango cha juu 1 | 2 000 m |
| ● Upeo wa juu 2 | 3 000 m; max. +50 °C (no protective separation) |
| ● Upeo wa juu wa 3 | 4 000 m; max. +40 °C (no protective separation) |
| Nambari ya Bidhaa | 85371098 |
| Familia ya bidhaa | SIMOCODE pro 3UF7 motor management and control devices |
| ilibadilishwa mara ya mwisho: | 4/8/2022 |
| Uzito Halisi (kg) | 0,362 Kg |
| muundo wa pembejeo | |
| ● thamani iliyokadiriwa | 24 V |
| Mfano (EF000010) | Digital module |
| mbinu ya kufunga | screw and snap-on mounting |
| idadi ya pembejeo | 4 |
| kazi ya bidhaa | |
| nafasi inayohitajika | |
| ● matokeo ya reli | Yes |
| Nchi ya asili | Germany |
| Baharini / Usafirishaji | other |
| nafasi ya kupachika | any |
| idadi ya matokeo | 2 |
| sehemu ya bidhaa | |
| ● ingizo la kidijitali | Yes |
| ● thamani ya awali | 0.8 |
| ● swichi ya usalama | No |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| kiwango cha kushindwa [FIT] | |
| jina la chapa ya bidhaa | SIRIUS |
| tabia ya kubadilisha | monostable |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| ● pembejeo ya maoni | Yes |
| Vipimo vya Ufungashaji | 52,50 x 133,00 x 133,00 |
| Maelezo ya Bidhaa | Fail-safe digital module DM-F PROFIsafe, for fail-safe shutdown via bus/PROFIsafe, Us: 24 V DC, 2 relay enabling circuits, 2 relay outputs, 3 inputs, maximum achievable SIL IEC 61508: 3, maximum achievable PL ISO 13849-1: E |
| halijoto ya mazingira | |
| uaminifu wa mguso | 0.1 million operating cycles (AC15, 230 V, 2 A) |
| kilele cha mkondo wa ndani | |
| uteuzi wa bidhaa | Fail-safe digital module |
| IP ya darasa la ulinzi | IP20 |
| kufaa kwa matumizi | |
| ● kuanza kiotomatiki | No |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● wakati wa usafiri | -40 ... +80 °C |
| ● thamani kamili | 1.2 |
| ● ufuatiliaji wa vali | No |
| nguvu inayotumika inayotumika | 4 W |
| muundo wa bidhaa | for fail-safe shutdown |
| toleo la ingizo la kidijitali | |
| kuingiliwa kunakofanywa | |
| kategoria ya mazingira | |
| kiwango cha utendaji (PL) | |
| ● kampuni mpya inayofuatiliwa | No |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| idadi ya ingizo za analogi | 0 |
| ● kwenye nyaya za AWG imara | 1x (20 ... 12), 2x (20 ... 14) |
| Idhini ya Jumla ya Bidhaa | EMC |
| idadi ya matokeo ya analogi | 0 |
| idadi ya pembejeo za kidijitali | 3 |
| uainishaji wa aina ya bidhaa | DM-FP |
| ● kulingana na EN 62061 | 3 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● Kipengele cha KUZIMA DHARURA | No |
| ● kulingana na IEC 61508 | 3 |
| ● kwenye nyaya za AWG zilizokwama | 1x (20 ... 14), 2x (20 ... 16) |
| ● ufuatiliaji wa safu nyepesi | No |
| ● pembejeo zinazoweza kubadilishwa kulingana na vigezo | Yes |
| Kikomo cha Madai cha SIL (mfumo mdogo) | |
| Kazi za zamani za muda wa kawaida | 1 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| upeo wa masafa ya uendeshaji | 360 1/h |
| ● katika kesi ya kushindwa kwa OFDT | 200 ms |
| ● katika hali isiyo na dosari WCDT | 150 ms |
| ● matokeo yanayoweza kupimwa | Yes |
| ● saketi zinazohusiana na usalama | No |
| Kipimo cha ukubwa wa kifurushi | MM |
| Kiwango cha Uadilifu wa Usalama (SIL) | |
| voltage ya usambazaji wa udhibiti katika DC | |
| aina ya sifa ya kuingiza | Type 2 in accordance with EN 61131-2 |
| ● ufuatiliaji wa kizuizi cha mwanga | No |
| ● aina ya 1 ya ac. kwa IEC 61131 | No |
| ● aina ya 2 ya ac. kwa IEC 61131 | Yes |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 05/01/2012 |
| Kitendakazi cha kubadilisha (EF000189) | Mono stable |
| ● ufuatiliaji wa kitambuzi cha kugusa | No |
| Kwa matumizi katika maeneo hatarishi | Functional Safety/Safety of Machinery |
| ● ufuatiliaji wa swichi ya nafasi | No |
| ● ufuatiliaji wa mlango wa kinga | No |
| muda wa kilele cha mkondo wa ndani | |
| idadi ya matokeo ya semiconductor | 0 |
| ● kulingana na EN ISO 13849-1 | e |
| ● ufuatiliaji wa swichi ya ukaribu | No |
| Idadi ya ingizo za binary (EF003817) | 3 |
| muundo wa kutengwa kwa umeme | Protective separation in accordance with IEC 60947-1 for all circuits, up to installation altitude of 2000 m |
| unyevunyevu wa jamaa wakati wa operesheni | 5 ... 95 % |
| PROFI muda wa ufuatiliaji salama F-WD-Time | 250 ms |
| kipengele cha bidhaa hakina mzunguko mtambuka | Yes |
| ● pembejeo la muunganisho wa kipimajoto | No |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Idadi ya ingizo za analogi (EF001994) | 0 |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 4 000 V |
| ● Ufuatiliaji wa mzunguko wa DHARURA | No |
| ● pembejeo kwa ajili ya kugundua hitilafu ya ardhi | No |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3UF7330-1AB00-0 |
| Kinga ya EMC kulingana na IEC 60947-1 | corresponds to degree of severity 3 |
| Idadi ya matokeo ya analogi (EF001995) | 0 |
| Aina ya volteji ya kuamilisha (EF008242) | DC |
| kategoria ya kusimamishwa kulingana na EN 60204-1 | 0 |
| ● ufuatiliaji wa mkeka unaozingatia shinikizo | No |
| ● yenye uwezo wa marejeleo ya pamoja | 4 |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Idadi ya matokeo ya kielektroniki (EF006929) | - |
| msimbo wa marejeleo kulingana na IEC 81346-2 | F |
| urefu wa waya kwa mawimbi ya dijitali upeo | 300 m |
| itifaki inaungwa mkono itifaki ya PROFIsafe | Yes |
| ● pembejeo kwa ajili ya vitambuzi vya halijoto vya analogi | No |
| Kiwango cha wastani cha chanjo ya uchunguzi (DCavg) | 99 % |
| sifa ya mawasiliano ya matokeo ya relay | Fail-safe NO contacts |
| kinga ya mguso dhidi ya mshtuko wa umeme | finger-safe |
| ● kama kipengele cha kubadili kilichoathiriwa na mguso | 2 |
| ● wakati wa kuhifadhi kulingana na IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| Ingizo la kugundua hitilafu ya ardhi (EF007115) | false |
| Ingizo la muunganisho wa thermistor (EF007116) | false |
| Idadi ya matokeo, pamoja na mguso (EF006936) | 2 |
| toleo la kuingiza data lenye kipengele kinachohusiana na usalama | 3 sensor inputs 24 V DC, 1 feedback circuit input |
| aina ya kifaa cha usalama kulingana na IEC 61508-2 | Type B |
| kukaza torque kwa kutumia vituo vya aina ya skrubu | 0.8 ... 1.2 N·m |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| ● wakati wa operesheni kulingana na IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● wakati wa usafiri kulingana na IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| ● ufuatiliaji wa swichi unaoendeshwa kwa sumaku | No |
| muda wa kubana iwapo umeme utakatika | 60 ms |
| upinzani wa mshtuko kulingana na IEC 60068-2-27 | 15g / 11 ms |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| aina ya voltage ya voltage ya usambazaji wa udhibiti | DC |
| uvumilivu wa umeme (mizunguko ya kubadili) kawaida | 100 000 |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | |
| upinzani wa mtetemo kulingana na IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g |
| Ingizo la kihisi halijoto cha analogi (EF007114) | false |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['24', '24'] |
| ● ufuatiliaji wa kifaa cha ulinzi wa kielektroniki cha opto-elektroniki | No |
| EMC ilitoa mwingiliano kulingana na IEC 60947-1 | class A |
| ● ufuatiliaji wa swichi unaoendeshwa kwa sumaku NC-NC | No |
| ● ufuatiliaji wa swichi unaoendeshwa kwa sumaku NC-NO | No |
| muda wa kuchelewesha kurudi nyuma iwapo umeme utashindwa | |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 000 |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 10 V/m |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 42J / 42J |
| ukadiriaji wa mawasiliano ya anwani saidizi kulingana na UL | B300 / R300 |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | - |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | - |
| torque ya kukaza [lbf·in] kwa kutumia vituo vya aina ya skrubu | 7 ... 10.3 lbf·in |
| ● kwa kiwango cha hitilafu hatari zinazotambulika (λdd) | 897.34 FIT |
| uzalishaji wa kuingiliwa kwa HF kulingana na CISPR11 | corresponds to degree of severity A |
| utoaji wa kuingiliwa kwa HF unaoelekea shambani kulingana na CISPR11 | corresponds to degree of severity A |
| ● kwa kiwango cha hitilafu hatari zisizotambulika (λdu) | 7.37 FIT |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 1 kV |
| utenganishaji wa kinga (kielektroniki) kulingana na IEC 60947-1 | All circuits in SIMOCODE pro are with protective separation, i.e. they are designed with doubled creepage paths and clearances. NOTICE: The information in the "Protective Separation" test report, No. 2668, must be observed. |
| mkondo wa uwezo wa kubadili wa saketi za kuwezesha reli katika AC-15 | |
| mkondo wa uwezo wa kubadili wa saketi za kuwezesha reli katika DC-13 | |
| ● kutokana na mionzi ya masafa ya juu kulingana na IEC 61000-4-6 | 10 V |
| voltage ya insulation yenye kiwango cha uchafuzi 3 kwa thamani iliyokadiriwa na AC | 300 V |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika DC | |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 0.5 kV |
| cheti cha ustahiki kulingana na maagizo ya ATEX 2014/34/EU | BVS 06 ATEX F001 |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.05.2012 |
| sehemu ya bidhaa inayoweza kutolewa kwa saketi saidizi na ya udhibiti | Yes |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| kundi na kategoria ya kifaa cha mlipuko kulingana na maagizo ya ATEX 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| mkondo wa uwezo wa kubadili wa mawasiliano ya NO ya matokeo ya relay katika AC-15 | |
| mkondo wa uwezo wa kubadili wa mawasiliano ya NO ya matokeo ya relay katika DC-13 | |
| Aina ya muunganisho wa umeme kwa ajili ya saketi ya mkondo msaidizi na udhibiti (EF006979) | Screw connection |
| muundo wa kiungo cha fuse kwa ajili ya ulinzi wa saketi fupi za saketi zinazowezesha relay unahitajika | gL/gG: 4 A |
| ● kama kipengele cha kubadili kinachoathiriwa na mguso kama vile HAKUNA mguso wa papo hapo unaohusiana na usalama wa mguso | 2 |
| Idhini ya Bidhaa kwa JumlaEMCUthibitishoInatumika katika maeneo hatariUsalama wa Utendaji wa MashineTamko la UzingatiajiVyeti vya MtihaniAina ya Baharini / UsafirishajiCheti cha MtihaniAinaVyeti vya Mtihani/Ripoti ya MtihaniBaharini / UsafirishajinyingineUthibitishoPROFIUthibitisho salama | General Product Approval |
