3SU1400-1LK10-3BA1

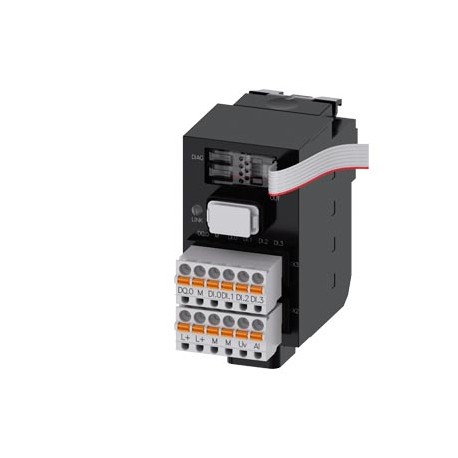

3SU1400-1LK10-3BA1 SIEMENS SIRIUS ACT with PROFINET: Standard interface module 24 V DC Spring-type terminal,..
$0.00USD
4376 kwenye hisa
Vipimo Muhimu
:VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024
EAN:4047621069357
UPC:804766960321
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| VersionClassificationeClass627-37-92-13eClass7.127-37-92-13eClass827-37-92-13eClass927-37-92-13eClass9.127-37-92-13ETIM5EC002024ETIM6EC002024ETIM7EC002024ETIM8EC002024 | |
| EAN | 4047621069357 |
| UPC | 804766960321 |
| ETIM | 5 |
| kina | 72.1 mm |
| upana | 40 mm |
| Darasa la mtandaoni | 6 |
| urefu | 80.1 mm |
| ● IRT | No |
| ● MRP | No |
| ● LLDP | Yes |
| ● MRPD | No |
| ● SNMP | Yes |
| Thamani ya I2t | 0.008 A²·s |
| ● imara | 0.2 ... 2.5 mm² |
| Msimbo wa Kikundi | R711 |
| ● TCP/IP | Yes |
| ● kengele | Yes |
| ● kiwango cha juu zaidi | 150 mA |
| Uthibitisho | |
| Tarehe 5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | None |
| ● Data ya I&M | Yes; I&M0 ... I&M3 |
| Kundi la Bidhaa | 5453 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85371098 |
| Familia ya bidhaa | Modules |
| ilibadilishwa mara ya mwisho: | 1/12/2021 |
| Uzito Halisi (kg) | 0,157 Kg |
| toleo la kuonyesha | |
| aina ya volteji | |
| ● thamani iliyokadiriwa | 28 mA |
| mkondo unaotumika | |
| toleo la programu dhibiti | 2.1.1 |
| toleo la maunzi | 1 |
| kazi ya bidhaa | |
| Nchi ya asili | Czech Republic |
| Vyeti vya Mtihani | other |
| ● Kuvuka kiotomatiki | Yes |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| muundo wa kiolesura 1 | |
| jina la chapa ya bidhaa | SIRIUS ACT |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| ● yanayohusiana na usalama | 0 |
| Vipimo vya Ufungashaji | 100,00 x 115,00 x 60,00 |
| Maelezo ya Bidhaa | SIRIUS ACT with PROFINET: standard interface module 24 V DC, spring-loaded terminal, front plate mounting 1 to 20 terminal modules connectable with additional 1 DQ + 4 DI + 1 AI |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 3 |
| uteuzi wa bidhaa | Interface module for PROFINET |
| IP ya darasa la ulinzi | IP20 |
| ● Majadiliano ya Kiotomatiki | Yes |
| ● RJ45 (Ethaneti) | Yes |
| kiwango cha juu cha maisha ya huduma | 20 y |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● hali ya isochronous | No |
| itifaki inaungwa mkono | |
| ● swichi iliyojumuishwa | No |
| ● imara au imekwama | 0.2 ... 2.5 mm² |
| ● kiungo cha hali ya Tx/Rx | Yes |
| upeo wa mkondo wa kukimbilia | 16 A |
| upotevu wa nguvu [W] kawaida | 0.6 W |
| ● Kiolesura cha ethaneti | Yes; for Ethernet services |
| ● Itifaki ya PROFIsafe | No |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| muundo wa kiolesura | |
| ● kampuni mpya iliyopewa kipaumbele | No |
| Idhini ya Jumla ya Bidhaa | Declaration of Conformity |
| idadi ya pembejeo za kidijitali | |
| uainishaji wa aina ya bidhaa | 3SU1 |
| ● Itifaki ya PROFINET IO | Yes |
| ● kazi ya uchunguzi | Yes |
| ● ya volteji ya kuingiza | DC |
| ● inasaidia PROFIenergy | No |
| idadi ya matokeo ya kidijitali | 0 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● inasaidia Kifaa Kilichoshirikiwa | No |
| Kazi za zamani za muda wa kawaida | 25 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| ● Kiolesura cha Ethaneti ya Haraka | Yes; PROFINET with 100 Mbps |
| Kipimo cha ukubwa wa kifurushi | MM |
| ● ya voltage ya uendeshaji | DC |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 08/24/2018 |
| thamani iliyokadiriwa ya voltage ya uendeshaji | 20.4 V |
| huduma kama kifaa cha PROFINET IO | |
| aina ya muunganisho wa umeme | spring-loaded terminals |
| thamani iliyokadiriwa ya voltage ya insulation | 30 V |
| ● ulinzi wa polari ya nyuma | Yes |
| idadi ya vitengo kwa kila raki ya juu zaidi | 20 |
| voltage ya usambazaji kwa thamani iliyokadiriwa ya DC | 24 V |
| huduma ya mawasiliano ya wazi ya IE | |
| Aina Vyeti vya Mtihani/Ripoti ya Mtihani | Confirmation |
| ● imara na usindikaji wa sehemu ya msingi | 0.2 ... 2.5 mm² |
| kitendakazi cha usanidi chenye seti ya data | Yes |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa | |
| idadi ya milango kwenye kiolesura cha kwanza | 1 |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 0.8 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SU1400-1LK10-3BA1 |
| software version with STEP 7 required | TIA Portal V13 SP1 |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| msimbo wa marejeleo kulingana na IEC 81346-2 | K |
| darasa la mzigo wa mtandao kulingana na PROFINET | 1 |
| idadi ya moduli ndogo kwa kila kituo cha juu | 24 |
| hali ya upitishaji kwa Ethaneti ya Viwanda | PROFINET with 100 Mbps full duplex (100BASE-TX) |
| idadi ya violesura kulingana na PROFINET | 1 |
| kazi ya bidhaa kwenye kiolesura cha Ethernet | |
| Toleo/marekebisho ya GSD yenye PROFINET yanahitajika | V2.3 |
| njia ya kufunga ya moduli na vifaa | Front plate mounting |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 2.5 mm² |
| ● imekwama vizuri bila usindikaji wa sehemu ya msingi | 0.2 ... 2.5 mm² |
| Aina ya vifaa vya umeme/vipuri (EF005722) | - |
| Aina ya nyongeza ya mitambo/vipuri (EF005994) | - |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41J / 41J |
| Nambari ya AWG kama sehemu ya msalaba ya kondakta inayoweza kuunganishwa yenye msimbo | 26 ... 12 |
| itifaki katika itifaki ya 1 ya urejeshaji wa vyombo vya habari vya kiolesura | No |
| Toleo la programu lenye STEP 7 katika Lango la TIA linahitajika | TIA portal V13 |
| kazi ya bidhaa kwenye kifaa cha PROFINET IO cha kiolesura cha kwanza | Yes |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa kwa mawasiliano saidizi | |
| kutengwa kwa galvanic kati ya PROFINET na saketi zingine zote | Yes |
| vipimo vya mtihani wa Kiwango cha 1 cha Usalama kulingana na PROFINET | Resilient to network loading |
| ● kwa ajili ya kazi ya uchunguzi: LED ya nguvu ya ufuatiliaji wa volteji ya ugavi | Yes |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 24.08.2018 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| alama ya ulinzi wa mlipuko kwa usalama wa ndani wa vifaa vinavyohusiana EEx ia | No |
| alama ya ulinzi wa mlipuko kwa usalama wa ndani wa vifaa vinavyohusiana EEx ib | No |
| Kipengele cha bidhaa cha kifaa cha PROFINET IO kinaungwa mkono na upungufu wa mfumo wa PROFINET | No |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateTest CertificatesotherType Test Certificates/Test ReportConfirmationPROFINET-Certification | General Product Approval |
