3SU1400-1AA10-3LA0

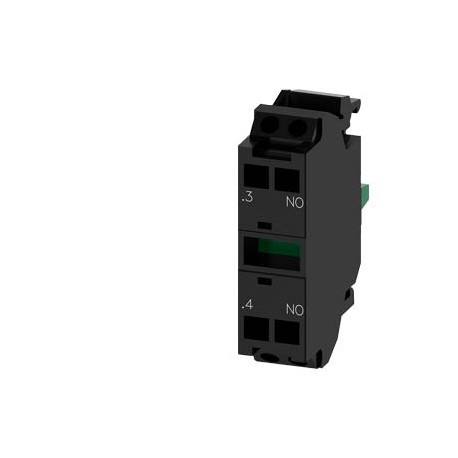

3SU1400-1AA10-3LA0 SIEMENS Contact module with 1 contact element, 1 NO, gold-plated contacts, spring-type te..
$0.00USD
4174 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209965065
UPC:804766359729
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209965065 |
| UPC | 804766359729 |
| ETIM | 5 |
| kina | 27.7 mm |
| upana | 9.8 mm |
| Darasa la mtandaoni | 6 |
| urefu | 36 mm |
| ● katika AC | |
| Msimbo wa Kikundi | R711 |
| Kipengele cha Chuma | LBO----- |
| Tarehe 5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kundi la Bidhaa | 5452 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| muundo wa soketi | other |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | Modules |
| ilibadilishwa mara ya mwisho: | 3/9/2022 |
| Uzito Halisi (kg) | 0,010 Kg |
| mkondo wa joto | 10 A |
| aina ya volteji | |
| Mfano (EF000010) | - |
| mbinu ya kufunga | front plate mounting |
| upinzani wa mshtuko | |
| Nchi ya asili | Germany |
| Baharini / Usafirishaji | other |
| volteji ya uendeshaji | |
| ● kwenye nyaya za AWG | 2x (24 ... 16) |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS ACT |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| Vipimo vya Ufungashaji | 95,00 x 15,00 x 20,00 |
| Maelezo ya Bidhaa | Contact module with 1 contact element, 1 NO, gold-plated contacts, spring-type terminal, for front plate mounting |
| halijoto ya mazingira | |
| uaminifu wa mguso | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| kiwango cha uchafuzi wa mazingira | 3 |
| uteuzi wa bidhaa | Contact module |
| IP ya darasa la ulinzi | |
| ● mawasiliano ya kuongoza | 0 |
| ● kifuniko cha chuma | Yes |
| ● ya kituo | IP20 |
| upinzani wa mtetemo | |
| ● wakati wa operesheni | -25 ... +70 °C |
| ● ya sehemu iliyofungwa | IP40 |
| ● kwa thamani iliyokadiriwa na DC | 5 ... 500 V |
| ● ubadilishaji unaochelewa | 0 |
| ● kifuniko cha plastiki | Yes |
| Kishikilia taa (EF000048) | - |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| ● kwa thamani iliyokadiriwa ya 24 V | 10 A |
| ● kwa thamani iliyokadiriwa ya 48 V | 10 A |
| Idhini ya Jumla ya Bidhaa | Declaration of Conformity |
| uainishaji wa aina ya bidhaa | 3SU1 |
| — kwa thamani iliyokadiriwa ya 50 Hz | 5 ... 500 V |
| — kwa thamani iliyokadiriwa ya 60 Hz | 5 ... 500 V |
| ● kwa thamani iliyokadiriwa ya 110 V | 10 A |
| ● kwa thamani iliyokadiriwa ya 230 V | 8 A |
| ● kwa thamani iliyokadiriwa ya 400 V | 8 A |
| ● kwa thamani iliyokadiriwa ya 500 V | 1.4 A |
| ● ya volteji ya kuingiza | AC/DC |
| Azimio la Uzingatiaji | Test Certificates |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Mbinu ya kupachika (EF000003) | - |
| Kazi za zamani za muda wa kawaida | 75 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| upeo wa masafa ya uendeshaji | 3 600 1/h |
| kufaa kwa ujumuishaji | |
| Kipimo cha ukubwa wa kifurushi | MM |
| Azimio la Uzingatiaji la Uingereza | Type Test Certificates/Test Report |
| mkondo wa uendeshaji katika AC-12 | |
| mkondo wa uendeshaji katika AC-15 | |
| mkondo wa uendeshaji katika DC-12 | |
| mkondo wa uendeshaji katika DC-13 | |
| ● ya voltage ya uendeshaji | AC/DC |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 10/01/2014 |
| aina ya muunganisho wa umeme | spring-loaded terminals |
| thamani iliyokadiriwa ya voltage ya insulation | 500 V |
| ● kulingana na IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● ya moduli na vifaa | Front plate mounting |
| ● kulingana na IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| ufunguzi chanya wa utendaji kazi wa bidhaa | No |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SU1400-1AA10-3LA0 |
| ● imara bila usindikaji wa mwisho wa msingi | 2x (0.25 ... 1.5 mm²) |
| Aina ya muunganisho wa umeme (EF003961) | Spring clamp connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| msimbo wa marejeleo kulingana na IEC 81346-2 | S |
| Idadi ya swichi za ishara ya hitilafu (EF007613) | - |
| muundo wa mawasiliano ya mawasiliano saidizi | Gold-plated |
| idadi ya anwani za NC kwa anwani za usaidizi | 0 |
| idadi ya anwani HAKUNA kwa anwani saidizi | 1 |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 2x (0.25 ... 0.75 mm²) |
| mkondo unaoendelea wa sifa ya C MCB | 10 A |
| uvumilivu wa umeme (mizunguko ya kubadili) kawaida | 10 000 000 |
| ● imekwama vizuri bila usindikaji wa sehemu ya msingi | 2x (0.25 ... 1.5 mm²) |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 000 |
| ● kwa matumizi ya reli kulingana na EN 61373 | Category 1, Class B |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 0 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41J / 41J |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 230 V (EF001385) | 6 |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 1 |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 0 |
| kategoria ya mazingira wakati wa operesheni kulingana na IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.10.2014 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Idhini ya Jumla ya BidhaaTangazo la UzingatiajiUthibitisho wa KCDTangazo la UzingatiajiVyeti vya MtihaniBaharini / UsafirishajiAzimio la UzingatiajiAina ya MtihaniVyeti/Ripoti ya MtihaniCheti Maalum cha MtihaniBaharini / UsafirishajinyingineUthibitisho | General Product Approval |
