3SU1100-0BB20-1CA0

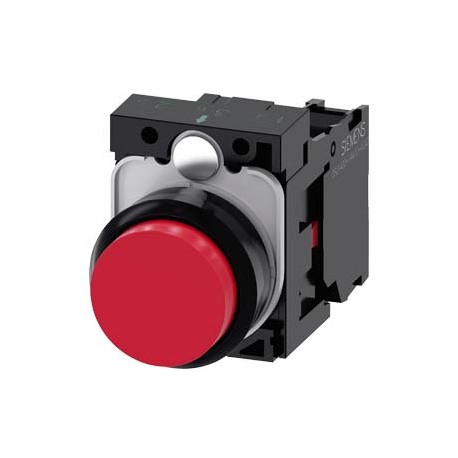

3SU1100-0BB20-1CA0 SIEMENS Pushbutton, 22 mm, round, plastic, red, pushbutton, raised, momentary contact typ..
$0.00USD
3593 kwenye hisa
Vipimo Muhimu
:
EAN:4011209956841
UPC:804766070310
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| EAN | 4011209956841 |
| UPC | 804766070310 |
| ETIM | 5 |
| WAZO | 4 |
| upana | 30 mm |
| UNSPSC | 15 |
| Darasa la mtandaoni | 6 |
| urefu | 40 mm |
| ● katika AC | |
| Msimbo wa Kikundi | R711 |
| Kipengele cha Chuma | LAO----- |
| mstari wa bidhaa | Plastic, black, 22 mm |
| Tarehe 5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kundi la Bidhaa | 5452 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | Actuators and indicators, 22 mm, round, plastic, black |
| ilibadilishwa mara ya mwisho: | 1/26/2022 |
| Uzito Halisi (kg) | 0,051 Kg |
| urefu wa kupachika | 16.2 mm |
| mkondo wa joto | 10 A |
| mbinu ya kufunga | front plate mounting |
| upinzani wa mshtuko | |
| Nchi ya asili | Germany |
| Baharini / Usafirishaji | other |
| kipenyo cha kupachika | 22.3 mm |
| volteji ya uendeshaji | |
| ● kwenye nyaya za AWG | 2x (18 ... 14) |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| kina cha usakinishaji | 49.7 mm |
| upana wa usakinishaji | 29.5 mm |
| jina la chapa ya bidhaa | SIRIUS ACT |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| Vipimo vya Ufungashaji | 50,00 x 100,00 x 50,00 |
| Maelezo ya Bidhaa | Pushbutton, 22 mm, round, plastic, red, pushbutton, raised, momentary contact type, with holder 1 NC, screw terminal |
| halijoto ya mazingira | |
| uaminifu wa mguso | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| kiwango cha uchafuzi wa mazingira | 3 |
| uteuzi wa bidhaa | Pushbuttons |
| IP ya darasa la ulinzi | IP66, IP67, IP69(IP69K) |
| ● ya kituo | IP20 |
| upinzani wa mtetemo | |
| ● wakati wa operesheni | -25 ... +70 °C |
| muundo wa bidhaa | Complete unit |
| idadi ya moduli za LED | 0 |
| ● kwa thamani iliyokadiriwa na DC | 5 ... 500 V |
| nyenzo ya kishikilia | Plastic |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| rangi ya pete ya mbele | black |
| Kitufe cha rangi (EF000190) | Red |
| Idhini ya Jumla ya Bidhaa | Declaration of Conformity |
| Kipenyo cha shimo (EF000079) | 22.3 |
| Kurudi kwa majira ya kuchipua (EF001407) | FALSE |
| Upana wa ufunguzi (EF004565) | 29.5 |
| muundo wa pete ya mbele | Standard |
| idadi ya pointi za amri | 1 |
| uainishaji wa aina ya bidhaa | 3SU1 |
| — kwa thamani iliyokadiriwa ya 50 Hz | 5 ... 500 V |
| — kwa thamani iliyokadiriwa ya 60 Hz | 5 ... 500 V |
| Azimio la Uzingatiaji | Test Certificates |
| Ufunguzi wa urefu (EF004778) | 16.2 |
| Aina ya kitufe (EF001546) | Mushroom |
| idadi ya moduli za mawasiliano | 1 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Na pete ya mbele (EF006014) | true |
| nyenzo ya pete ya mbele | plastic |
| ● ya mmiliki aliyetolewa | 3SU1550-0AA10-0AA0 |
| Kazi za zamani za muda wa kawaida | 55 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| upeo wa masafa ya uendeshaji | 3 600 1/h |
| Pete ya mbele yenye rangi (EF002429) | Black |
| Kipimo cha ukubwa wa kifurushi | MM |
| Azimio la Uzingatiaji la Uingereza | Special Test Certificate |
| pete ya mbele ya sehemu ya bidhaa | Yes |
| ● ya kiendeshi kilichotolewa | 3SU1000-0BB20-0AA0 |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 10/01/2014 |
| nambari ya makala ya mtengenezaji | |
| aina ya muunganisho wa umeme | screw-type terminals |
| Pete ya mbele ya nyenzo (EF005972) | Plastic |
| Taa ya volteji ya usambazaji (EF006522) | - |
| rangi ya kipengele kinachoendesha | red |
| thamani iliyokadiriwa ya voltage ya insulation | 500 V |
| chanzo cha mwanga cha sehemu ya bidhaa | No |
| umbo la kipengele kinachoendesha | round |
| ● kulingana na IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● ya moduli na vifaa | Screw-type terminal |
| muundo wa kipengele kinachoendesha | Button, raised |
| ● kulingana na IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| kiwango cha ulinzi cha ukadiriaji wa NEMA | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Lenzi ya aina ya ujenzi (EF006253) | - |
| nyenzo ya kipengele kinachoendesha | plastic |
| ufunguzi chanya wa utendaji kazi wa bidhaa | Yes |
| umbo la ufunguzi wa ufungaji | round |
| ● imara na usindikaji wa sehemu ya msingi | 2x (0.5 ... 0.75 mm²) |
| Kiwango cha ulinzi (IP) (EF005474) | IP67/IP69K |
| Inafaa kwa mwangaza (EF001142) | false |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SU1100-0BB20-1CA0 |
| ● imara bila usindikaji wa mwisho wa msingi | 2x (1.0 ... 1.5 mm²) |
| Kiwango cha ulinzi (NEMA) (EF011959) | Other |
| Idadi ya nafasi za amri (EF001372) | 1 |
| Kufunga kitendakazi cha kubadili (EF007447) | FALSE |
| Aina ya muunganisho wa umeme (EF003961) | - |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| kipenyo cha nje cha kipengele kinachoendesha | 29.45 mm |
| ugani wa bidhaa chanzo cha mwanga cha hiari | No |
| msimbo wa marejeleo kulingana na IEC 81346-2 | S |
| aina ya voltage ya voltage ya uendeshaji | AC/DC |
| muundo wa mawasiliano ya mawasiliano saidizi | Silver alloy |
| uvumilivu chanya wa kipenyo cha usakinishaji | 0.4 mm |
| kukaza torque kwa kutumia vituo vya aina ya skrubu | 0.8 ... 0.9 N·m |
| idadi ya anwani za NC kwa anwani za usaidizi | 1 |
| idadi ya anwani HAKUNA kwa anwani saidizi | 0 |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 2x (0.5 ... 1.5 mm²) |
| ● ya moduli ya mawasiliano iliyotolewa katika nafasi ya 1 | 3SU1400-1AA10-1CA0 |
| mkondo unaoendelea wa kiungo cha fuse cha DIAZED gG | 10 A |
| mkondo unaoendelea wa sifa ya C MCB | 10 A; for a short-circuit current smaller than 400 A |
| torque ya kukaza ya skrubu kwenye mabano | 1 ... 1.2 N·m |
| uvumilivu wa umeme (mizunguko ya kubadili) kawaida | 10 000 000 |
| kanuni ya uendeshaji wa kipengele kinachoendesha | momentary contact type |
| ● imekwama vizuri bila usindikaji wa sehemu ya msingi | 2x (1,0 ... 1,5 mm²) |
| mkondo unaoendelea wa kiungo cha fyuzi cha haraka cha DIAZED | 10 A |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 000 |
| ● kwa matumizi ya reli kulingana na EN 61373 | Category 1, Class B |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 0 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41J / 41J |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 0 |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 1 |
| kategoria ya mazingira wakati wa operesheni kulingana na IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.10.2014 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Idhini ya Jumla ya BidhaaTangazo la UzingatiajiUthibitishoTangazo la UzingatiajiVyeti vya MtihaniBaharini / UsafirishajiAzimio la UzingatiajiUingerezaAzimio la UzingatiajiCheti Maalum cha MtihaniAinaVyeti vya Mtihani/Ripoti ya MtihaniBaharini / UsafirishajinyingineUthibitisho | General Product Approval |
