3SF1214-1QV40-1BA1

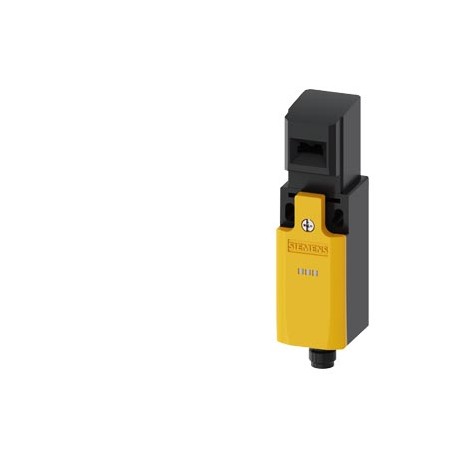

3SF1214-1QV40-1BA1 SIEMENS Safety position switch with separate actuator 5 directions of approaches Metal en..
$0.00USD
4237 kwenye hisa
Vipimo Muhimu
:
EAN:4011209862340
UPC:804766133244
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| EAN | 4011209862340 |
| UPC | 804766133244 |
| ETIM | 5 |
| WAZO | 4 |
| UNSPSC | 15 |
| Darasa la mtandaoni | 6 |
| Nambari ya ID1 | F (hex, variable 0...F) |
| Msimbo wa Kikundi | R711 |
| ● ya LED | 24 V |
| Uthibitisho | |
| Tarehe 5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | None |
| Kundi la Bidhaa | 3758 |
| Darasa la bidhaa | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | 3SF1, metal enclosures |
| ilibadilishwa mara ya mwisho: | 1/26/2022 |
| volti ya usambazaji | |
| Uzito Halisi (kg) | 0,248 Kg |
| usahihi wa kurudia | 0.1 mm |
| kanuni hai | mechanical |
| mbinu ya kufunga | screw fixing |
| Nchi ya asili | Germany |
| kanuni ya mzunguko | slow-action contacts |
| nafasi ya kupachika | any |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| Vipimo vya Ufungashaji | 56,00 x 166,50 x 77,50 |
| Maelezo ya Bidhaa | Safety position switch with separate actuator 5 directions of approaches Metal enclosure, according to EN 50047 31 mm, ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Slow-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | class 3 |
| uteuzi wa bidhaa | Mechanical safety switches |
| IP ya darasa la ulinzi | IP66/IP67 |
| upana wa kitambuzi | 31 mm |
| urefu wa kitambuzi | 118 mm |
| ● wakati wa operesheni | -25 ... +60 °C |
| muundo wa nyumba | block, narrow |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| Kihisi cha upana (EF007094) | 31.0 |
| Idhini ya Jumla ya Bidhaa | Functional Safety/Safety of Machinery |
| mipako ya kifuniko | cathodic dip coating |
| uainishaji wa aina ya bidhaa | 3SF12 |
| Kufunguliwa kwa lazima (EF006694) | true |
| nyenzo za kifuniko | metal |
| Wasifu wa mtumwa wa AS-Interface | 0.B.F |
| Nyumba ya mipako (EF001601) | Lacquered |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Urefu wa kitambuzi (EF007283) | 33.0 |
| Urefu wa kitambuzi (EF007334) | 118.0 |
| Nyumba ya nyenzo (EF001596) | Metal |
| Kazi za zamani za muda wa kawaida | 5 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | MM |
| Aina ya kiolesura (EF006977) | None |
| muundo wa muunganisho wa programu-jalizi | M12 plug, 4-pole: Pin 1 = ASI+ , Pin 2 = not assigned, Pin 3= ASI-, Pin 4 = not assigned |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 03/01/2017 |
| nambari ya makala ya mtengenezaji | |
| aina ya muunganisho wa umeme | M12 plug, fixed, 4-pole |
| ● ya viendeshi vya hiari | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right |
| thamani iliyokadiriwa ya voltage ya insulation | 30 V |
| muundo wa kipengele kinachoendesha | without |
| muundo wa mguso wa kubadili | mechanical |
| muundo wa kitendakazi cha kubadili | positive opening |
| Kwa kiashiria cha hali (EF001602) | true |
| ufunguzi chanya wa utendaji kazi wa bidhaa | Yes |
| kufaa kwa matumizi ya swichi ya usalama | Yes |
| Nyumba ya aina ya ujenzi (EF004008) | Cuboid |
| Kiwango cha ulinzi (IP) (EF005474) | IP66/IP67 |
| Aina ya mguso wa kubadili (EF003591) | Slow-action switch |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 0.8 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SF1214-1QV40-1BA1 |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Aina ya muunganisho wa umeme (EF003961) | Other |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| msimbo wa marejeleo kulingana na IEC 81346-2 | B |
| Inafaa kwa kazi za usalama (EF001597) | true |
| muundo wa nyumba kulingana na kiwango | Yes |
| idadi ya mawasiliano yanayobadilika yanayohusiana na usalama | 2 |
| Jamii ya usalama wa mlipuko wa gesi (EF003997) | None |
| nyenzo ya kifuniko cha kichwa cha swichi | plastic enclosure |
| idadi ya anwani za NC kwa anwani za usaidizi | 2 |
| idadi ya anwani HAKUNA kwa anwani saidizi | 0 |
| upinzani wa mshtuko kulingana na IEC 60068-2-27 | 30g / 11 ms |
| Jamii ya usalama wa mlipuko kwa vumbi (EF003998) | None |
| Idadi ya mawasiliano ya usaidizi wa usalama (EF006940) | 2 |
| Halijoto ya kawaida wakati wa uendeshaji (EF007515) | ['-25', '60'] |
| upinzani wa mtetemo kulingana na IEC 60068-2-6 | 0.35 mm/5g |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 1 000 000 |
| nguvu ya chini kabisa ya kusukuma katika mwelekeo wa kusukuma | 20 N |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 1 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 24 V (EF007084) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 24 V (EF007087) | - |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 42A / 42A |
| Thamani ya B10 yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 1 000 000 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 125 V (EF007082) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 230 V (EF001385) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 125 V (EF007085) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 230 V (EF001386) | - |
| Aina ya kiolesura cha mawasiliano ya usalama (EF003956) | AS-Interface Safety at Work |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 0 |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 2 |
| muundo wa kiolesura cha mawasiliano yanayohusiana na usalama | ASIsafe via M12 plug |
| aina ya volteji ya volteji ya usambazaji wa onyesho la LED la hiari | DC |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.03.2017 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Imidazolidine-2-thio... CAS-No. 96-45-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Imidazolidine-2-thione (2-imidazoline-2-thiol)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| uwiano wa hitilafu hatari zenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 20 % |
| Idhini ya Jumla ya BidhaaUsalama wa Utendaji wa MashineTangazo la UzingatiajiVyeti vya MtihaniAinaCheti cha Mtihani wa UingerezaTangazo la UzingatiajiAinaVyeti vya Mtihani/Ripoti ya MtihaninyingineUthibitisho | General Product Approval |
Maelezo ya Bidhaa
POS SWITCH. SAFETY C / ACTUATOR SEP, 5 WAYS METAL BOX ACCORDING TO EN50047 31MM, ASISAFE INTEGRATED STATE AS-I: 1: F-IN1 , 2: F-IN2 3: AS-I / FAULT CONTACTS SUDDEN ACTION 2NC, WITH M12, 4 POLOS CHANNE
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
