3SE5322-1SG21-1AG4

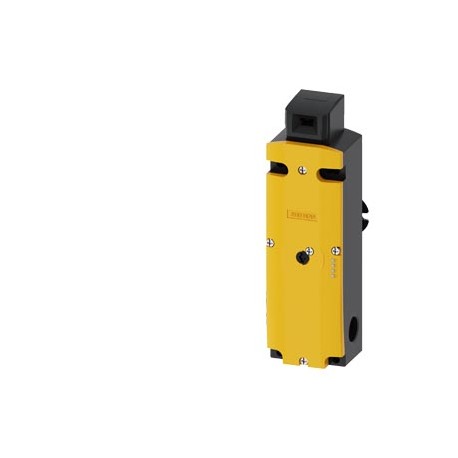

3SE5322-1SG21-1AG4 SIEMENS Safety position switch with tumbler Locking force 1300 N 5 directions of approach..
$0.00USD
3760 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209974104
UPC:804766690754
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209974104 |
| UPC | 804766690754 |
| ETIM | 5 |
| WAZO | 4 |
| UNSPSC | 15 |
| Darasa la mtandaoni | 6 |
| ● imara | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Msimbo wa Kikundi | R711 |
| ● ya LED | 24 V |
| Kipengele cha Chuma | None |
| Tarehe 5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kundi la Bidhaa | 5317 |
| Darasa la bidhaa | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Kitengo cha Kiasi | 1 Piece |
| nguvu ya kufunga | 1 300 N |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | 3SE5, plastic enclosures with locking force greater than 1 200 N |
| ilibadilishwa mara ya mwisho: | 1/26/2022 |
| volti ya usambazaji | |
| Uzito Halisi (kg) | 1,020 Kg |
| usahihi wa kurudia | 0.05 mm |
| mkondo wa joto | 10 A |
| aina ya kuingia kwa kebo | 3x (M20 x 1.5) |
| mbinu ya kufunga | screw fixing |
| upinzani wa mshtuko | 30g / 11 ms |
| Nchi ya asili | Germany |
| kanuni ya mzunguko | slow-action contacts |
| nafasi ya kupachika | any |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| Vipimo vya Ufungashaji | 151,00 x 251,50 x 68,50 |
| Maelezo ya Bidhaa | Safety position switch with tumbler Locking force 1300 N 5 directions of approaches High degree of protection IP69, IEC 60529 Plastic enclosure, 3x(M20x1.5) Spring-locked Escape release from the rear and auxiliary release on front Magnet voltage 24 V DC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator Actuator 3SE5000-0AV0. please order separately Cable gland IP69 to be used |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | class 3 |
| uteuzi wa bidhaa | Mechanical safety switches |
| IP ya darasa la ulinzi | IP66, IP67, IP69 |
| upana wa kitambuzi | 54 mm |
| urefu wa kitambuzi | 185 mm |
| upinzani wa mtetemo | 0.35 mm / 5g |
| ● wakati wa operesheni | -25 ... +60 °C |
| muundo wa nyumba | special design |
| muundo wa bidhaa | with separate actuator and with tumbler |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| Kihisi cha upana (EF007094) | 54.0 |
| muundo wa kiolesura | without |
| ● kwa thamani iliyokadiriwa ya 24 V | 6 A |
| ● kwenye nyaya za AWG imara | 1x (20 ... 16), 2x (20 ... 18) |
| muundo wa utaratibu wa kufunga | spring-actuated lock (closed-circuit principle) with escape release from the back and auxiliary release from the front |
| uainishaji wa aina ya bidhaa | 3SE5 |
| ● kwa thamani iliyokadiriwa ya 120 V | 6 A |
| ● kwa thamani iliyokadiriwa ya 125 V | 0.55 A |
| ● kwa thamani iliyokadiriwa ya 240 V | 3 A |
| ● kwa thamani iliyokadiriwa ya 250 V | 0.27 A |
| Azimio la Uzingatiaji | Test Certificates |
| nyenzo za kifuniko | plastic |
| Nyumba ya mipako (EF001601) | Uncoated |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● kwenye nyaya za AWG zilizokwama | 1x (20 ... 16), 2x (20 ... 18) |
| Urefu wa kitambuzi (EF007283) | 43.5 |
| Urefu wa kitambuzi (EF007334) | 185.0 |
| Nyumba ya nyenzo (EF001596) | Plastic |
| Kazi za zamani za muda wa kawaida | 10 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | MM |
| Aina ya kiolesura (EF006977) | None |
| mkondo wa uendeshaji katika AC-15 | |
| mkondo wa uendeshaji katika DC-13 | |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 10/01/2011 |
| voltage ya usambazaji wa koili ya sumaku | 24 V |
| aina ya muunganisho wa umeme | screw-type terminals |
| ● kulingana na EN ISO 14119 | 1 000 N |
| Kikosi cha kufunga cha walinzi (EF007552) | 1300 |
| Pamoja na kutolewa kwa kutoroka (EF007172) | true |
| thamani iliyokadiriwa ya voltage ya insulation | 250 V |
| ● kulingana na IEC 60068-2-6 | 0.35 mm/5g |
| muundo wa kipengele kinachoendesha | 5 directions of approach |
| ● kulingana na IEC 60068-2-27 | 30g / 11 ms |
| Aina ya kufuli ya walinzi (EF012608) | Quiescent current principle |
| muundo wa kitendakazi cha kubadili | positive opening |
| Pamoja na kutolewa msaidizi (EF011964) | - |
| Kwa kiashiria cha hali (EF001602) | true |
| idadi ya maelekezo ya utekelezaji | 5 |
| ufunguzi chanya wa utendaji kazi wa bidhaa | Yes |
| kufaa kwa matumizi ya swichi ya usalama | Yes |
| Nyumba ya aina ya ujenzi (EF004008) | Special construction |
| Kiwango cha ulinzi (IP) (EF005474) | Other |
| Aina ya mguso wa kubadili (EF003591) | Slow-action switch |
| nguvu inayotumika ya koili ya sumaku | 3.5 W |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 4 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SE5322-1SG21-1AG4 |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Aina ya muunganisho wa umeme (EF003961) | Cable entry metrical |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| aina ya ulinzi wa mlipuko kwa vumbi | none |
| msimbo wa marejeleo kulingana na IEC 81346-2 | B |
| Inafaa kwa kazi za usalama (EF001597) | true |
| muundo wa nyumba kulingana na kiwango | No |
| idadi ya mawasiliano yanayobadilika yanayohusiana na usalama | 4 |
| Jamii ya usalama wa mlipuko wa gesi (EF003997) | None |
| nyenzo ya kifuniko cha kichwa cha swichi | plastic |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| Jamii ya usalama wa mlipuko kwa vumbi (EF003998) | None |
| mkondo unaoendelea wa kiungo cha fuse cha DIAZED gG | 6 A; for a short-circuit current smaller than 400 A |
| Idadi ya mawasiliano ya usaidizi wa usalama (EF006940) | 4 |
| mkondo unaoendelea wa sifa ya C MCB | 1 A; for a short-circuit current smaller than 400 A |
| Halijoto ya kawaida wakati wa uendeshaji (EF007515) | ['-25', '60'] |
| mkondo unaoendelea wa kiungo cha fyuzi cha haraka cha DIAZED | 10 A; for a short-circuit current smaller than 400 A |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 1 000 000 |
| nguvu ya chini kabisa ya kusukuma katika mwelekeo wa kusukuma | 30 N |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 2 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 24 V (EF007084) | 6 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 24 V (EF007087) | 3 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41K / 41K |
| Thamani ya B10 yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 1 000 000 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 125 V (EF007082) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 230 V (EF001385) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 125 V (EF007085) | 0.55 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 230 V (EF001386) | - |
| Aina ya kiolesura cha mawasiliano ya usalama (EF003956) | None |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | - |
| nambari ya makala ya mtengenezaji ya viendeshi vya hiari | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | - |
| muundo wa kiolesura cha mawasiliano yanayohusiana na usalama | without |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Kiendeshi cha sumaku cha Us katika DC (EF007070) | ['24', '24'] |
| aina ya volteji ya volteji ya usambazaji wa onyesho la LED la hiari | DC |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Kiendeshi cha sumaku cha Us katika AC 50 Hz (EF007068) | ['-', '-'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Kiendeshi cha sumaku cha Us katika AC 60 Hz (EF007069) | ['-', '-'] |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.10.2011 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| uwiano wa hitilafu hatari zenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 20 % |
| Mizunguko ya uendeshaji wa umeme katika saa moja na kiunganishi 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 | 6 000 |
| Uvumilivu wa umeme (mizunguko ya kubadili) na kiunganishi 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 kawaida | 1 000 000 |
| Idhini ya Bidhaa kwa JumlaUthibitishoTangazo la UzingatiajiVyeti vya MtihaninyingineHatariNzuriUKTamko la UzingatiajiAina ya Vyeti vya Mtihani/Ripoti ya MtihaniUthibitishoTaarifa za Usafiri | General Product Approval |
Maelezo ya Bidhaa
INTERR. OF POS. WITH RETENTION FORCE 1300N, 5 SENSES OF ATTACK, PROTECTION IP69, IEC 60529 PLASTIC BOX, 3X (M20X1,5) SPRING DIGGING, DESENCLAV. DE EMERG. ON THE BACK AND UNLOCK. AUX. IN FRONT, ELECTRO
