3SE5115-1RV10-1AF2

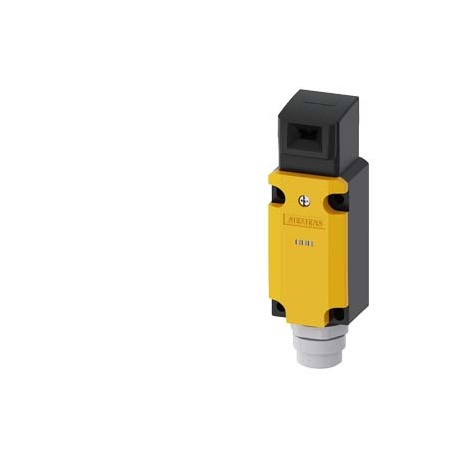

3SE5115-1RV10-1AF2 SIEMENS Safety position switch with separate actuator Metal enclosure, 40 mm according to..
$0.00USD
4864 kwenye hisa
Vipimo Muhimu
:Value
EAN:4011209701281
UPC:754554951300
Thamani ya B10:
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Value | |
| EAN | 4011209701281 |
| UPC | 754554951300 |
| Thamani ya B10 | |
| Msimbo wa Kikundi | R711 |
| ● ya LED | 24 V |
| Kundi la Bei | 41K |
| ● kawaida | 1 000 000 |
| Kipengele cha Chuma | LA------ |
| Mbalimbali | Confirmation |
| Aina ya kupachika | screw fixing |
| Kundi la Bidhaa | 5317 |
| Darasa la bidhaa | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | Not available |
| Volti ya usambazaji | |
| ilibadilishwa mara ya mwisho: | 08/05/2020 |
| Uzito Halisi (kg) | 0,522 Kg |
| Usahihi wa kurudia | 0.05 mm |
| Mkondo wa joto | 10 A |
| ● thamani iliyokadiriwa | 250 V |
| Kanuni inayofanya kazi | mechanical |
| Aina ya kuingia kwa kebo | plug, 6-pole + PU, according to EN 43651 |
| Kazi ya bidhaa | |
| Upinzani wa mshtuko | |
| Kanuni ya mzunguko | slow-action contacts |
| Nchi ya asili | Germany |
| Nafasi ya kupachika | any |
| Volti ya insulation | |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Tarehe ya Kuanza Kutumika ya PLM | Product is cancelled since: 28.02.2020 |
| Kiasi cha Ufungashaji | 1 |
| Jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -40 ... +90 °C |
| Halijoto ya mazingira | |
| Kiwango cha uchafuzi wa mazingira | class 3 |
| Vipimo vya Ufungashaji | 56,00 x 166,50 x 77,50 |
| Maelezo ya Bidhaa | Safety position switch with separate actuator Metal enclosure, 40 mm according to EN 50041 1 NO/1 NC slow-action contacts with 2 LEDs, yellow/green 24 V DC with connector 6+PE according to EN 43651 plastic max. 24 V, 6 A 1 NO/1 NC and PE connected Pin assignment: PIN1=21, PIN2=22 Pin3=13 and LED green, Pin4=14 and LED yellow, Pin5=not connected, Pin6=ground LED, the matching separate actuator 3SE5000-0AV0. must be ordered separately |
| Uteuzi wa bidhaa | Mechanical safety switches |
| IP ya daraja la ulinzi | IP65 |
| Upana wa kitambuzi | 40 mm |
| Urefu wa kitambuzi | 136 mm |
| Upinzani wa mtetemo | |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● ufunguzi chanya | Yes |
| Ubunifu wa nyumba | block, narrow |
| Ubunifu wa kiolesura | without |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM410:Product cancellation |
| Kihisi cha upana (EF007094) | 40.0 |
| ● kwa thamani iliyokadiriwa ya 24 V | 3 A |
| Upako wa kifuniko | cathodic immersion coating |
| Idhini ya Jumla ya Bidhaa | Functional Safety/Safety of Machinery |
| Uteuzi wa aina ya bidhaa | 3SE5 |
| Azimio la Uzingatiaji | other |
| Kufunguliwa kwa lazima (EF006694) | true |
| Nyenzo ya kifuniko | metal |
| ● kukubali IEC 60068-2-6 | 0.35 mm/5g |
| Nyumba ya mipako (EF001601) | Lacquered |
| Kanuni za Udhibiti wa Usafirishaji Nje | ECCN : N / AL : N |
| Mkondo wa uendeshaji katika DC-13 | |
| ● kukubali IEC 60068-2-27 | 30 g / 11 ms |
| Urefu wa kitambuzi (EF007283) | 37.3 |
| Urefu wa kitambuzi (EF007334) | 136.0 |
| Nyumba ya nyenzo (EF001596) | Metal |
| Kazi za zamani za muda wa kawaida | 5 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Ubunifu wa muunganisho wa programu-jalizi | plug, 6-pole + PU: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13/LED green, Pin 4 = 14/LED yellow, Pin 5 = not assigned, Pin 6 = ground LED, PU connected |
| Kipimo cha ukubwa wa kifurushi | MM |
| Aina ya kiolesura (EF006977) | None |
| Nambari ya makala ya mtengenezaji | |
| Aina ya muunganisho wa umeme | plug, 6-pole + PU, according to EN 43651 |
| ● ya viendeshi vya hiari | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical mounting, 3SE5000-0AV03 actuator with horizontal mounting, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right, 3SE5000-0AV07 heavy-duty actuator, 3SE5000-0AW11 plastic actuator, 3SE5000-0AW21 stainless steel actuator |
| Vipimo vya Bidhaa (Upana x Upana x Urefu) | Not available |
| Ubunifu wa mguso wa kubadili | mechanical |
| Ubunifu wa kitendakazi cha kubadili | positive opening |
| Uwiano wa kushindwa hatari | |
| Ubunifu wa utaratibu wa uendeshaji | without |
| Kufaa kwa matumizi ya swichi ya usalama | Yes |
| Kwa kiashiria cha hali (EF001602) | true |
| ● ya kiashiria cha hiari cha LED | DC |
| Nyumba ya aina ya ujenzi (EF004008) | Cuboid |
| Kiwango cha ulinzi (IP) (EF005474) | IP65 |
| Thamani iliyokadiriwa ya upinzani wa volteji ya kuongezeka | 0.8 kV |
| Aina ya mguso wa kubadili (EF003591) | Slow-action switch |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3SE5115-1RV10-1AF2 |
| Nambari ya marejeleo ya akaunti ya DIN EN 61346-2 | B |
| Nambari ya marejeleo ya DIN EN 81346-2 | B |
| Aina ya voltage ya voltage ya usambazaji | |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Ubunifu wa nyumba ya makazi kulingana na kiwango | Yes |
| Aina ya ulinzi wa milipuko kwa vumbi | none |
| Aina ya muunganisho wa umeme (EF003961) | Other |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Inafaa kwa kazi za usalama (EF001597) | true |
| Maisha ya huduma ya mitambo (mizunguko ya kubadilisha) | |
| ● yenye kiwango cha juu cha mahitaji hadi SN 31920 | 1 000 000 |
| Idadi ya mawasiliano yanayobadilika kulingana na usalama | 1 |
| Jamii ya usalama wa mlipuko wa gesi (EF003997) | None |
| Nyenzo ya kifuniko cha kichwa cha swichi | metal |
| Idadi ya anwani za NC kwa anwani za usaidizi | 1 |
| Idadi ya anwani HAKUNA kwa anwani saidizi | 1 |
| Mkondo unaoendelea wa kiungo cha fuse cha DIAZED gG | 6 A; for a short-circuit current smaller than 400 A |
| Jamii ya usalama wa mlipuko kwa vumbi (EF003998) | None |
| Mkondo unaoendelea wa sifa ya C ya MCB | 1 A; for a short-circuit current smaller than 400 A |
| Idadi ya mawasiliano ya usaidizi wa usalama (EF006940) | 1 |
| Halijoto ya kawaida wakati wa uendeshaji (EF007515) | ['-25', '60'] |
| Nguvu ya chini kabisa ya kuamilisha katika mwelekeo wa uanzishaji | 20 N |
| Mkondo unaoendelea wa kiungo cha fyuzi cha haraka cha DIAZED | 10 A; for a short-circuit current smaller than 400 A |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 1 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 24 V (EF007084) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 24 V (EF007087) | 3 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 125 V (EF007082) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-15, 230 V (EF001385) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 125 V (EF007085) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika DC-13, 230 V (EF001386) | - |
| Aina ya kiolesura cha mawasiliano ya usalama (EF003956) | None |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 1 |
| Ubunifu wa kiolesura cha mawasiliano yanayohusiana na usalama | without |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 1 |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.07.2006 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Mizunguko ya uendeshaji wa umeme katika saa moja na kiunganishi 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 | 6 000 |
| Uvumilivu wa umeme (mizunguko ya kubadili) na kiunganishi 3RH11, 3RT1016, 3RT1017, 3RT1024, 3RT1025, 3RT1026 kawaida | 1 000 000 |
| Idhini ya Jumla ya BidhaaUsalama wa Utendaji wa MashineTamko la UzingatiajiAina ya Cheti cha MtihaniTamko la UzingatiajinyingineMiscellaneousUthibitisho | General Product Approval |
