3RQ2000-2CW01

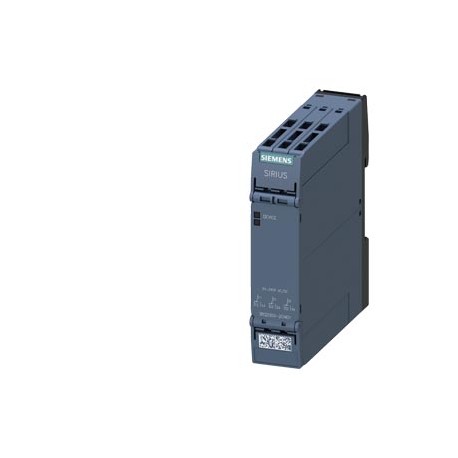

3RQ2000-2CW01 SIEMENS Coupling relay in industrial enclosure 3 hard gold-plated changeover contacts Wide vol..
$0.00USD
3417 kwenye hisa
Vipimo Muhimu
:
EAN:4047621050454
UPC:804766715167
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| EAN | 4047621050454 |
| UPC | 804766715167 |
| ETIM | 5 |
| kina | 90 mm |
| nyingine | Railway |
| upana | 22.5 mm |
| Darasa la mtandaoni | 6 |
| urefu | 100 mm |
| ● katika DC | 24 ... 240 V |
| ● imara | 0.5 ... 4 mm² |
| Msimbo wa Kikundi | R711 |
| ● kwenye 24 V | 1 A |
| Uthibitisho | Confirmation |
| Kipengele cha Chuma | LA------ |
| ● kwenye 125 V | 0.2 A |
| ● kwa 250 V | 0.1 A |
| ● kwa 50 Hz | 24 ... 240 V |
| ● kwa 60 Hz | 24 ... 240 V |
| ● kukwama | 20 ... 12 |
| Tarehe 5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| ON-muda wa kuchelewa | |
| Kundi la Bidhaa | 4949 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85364900 |
| Muda wa kuchelewa | 100 ms |
| Familia ya bidhaa | SIRIUS 3RQ2 coupling relays with industrial enclosure |
| ilibadilishwa mara ya mwisho: | 1/26/2022 |
| Uzito Halisi (kg) | 0,185 Kg |
| aina ya volteji | AC/DC |
| Kina (EF000049) | 90.0 |
| Upana (EF000008) | 22.5 |
| mbinu ya kufunga | screw and snap-on mounting onto 35 mm standard mounting rail |
| upinzani wa mshtuko | |
| Nchi ya asili | Germany |
| Urefu (EF000040) | 100.0 |
| nafasi ya kupachika | any |
| ● katika kiwango cha juu cha AC | 10 ms |
| ● katika kiwango cha juu cha DC | 10 ms |
| ● thamani ya awali | 0.7 |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| tabia ya kubadilisha | monostable |
| ● wakati wa kuhifadhi | -40 ... +80 °C |
| Vipimo vya Ufungashaji | 110,00 x 125,00 x 35,00 |
| Maelezo ya Bidhaa | Coupling relay in industrial enclosure 3 hard gold-plated changeover contacts Wide voltage range 24 V to 240 V AC/DC Spring-type terminals |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 3 |
| uteuzi wa bidhaa | Coupling relay in industrial enclosure |
| IP ya darasa la ulinzi | IP20 |
| upinzani wa mtetemo | |
| ● wakati wa operesheni | -40 ... +60 °C |
| ● wakati wa usafiri | -40 ... +80 °C |
| ● thamani kamili | 1.1 |
| nguvu inayotumika inayotumika | 5 W |
| kuingiliwa kunakofanywa | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| ● at 24 V at 50/60 Hz | 3 A |
| ● kwenye nyaya za AWG imara | 20 ... 12 |
| Idhini ya Jumla ya Bidhaa | EMC |
| volteji ya usambazaji wa udhibiti 1 | |
| uainishaji wa aina ya bidhaa | 3RQ2 |
| ● at 110 V at 50/60 Hz | 3 A |
| ● kwa 250 V kwa 50/60 Hz | 3 A |
| Azimio la Uzingatiaji | Test Certificates |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Mkondo wa nominella (EF000001) | - |
| Kazi za zamani za muda wa kawaida | 2 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | MM |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 05/31/2018 |
| utangamano wa sumakuumeme | IEC 60947-1 / IEC 61000-6-2 / IEC 61000-6-4 |
| aina ya muunganisho wa umeme | spring-loaded terminal (push-in) |
| Kiendeshi, upolarishaji (EF003355) | Polarized |
| Na kiashiria cha LED (EF005950) | - |
| volteji ya usambazaji wa udhibiti 1 kwenye AC | |
| nyenzo za kubadilisha anwani | AgNi + Au |
| ● kulingana na IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| Kamilisha na soketi (EF003359) | false |
| ● kulingana na IEC 60068-2-27 | 11g / 15 ms |
| soketi ya kuziba sehemu ya bidhaa | No |
| Aina ya mguso wa swichi (EF003358) | - |
| Na vibanio vinavyoweza kutolewa (EF003340) | false |
| unyevunyevu wa jamaa wakati wa operesheni | 10 ... 95 % |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa | |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Mwelekeo wa kuendesha gari, kubadilisha (EF003356) | Mono stable |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 4 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RQ2000-2CW01 |
| Kinga ya EMC kulingana na IEC 60947-1 | corresponds to degree of severity 3 |
| Aina ya volteji ya kuamilisha (EF008242) | AC/DC |
| ukubwa wa relay ya pato katika AC-15 | |
| ukubwa wa relay ya pato katika DC-13 | |
| Aina ya muunganisho wa umeme (EF003961) | Spring clamp connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Kwa mawasiliano yanayoongozwa kwa kulazimishwa (EF003357) | false |
| muundo wa utaratibu wa uendeshaji wa relay | poled |
| msimbo wa marejeleo kulingana na IEC 81346-2 | K |
| uaminifu wa mawasiliano ya mawasiliano saidizi | one incorrect switching per 100 million (11 V, 2 mA) |
| ● kati ya saketi saidizi na saidizi | 300 V |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV |
| idadi ya anwani za CO kwa anwani saidizi | 3 |
| idadi ya anwani za NC kwa anwani za usaidizi | 0 |
| idadi ya anwani HAKUNA kwa anwani saidizi | 0 |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 0.5 ... 2.5 mm² |
| voltage ya juu inayoruhusiwa kwa ajili ya kutengwa salama | |
| ● imekwama vizuri bila usindikaji wa sehemu ya msingi | 0.5 mm² |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['24', '240'] |
| EMC ilitoa mwingiliano kulingana na IEC 60947-1 | ambience A (industrial sector) |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 4 kV contact discharging, 8 kV air discharging |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 10 000 000 |
| ● kwa matumizi ya reli kulingana na EN 61373 | Category 1, Class B |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 10 V/m |
| Idadi ya anwani kama anwani ya kubadilishana (EF008257) | 3 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41H / 41H |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | ['24', '240'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | ['24', '240'] |
| Idadi ya anwani kama kawaida hufunguliwa (EF008256) | 0 |
| Nambari ya AWG kama sehemu ya msalaba ya kondakta inayoweza kuunganishwa yenye msimbo | |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 2 000 m |
| Idadi ya anwani kama kawaida zilivyofungwa (EF008255) | 0 |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV (line to ground) |
| mkondo wa joto wa kipengele cha kubadili chenye kiwango cha juu cha mawasiliano | 5 A |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika DC | |
| urefu wa kebo iliyokatwa kwa ajili ya mawasiliano saidizi na ya kudhibiti | 10 mm |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV (line to line) |
| uvumilivu wa umeme (mizunguko ya kubadili) katika AC-15 katika 230 V kawaida | 100 000 |
| ● between control and auxiliary circuit according to IEC 60947-1 | 300 V |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 31.05.2018 |
| sehemu ya bidhaa inayoweza kutolewa kwa saketi saidizi na ya udhibiti | Yes |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika AC katika 50 Hz | |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika AC katika 60 Hz | |
| muundo wa kiungo cha fuse kwa ajili ya ulinzi wa mzunguko mfupi wa swichi saidizi unaohitajika | fuse gL/gG: 6 A |
| volteji ya insulation kwa kategoria ya overvoltage III kulingana na IEC 60664 yenye kiwango cha uchafuzi wa mazingira thamani iliyokadiriwa 3 | 300 V |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportotherRailwayConfirmationConfirmation | General Product Approval |
