3RM1007-1AA04

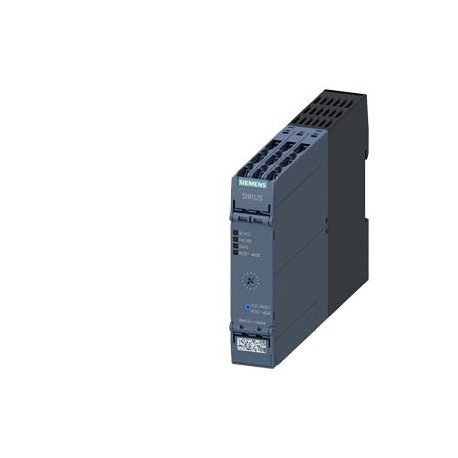

3RM1007-1AA04 SIEMENS Direct starter, 3RM1, 500 V, 0.55 3 kW, 1.6 7 A, 24 V DC, screw terminals
$0.00USD
4045 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209914704
UPC:887621167974
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209914704 |
| UPC | 887621167974 |
| ETIM | 5 |
| kina | 141.6 mm |
| upana | 22.5 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 100 mm |
| — imara | 1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²) |
| Msimbo wa Kikundi | R711 |
| darasa la safari | CLASS 10A |
| — juu | 50 mm |
| Tarehe 5/7/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | None |
| — washambuliaji | 0 mm |
| ON-muda wa kuchelewa | 60 ... 90 ms |
| Kundi la Bidhaa | 3762 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| — nyuma | 0 mm |
| — chini | 50 mm |
| Nambari ya Bidhaa | 85371098 |
| Muda wa kuchelewa | 60 ... 90 ms |
| Familia ya bidhaa | SIRIUS 3RM1 motor starters |
| ilibadilishwa mara ya mwisho: | 11/3/2021 |
| Uzito Halisi (kg) | 0,321 Kg |
| — pembeni | 0 mm |
| Kina (EF000049) | 141.6 |
| Upana (EF000008) | 22.5 |
| mbinu ya kufunga | screw and snap-on mounting onto 35 mm standard mounting rail |
| mzigo wa chini kabisa [%] | 20 %; from set rated current |
| kategoria ya bidhaa | Motor starter |
| kazi ya bidhaa | Direct-on-line starter |
| nafasi inayohitajika | |
| upinzani wa mshtuko | 6g / 11 ms |
| ● kuanza moja kwa moja | Yes |
| Nchi ya asili | Germany |
| Urefu (EF000040) | 100.0 |
| nafasi ya kupachika | vertical, horizontal, standing (observe derating) |
| ● thamani ya awali | 0.8 |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -40 ... +70 °C |
| Vipimo vya Ufungashaji | 36,00 x 109,00 x 167,00 |
| Maelezo ya Bidhaa | Direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw terminals |
| halijoto ya mazingira | |
| mkondo wa uendeshaji | |
| uteuzi wa bidhaa | Direct-on-line starter |
| Na fyuzi (EF006693) | false |
| joto linalopungua | 40 °C |
| kategoria ya volteji kupita kiasi | III |
| upinzani wa mtetemo | 1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz |
| ● wakati wa operesheni | 70 mA |
| ● wakati wa usafiri | -40 ... +70 °C |
| ● thamani kamili | 1.25 |
| ● kuanza kinyume | No |
| mkondo wa kudhibiti katika DC | |
| muundo wa bidhaa | with electronic overload protection |
| itifaki inaungwa mkono | |
| ● kwa thamani iliyokadiriwa na DC | 24 V |
| ● kwa anwani kuu | |
| ● imara au imekwama | 0.5 ... 4 mm² |
| ● unapowasha | 150 mA |
| kuingiliwa kunakofanywa | |
| ● Itifaki ya PROFIsafe | No |
| ● kwa sehemu zilizowekwa ardhini | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| voltage ya uendeshaji katika AC | |
| — na mzunguko wa kupita | 0.6 W |
| Idhini ya Jumla ya Bidhaa | EMC |
| Darasa la kutolewa (EF006668) | CLASS 10 A |
| uainishaji wa aina ya bidhaa | 3RM1 |
| — kwa thamani iliyokadiriwa ya 230 V | 0.5 hp |
| ● Itifaki ya PROFINET IO | No |
| ● kwa motor ya AC ya awamu 3 | |
| ● kwa ishara <1> katika DC | 15 ... 30 |
| Azimio la Uzingatiaji | Test Certificates |
| ● kwa thamani iliyokadiriwa ya 40 °C | 7 A |
| ● kwa thamani iliyokadiriwa ya 50°C | 6.1 A |
| ● kwa thamani iliyokadiriwa ya 55°C | 5.2 A |
| ● kwa thamani iliyokadiriwa ya 60 °C | 4.6 A |
| ● katika hali ya kuwasha IMEWASHWA | |
| ● yenye ishara <0> katika DC | 0 ... 5 V |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● kwa mawasiliano saidizi | |
| ● katika hali ya kuzima | |
| Kazi za zamani za muda wa kawaida | 120 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Na transfoma (EF000278) | false |
| upeo wa masafa ya uendeshaji | 1 1/s |
| Kipimo cha ukubwa wa kifurushi | MM |
| aina ya ulinzi wa injini | solid-state |
| — kwa thamani iliyokadiriwa ya 110/120 V | 0.25 hp |
| — kwa thamani iliyokadiriwa ya 200/208 V | 1 hp |
| — kwa thamani iliyokadiriwa ya 220/230 V | 1.5 hp |
| — kwa thamani iliyokadiriwa ya 460/480 V | 3 hp |
| ● kwa saketi kuu ya mkondo | screw-type terminals |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 03/01/2017 |
| thamani iliyokadiriwa ya voltage ya uendeshaji | 48 ... 500 V |
| aina ya muunganisho wa umeme | screw-type terminals for main circuit, screw-type terminals for control circuit |
| ● kwa mota ya AC ya awamu moja | |
| kiwango cha juu cha uwezo wakati wa kuanza | 56 A |
| mkondo wa kuingiza kwenye ingizo la kidijitali | |
| voltage ya kuingiza kwenye ingizo la kidijitali | |
| thamani iliyokadiriwa ya voltage ya insulation | 500 V |
| ● katika AC kwa thamani iliyokadiriwa ya 400 V | 7 A |
| ● na upachikaji wa kando kwa kando | |
| muundo wa mguso wa kubadili | Hybrid |
| ● kulingana na thamani iliyokadiriwa na UL | 480 V |
| ● ulinzi wa ndani wa kifaa | Yes |
| Aina ya kianzishaji cha mota (EF009598) | - |
| ● kulingana na thamani iliyokadiriwa na CSA | 400 V |
| ● katika AC-3 kwa thamani iliyokadiriwa ya 400 V | 7 A |
| ● katika hali ya kusubiri ya uendeshaji | 25 mA |
| Inawezekana kuweka reli (EF003972) | - |
| thamani iliyokadiriwa ya masafa ya uendeshaji 1 | 50 Hz |
| thamani iliyokadiriwa ya masafa ya uendeshaji 2 | 60 Hz |
| Uwekaji upya wa nje unawezekana (EF003426) | - |
| shinikizo la hewa kulingana na SN 31205 | 900 ... 1 060 hPa |
| mawasiliano ya basi ya kazi ya bidhaa | No |
| unyevunyevu wa jamaa wakati wa operesheni | 10 ... 95 % |
| utendaji wa kiufundi uliotolewa [hp] | |
| ● kwenye nyaya za AWG kwa ajili ya mawasiliano kuu | 1x (20 ... 12), 2x (20 ... 14) |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RM1007-1AA04 |
| Kinga ya EMC kulingana na IEC 60947-1 | Class A |
| Idadi ya taa za kiashiria (EF001965) | - |
| Mkondo wa uendeshaji uliokadiriwa Ie (EF001443) | 7 |
| Aina ya volteji ya kuamilisha (EF008242) | DC |
| Na kutolewa kwa saketi fupi (EF006691) | false |
| ● kwa saketi saidizi na ya kudhibiti | screw-type terminals |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Idadi ya nafasi za amri (EF001372) | 0 |
| Inafaa kwa ajili ya kusimama kwa dharura (EF001433) | - |
| Itifaki inayounga mkono ASI (EF003051) | - |
| Itifaki inayounga mkono CAN (EF003053) | - |
| Itifaki inayounga mkono LON (EF003017) | - |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| ● kati ya saketi kuu na saidizi | 500 V |
| muda wa kilele cha mkondo wa kukimbilia kwa 24 V | 85 ms |
| msimbo wa marejeleo kulingana na IEC 81346-2 | Q |
| voltage ya usambazaji wa udhibiti katika thamani iliyokadiriwa ya DC | 19.2 ... 30 V |
| idadi ya nguzo za saketi kuu ya mkondo | 3 |
| urefu wa waya kwa upeo usio na ngao wa injini | 100 m |
| ● kwenye nyaya za AWG kwa ajili ya mawasiliano saidizi | 1x (20 ... 14), 2x (18 ... 16) |
| Itifaki inayounga mkono Modbus (EF003057) | - |
| Itifaki inayounga mkono SERCOS (EF006657) | - |
| Itifaki inayounga mkono TCP/IP (EF003050) | - |
| ulinzi wa mzunguko mfupi wa kazi ya bidhaa | No |
| ● kati ya saketi ya udhibiti na saketi saidizi | 250 V |
| Itifaki inayounga mkono SUCONET (EF003060) | - |
| volteji ya usambazaji wa udhibiti 1 kwa thamani iliyokadiriwa ya DC | 24 V |
| Mpangilio wa mkondo wa kutolewa kwa mzigo kupita kiasi (EF002336) | ['7', '7'] |
| Itifaki inayounga mkono INTERBUS (EF003054) | - |
| Itifaki inayounga mkono PROFIBUS (EF003052) | - |
| itifaki inaungwa mkono na itifaki ya AS-Interface | No |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 3 kV / 5 kHz |
| Itifaki inayounga mkono DeviceNet (EF003059) | - |
| Itifaki inayounga mkono PROFIsafe (EF007526) | - |
| aina tofauti ya vifaa kulingana na IEC 60947-4-2 | 3 |
| idadi ya anwani za CO kwa anwani saidizi | 1 |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| — imekwama vizuri na usindikaji wa sehemu ya msingi | 1x (0,5 … 4 mm²), 2x (0,5 … 1,5 mm²) |
| ● imekwama vizuri ikiwa na usindikaji wa sehemu ya msingi | 0.5 ... 4 mm² |
| Nguvu iliyokadiriwa, 460 V, 60 Hz, awamu 3 (EF009600) | 2.20649625 |
| Nguvu iliyokadiriwa, 575 V, 60 Hz, awamu 3 (EF009601) | - |
| aina ya voltage ya voltage ya usambazaji wa udhibiti | DC |
| Itifaki inayounga mkono EtherNet/IP (EF007521) | - |
| Itifaki inayounga mkono PROFINET IO (EF007525) | - |
| Itifaki inayounga mkono ya SafetyBUS p (EF007527) | - |
| voltage ya juu inayoruhusiwa kwa ajili ya kutengwa salama | |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 400 V (EF001364) | 3.0 |
| Itifaki inayounga mkono ya Barabara Kuu ya Data (EF003058) | - |
| Itifaki inayounga mkono PROFINET CBA (EF007524) | - |
| upotevu wa nguvu [W] katika saketi saidizi na ya udhibiti | |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['24', '24'] |
| kufaa kwa kiunganishi cha kifaa cha uendeshaji 3ZY12 | Yes |
| ● kwa ajili ya ulinzi wa polari ya nyuma ya usambazaji wa umeme | No |
| EMC ilitoa mwingiliano kulingana na IEC 60947-1 | class A |
| Mkondo wa uendeshaji uliokadiriwa katika AC-3, 400 V (EF009602) | - |
| Itifaki inayounga mkono Usalama wa INTERBUS (EF006662) | - |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya kawaida | 30 000 000 |
| Itifaki inayounga mkono Usalama wa DeviceNet (EF007520) | - |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 10 V/m |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41D / 41D |
| Itifaki inayounga mkono mifumo mingine ya basi (EF003062) | - |
| nguvu ya uendeshaji kwa motors za awamu 3 kwa 400 V kwa 50 Hz | 0.55 ... 3 kW |
| ulinzi wa mguso mbele kulingana na IEC 60529 | finger-safe |
| Halijoto ya mazingira, kikomo cha juu cha uendeshaji (EF009603) | - |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | ['-', '-'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | ['-', '-'] |
| sehemu nzima ya kondakta inayoweza kuunganishwa kwa mawasiliano kuu | |
| Itifaki inayounga mkono Foundation Fieldbus (EF007522) | - |
| Ulinzi wa overload unaofidiwa na halijoto (EF009604) | - |
| Nambari ya AWG kama sehemu ya msalaba ya kondakta inayoweza kuunganishwa yenye msimbo | |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 4 000 m; For derating see manual |
| IP ya darasa la ulinzi mbele kulingana na IEC 60529 | IP20 |
| uvumilivu wa ulinganifu wa voltage ya uendeshaji | 10 % |
| Darasa la uratibu kulingana na IEC 60947-4-3 (EF012390) | - |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 230 V, awamu 3 (EF009599) | - |
| Aina ya muunganisho wa umeme wa saketi kuu (EF006819) | Screw connection |
| uzalishaji wa kuingiliwa kwa HF kulingana na CISPR11 | Class B for the domestic, business and commercial environments |
| utoaji wa kuingiliwa kwa HF unaoelekea shambani kulingana na CISPR11 | Class B for the domestic, business and commercial environments |
| uvumilivu wa ulinganifu wa masafa ya uendeshaji | 10 % |
| sehemu ya msalaba ya kondakta inayoweza kuunganishwa kwa mawasiliano saidizi | |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV |
| Itifaki inayounga mkono Usalama wa Kiolesura cha AS Kazini (EF007519) | - |
| kategoria ya mazingira wakati wa operesheni kulingana na IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● kutokana na mionzi ya masafa ya juu kulingana na IEC 61000-4-6 | 10 V |
| thamani ya volteji ya usambazaji wa udhibiti wa vipengele vya uendeshaji katika DC | |
| uvumilivu hasi wa voltage ya usambazaji wa udhibiti katika DC | 20 % |
| uvumilivu chanya wa voltage ya usambazaji wa udhibiti katika DC | 25 % |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV |
| Idadi ya anwani saidizi kama kawaida hufunguliwa (EF001376) | - |
| ● katika AC-53a katika 400 V katika halijoto ya kawaida ya 40 °C thamani iliyokadiriwa | 7 A |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 2, 230 V (EF009606) | - |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 2, 400 V (EF009605) | - |
| Idadi ya anwani saidizi kama anwani iliyofungwa kawaida (EF001377) | - |
| mkondo wa uendeshaji wa mawasiliano saidizi katika DC-13 kwa kiwango cha juu cha 24 V | 1 A |
| mkondo wa uendeshaji wa mawasiliano saidizi katika AC-15 kwa kiwango cha juu cha 230 V | 3 A |
| muundo wa mguso wa kubadili kama HAKUNA mguso wa kazi ya kuashiria | OUT, electronic, 24 V DC, 15 mA |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.03.2017 |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 1, 480 Y/277 V (EF009607) | - |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 1, 600 Y/347 V (EF009608) | - |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Diboron trioxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Aina ya muunganisho wa umeme kwa ajili ya saketi ya mkondo msaidizi na udhibiti (EF006979) | Screw connection |
| thamani ya mwitikio wa sasa inayoweza kurekebishwa ya mkondo wa kutolewa kwa mzigo unaotegemea mkondo | 1.6 ... 7 A |
| Idhini ya Jumla ya BidhaaEMCUthibitishoTangazo la UzingatiajiVyeti vya MtihaninyingineAina ya ReliVyeti vya Mtihani/Ripoti ya MtihaniUthibitishoCheti cha Mtihani Maalum | General Product Approval |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
