3RK1301-0HB00-1AA2

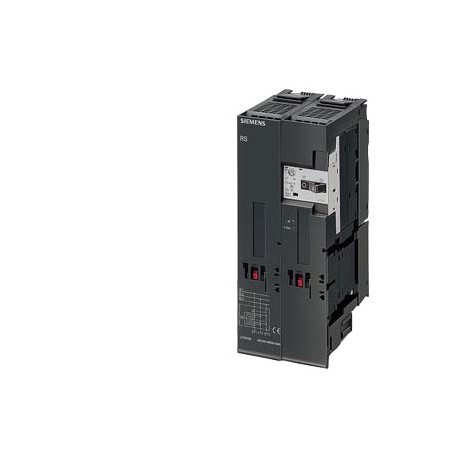

3RK1301-0HB00-1AA2 SIEMENS RS1-X for ET 200S Standard reversing starter expandable Setting range 0.55...0.8 ..
$0.00USD
3123 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209498716
UPC:662643249330
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209498716 |
| UPC | 662643249330 |
| ETIM | 5 |
| Vidokezo | Sucessor:The successor is the ET 200SP system with its compact motor starter modules. |
| kina | 120 mm |
| upana | 90 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 265 mm |
| ● katika DC | 24 ... 24 V |
| Msimbo wa Kikundi | R711 |
| darasa la safari | CLASS 10 |
| Tarehe 5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | LAO----- |
| Kundi la Bidhaa | 4962 |
| Darasa la bidhaa | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85365080 |
| Familia ya bidhaa | Standard motor starters |
| ilibadilishwa mara ya mwisho: | 12/15/2020 |
| Uzito Halisi (kg) | 1,340 Kg |
| kipengele cha bidhaa | |
| Kina (EF000049) | 120.0 |
| Upana (EF000008) | 90.0 |
| mbinu ya kufunga | pluggable on terminal module |
| kazi ya bidhaa | |
| upinzani wa mshtuko | 5g / 11 ms |
| ● kuanza moja kwa moja | No |
| Nchi ya asili | Germany |
| Urefu (EF000040) | 265.0 |
| nafasi ya kupachika | vertical, horizontal |
| idadi ya soketi | |
| ● ya pembejeo | 1 byte |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Tarehe ya Kuanza Kutumika ya PLM | Product phase-out since: 01.10.2020 |
| Kiasi cha Ufungashaji | 1 |
| kiwango cha kushindwa [FIT] | |
| jina la chapa ya bidhaa | SIMATIC |
| aina ya kazi | 2 |
| ● wakati wa kuhifadhi | -40 ... +70 °C |
| ● ya matokeo | 1 byte |
| Vipimo vya Ufungashaji | 198,00 x 286,00 x 157,00 |
| Maelezo ya Bidhaa | RS1-X for ET 200S Standard reversing starter expandable Setting range 0.55...0.8 A, AC-3, 0.21 kW / 400 V Electromechanical starter for brake control module |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131) |
| mkondo wa uendeshaji | |
| uteuzi wa bidhaa | Motor starters |
| Na fyuzi (EF006693) | - |
| upinzani wa mtetemo | 2g |
| ● wakati wa operesheni | 0 ... 60 °C |
| ● wakati wa usafiri | -40 ... +70 °C |
| ● kuanza kinyume | Yes |
| muundo wa bidhaa | reversing starter |
| itifaki inaungwa mkono | |
| ● Itifaki ya PROFINET | Yes |
| ● kwa thamani iliyokadiriwa na DC | 20.4 ... 28.8 V |
| kuingiliwa kunakofanywa | |
| voltage ya usambazaji 1 katika DC | 24 ... 24 V |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM400:Phase Out Started |
| — na mzunguko wa kupita | 0.3744 W |
| ● kiwango cha juu kinachoruhusiwa | 28.8 V |
| ● kiwango cha chini kinachoruhusiwa | 20.4 V |
| Idhini ya Jumla ya Bidhaa | EMC |
| Darasa la kutolewa (EF006668) | CLASS 10 |
| volteji ya usambazaji wa udhibiti 1 | |
| idadi ya pembejeo za kidijitali | 0 |
| uainishaji wa aina ya bidhaa | ET 200S |
| ● Itifaki ya PROFIBUS DP | Yes |
| ● kwa thamani iliyokadiriwa ya 400 V | 50 kA |
| ● katika hali ya kuwasha IMEWASHWA | |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| — bila mzunguko wa kupita | 0.374 W |
| ● kwa ajili ya nishati kuu inayoingia | screw-type terminals |
| ● katika hali ya kuzima | |
| Kazi za zamani za muda wa kawaida | 50 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Na transfoma (EF000278) | false |
| upeo wa masafa ya uendeshaji | 750 1/h |
| Kipimo cha ukubwa wa kifurushi | MM |
| aina ya ulinzi wa injini | bimetal |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 10/26/2016 |
| thamani iliyokadiriwa ya voltage ya uendeshaji | 200 ... 400 V |
| aina ya muunganisho wa umeme | |
| ● kwa mawimbi ya ingizo ya kidijitali | 0 |
| Kwa matumizi katika maeneo hatarishi | Declaration of Conformity |
| thamani iliyokadiriwa ya voltage ya insulation | 500 V |
| ● udhibiti wa breki wenye 24 V DC | No |
| ● kwa mawimbi ya kutoa matokeo ya kidijitali | 0 |
| muundo wa mguso wa kubadili | electromechanical |
| ● 1 kwa mawimbi ya ingizo ya kidijitali | using control module |
| ● 2 kwa mawimbi ya ingizo ya kidijitali | using control module |
| ● udhibiti wa breki wenye 180 V DC | No |
| ● udhibiti wa breki wenye AC ya 230 V | No |
| ● udhibiti wa breki wenye 500 V DC | No |
| Aina ya kianzishaji cha mota (EF009598) | Reversing starter |
| uwiano wa kushindwa hatari | |
| ● katika AC-3 kwa thamani iliyokadiriwa ya 400 V | 0.8 A |
| ● kwa ajili ya usambazaji mkuu wa nishati | via energy bus |
| ● kwa upande wa mstari wa volteji ya usambazaji | via backplane bus |
| Inawezekana kuweka reli (EF003972) | - |
| thamani iliyokadiriwa ya masafa ya uendeshaji 1 | 50 Hz |
| thamani iliyokadiriwa ya masafa ya uendeshaji 2 | 60 Hz |
| ● kwa ajili ya kijazaji kinachotoka upande wa mzigo | Screw-type terminals |
| ● inasaidia kuzima kwa PROFIenergy | No |
| Uwekaji upya wa nje unawezekana (EF003426) | - |
| muundo wa ulinzi wa mzunguko mfupi | circuit-breakers |
| mawasiliano ya basi ya kazi ya bidhaa | Yes |
| utendaji kazi wa bidhaa mahali pake | Yes |
| unyevunyevu wa jamaa wakati wa operesheni | 5 ... 95 % |
| volteji ya usambazaji 1 kwa thamani iliyokadiriwa ya DC | |
| ● Ingizo za kidijitali zinazoweza kubadilishwa kulingana na vigezo | No |
| ● kwa ajili ya uwasilishaji wa mawasiliano | via backplane bus |
| ● ya kiolesura cha mawasiliano | via backplane bus |
| ● matokeo ya kidijitali yanayoweza kupimwa | No |
| ● kwa ajili ya upitishaji wa volteji ya usambazaji | via backplane bus |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| sehemu ya bidhaa inayotoa breki ya injini | Yes |
| thamani iliyokadiriwa ya upinzani wa volteji ya mawimbi | 6 kV |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RK1301-0HB00-1AA2 |
| Kinga ya EMC kulingana na IEC 60947-1 | corresponds to degree of severity 3, ambience A (industrial sector) |
| Idadi ya taa za kiashiria (EF001965) | - |
| Mkondo wa uendeshaji uliokadiriwa Ie (EF001443) | - |
| Aina ya volteji ya kuamilisha (EF008242) | DC |
| Na kutolewa kwa saketi fupi (EF006691) | true |
| kumbukumbu ya nafasi ya anwani ya masafa ya anwani | |
| aina ya voltage ya voltage ya usambazaji | DC |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Idadi ya nafasi za amri (EF001372) | - |
| Inafaa kwa ajili ya kusimama kwa dharura (EF001433) | - |
| Itifaki inayounga mkono ASI (EF003051) | false |
| Itifaki inayounga mkono CAN (EF003053) | - |
| Itifaki inayounga mkono LON (EF003017) | - |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| msimbo wa marejeleo kulingana na IEC 81346-2 | Q |
| voltage ya usambazaji wa udhibiti katika thamani iliyokadiriwa ya DC | 20.4 ... 28.8 V |
| idadi ya nguzo za saketi kuu ya mkondo | 3 |
| ● inasaidia thamani zilizopimwa za PROFIenergy | No |
| Itifaki inayounga mkono Modbus (EF003057) | - |
| Itifaki inayounga mkono SERCOS (EF006657) | - |
| Itifaki inayounga mkono TCP/IP (EF003050) | - |
| muundo wa itifaki ya kiolesura cha PROFINET | Yes |
| ulinzi wa mzunguko mfupi wa kazi ya bidhaa | Yes |
| Itifaki inayounga mkono SUCONET (EF003060) | - |
| Mpangilio wa mkondo wa kutolewa kwa mzigo kupita kiasi (EF002336) | ['0.55', '0.8'] |
| Itifaki inayounga mkono INTERBUS (EF003054) | - |
| Itifaki inayounga mkono PROFIBUS (EF003052) | - |
| itifaki inaungwa mkono na itifaki ya AS-Interface | No |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV on voltage supply, inputs and outputs |
| Itifaki inayounga mkono DeviceNet (EF003059) | - |
| Itifaki inayounga mkono PROFIsafe (EF007526) | - |
| nguvu ya uendeshaji katika AC-3 kwa thamani iliyokadiriwa ya 400 V | 0.21 kW |
| Nguvu iliyokadiriwa, 460 V, 60 Hz, awamu 3 (EF009600) | - |
| Nguvu iliyokadiriwa, 575 V, 60 Hz, awamu 3 (EF009601) | - |
| aina ya voltage ya voltage ya usambazaji wa udhibiti | DC |
| Itifaki inayounga mkono EtherNet/IP (EF007521) | - |
| Itifaki inayounga mkono PROFINET IO (EF007525) | - |
| Itifaki inayounga mkono ya SafetyBUS p (EF007527) | - |
| ● kwa kiwango cha chini cha mahitaji kulingana na SN 31920 | 50 % |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 400 V (EF001364) | 0.21 |
| Itifaki inayounga mkono ya Barabara Kuu ya Data (EF003058) | - |
| Itifaki inayounga mkono PROFINET CBA (EF007524) | - |
| upotevu wa nguvu [W] katika saketi saidizi na ya udhibiti | |
| ● yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 75 % |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['20.4', '28.8'] |
| EMC ilitoa mwingiliano kulingana na IEC 60947-1 | CISPR11, ambience A (industrial sector) |
| Mkondo wa uendeshaji uliokadiriwa katika AC-3, 400 V (EF009602) | - |
| ● kwenye kiolesura cha kifaa mahususi cha mtengenezaji | plug |
| Itifaki inayounga mkono Usalama wa INTERBUS (EF006662) | - |
| moduli ya breki ya upanuzi wa bidhaa kwa ajili ya udhibiti wa breki | Yes |
| Itifaki inayounga mkono Usalama wa DeviceNet (EF007520) | - |
| kuingiliwa kwa msingi wa uwanja kulingana na IEC 61000-4-3 | 80 MHz ... 1 GHz 10 V/m, 1.4 GHz ...2 Hz 3 V/m, 2 GHz ... 2.7 GHz 1 V/m |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 42D / 42D |
| Itifaki inayounga mkono mifumo mingine ya basi (EF003062) | - |
| nguvu ya uendeshaji kwa motors za awamu 3 kwa 400 V kwa 50 Hz | 0.21 ... 0.21 kW |
| ulinzi wa mguso mbele kulingana na IEC 60529 | finger-safe |
| Halijoto ya mazingira, kikomo cha juu cha uendeshaji (EF009603) | - |
| Thamani ya B10 yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 1 000 000 |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | - |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | - |
| uwezo wa kuvunja mkondo wa juu wa mzunguko mfupi (ICU) | |
| Itifaki inayounga mkono Foundation Fieldbus (EF007522) | - |
| Ulinzi wa overload unaofidiwa na halijoto (EF009604) | - |
| uvumilivu hasi wa masafa ya uendeshaji | 10 % |
| uvumilivu chanya wa masafa ya uendeshaji | 10 % |
| aina ya muunganisho wa umeme kwa mzunguko mkuu wa mkondo | screw-type terminals |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 2 000 m |
| IP ya darasa la ulinzi mbele kulingana na IEC 60529 | IP20 |
| Darasa la uratibu kulingana na IEC 60947-4-3 (EF012390) | Class 2 |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 230 V, awamu 3 (EF009599) | - |
| Aina ya muunganisho wa umeme wa saketi kuu (EF006819) | Screw connection |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV (U > 24 V DC) |
| Itifaki inayounga mkono Usalama wa Kiolesura cha AS Kazini (EF007519) | - |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV (U > 24 V DC) |
| Idadi ya anwani saidizi kama kawaida hufunguliwa (EF001376) | - |
| masafa ya uendeshaji ikilinganishwa na volteji ya uendeshaji katika AC katika 50 Hz | 200 ... 440 V |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 2, 230 V (EF009606) | - |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 2, 400 V (EF009605) | - |
| Idadi ya anwani saidizi kama anwani iliyofungwa kawaida (EF001377) | - |
| voltage ya uendeshaji katika AC katika 60 Hz kulingana na thamani iliyokadiriwa ya CSA na UL | 600 V |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 26.10.2016 |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 1, 480 Y/277 V (EF009607) | - |
| Mkondo wa mzunguko mfupi wa masharti uliokadiriwa, aina ya 1, 600 Y/347 V (EF009608) | - |
| Thamani ya T1 kwa muda wa majaribio ya uthibitisho au maisha ya huduma kulingana na IEC 61508 | 20 y |
| Maisha ya huduma ya mitambo (mizunguko ya kubadili) ya mawasiliano kuu ya kawaida | 100 000 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| upotevu wa nguvu [W] kwa thamani iliyokadiriwa ya mkondo bila mgao wa mkondo wa mzigo wa kawaida | 4.12 W |
| voltage ya juu inayoruhusiwa kwa ajili ya kutengwa salama kati ya mzunguko mkuu na msaidizi | 400 V |
| Aina ya muunganisho wa umeme kwa ajili ya saketi ya mkondo msaidizi na udhibiti (EF006979) | - |
| thamani ya mwitikio wa sasa inayoweza kurekebishwa ya mkondo wa kutolewa kwa mzigo unaotegemea mkondo | 0.55 ... 0.8 A |
| Idhini ya Bidhaa kwa JumlaEMCUthibitishoInatumika katika maeneo hatariTamko la UzingatiajiVyeti vya MtihaninyingineHatariNzuriUKAzimio la UzingatiajiAina ya Vyeti vya Mtihani/Ripoti ya MtihaniUthibitishoTaarifa za Usafiri | General Product Approval |
Maelezo ya Bidhaa
RS1-X FOR ET 200S ELECTROM INVERTER STARTER. EXPANDABLE ADJUSTMENT RANGE 0.55...0.80A AC-3; 0.21 KW/400V. Manufactured to order. Non-Cancelable Non-Returnable.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
