3RK1100-1CQ20-0AA3

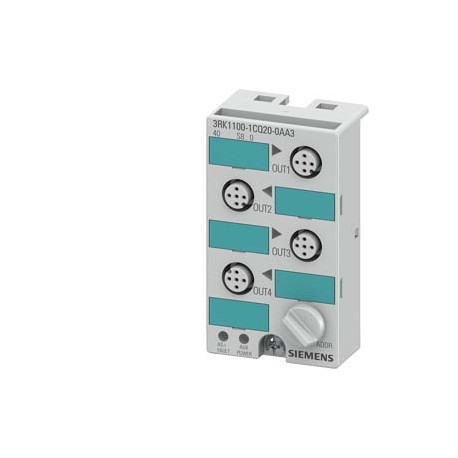

3RK1100-1CQ20-0AA3 SIEMENS AS-i compact module K45 digital 4 DQ, IP67 4 x output, 1 A 24 V DC maximal 3 A fo..
$0.00USD
3677 kwenye hisa
Vipimo Muhimu
:Confirmation
EAN:4011209448797
UPC:754554629513
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Confirmation | |
| EAN | 4011209448797 |
| UPC | 754554629513 |
| ETIM | 5 |
| WAZO | 4 |
| Aina | 4 outputs |
| kina | 30 mm |
| upana | 45 mm |
| Dokezo 1 | An external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits. The additional supply must comply with VDE 0106 (PELV), protection class III. |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 80 mm |
| Matokeo | |
| ● upeo | 3 A |
| Kushughulikia | front addressing socket |
| Msimbo wa Kikundi | R711 |
| ● soketi | PIN 4 = OUT1 (D0) |
| Nambari ya kitambulisho/kitambulisho 2 | 0/F |
| Tarehe 5/5/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kipengele cha Chuma | None |
| ● soketi 2 | PIN 4 = OUT2 (D1) |
| ● soketi 3 | PIN 4 = OUT3 (D2) |
| ● soketi 4 | PIN 4 = OUT4 (D3) |
| ● mlinzi | built-in |
| Dokezo la uwasilishaji | the modules are delivered without mounting plate |
| Saketi ya kuingiza data | PNP transistor |
| Kundi la Bidhaa | 3720 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85371098 |
| Familia ya bidhaa | Digital I/O modules, IP67 - K45 |
| Onyesho la hali | |
| ilibadilishwa mara ya mwisho: | 3/11/2021 |
| Kituo cha chini ya ardhi | Using PIN5 on the M12 sockets. Outgoing via flat tab sleeve (2.8 x 0.8 mm form A) |
| Uzito Halisi (kg) | 0,086 Kg |
| Kina (EF000049) | 30.0 |
| Upana (EF000008) | 45.0 |
| mbinu ya kufunga | standard rail mounting/wall mounting using mounting plate for K45 compact module |
| upinzani wa mshtuko | 15g / 11 ms |
| Nchi ya asili | Czech Republic |
| Urefu (EF000040) | 80.0 |
| Usanidi wa I/O | 8 |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Soketi za I/O za nambari | 4 |
| Kiasi cha Ufungashaji | 1 |
| ● wakati wa kuhifadhi | -40 ... +85 °C |
| Vipimo vya Ufungashaji | 50,00 x 108,00 x 45,00 |
| Maelezo ya Bidhaa | AS-i compact module K45 digital 4 DQ, IP67 4 x output, 1 A 24 V DC maximal 3 A for all outputs 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately |
| halijoto ya mazingira | |
| IP ya darasa la ulinzi | IP67 |
| ● onyesho la I/Os | yellow LED |
| ● onyesho la Uaux | green LED |
| ● wakati wa operesheni | -25 ... +85 °C |
| muundo wa bidhaa | digital I/O modules for operation in the field, IP67 - K45 |
| Ugawaji wa biti za data | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| Idhini ya Jumla ya Bidhaa | EMC |
| muundo wa aina ya mtumwa | standard slave |
| idadi ya pembejeo za kidijitali | 0 |
| aina ya matokeo ya kubadili | PNP transistor |
| ● ulinzi wa induction | built-in |
| Kiungo kikuu cha IO (EF007298) | false |
| Mkondo wa kutoa (EF003202) | 1.0 |
| Matokeo ya jumla ya mkondo | |
| Ugawaji wa soketi za matokeo | 3 = "-", 4 = output, 5 = ground terminal |
| idadi ya matokeo ya kidijitali | 4 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Kazi za zamani za muda wa kawaida | 120 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Kifaa cha mfumo (EF004118) | true |
| ● ulinzi wa mzunguko mfupi | built-in |
| Kipimo cha ukubwa wa kifurushi | MM |
| Volti ya usambazaji DC (EF007534) | ['-', '-'] |
| GSM ya kawaida ya redio (EF008524) | false |
| aina ya teknolojia ya muunganisho | 2- and 3-wire technology |
| Kiwango cha redio cha GPRS (EF008523) | false |
| Kiwango cha redio cha UMTS (EF008525) | false |
| Kuunganisha raki kunawezekana (EF007018) | false |
| Inawezekana kuweka reli (EF003972) | FALSE |
| Aina ya matokeo ya kidijitali (EF003601) | Other |
| Aina ya volteji ya kutoa (EF008222) | DC / DC |
| Na kiolesura cha macho (EF003028) | false |
| ● katika halijoto ya kawaida 40 °C | 200 mA |
| Ujenzi wa mbele unaowezekana (EF007016) | false |
| Volti ya usambazaji AC 50 Hz (EF007532) | ['-', '-'] |
| Volti ya usambazaji AC 60 Hz (EF007533) | ['-', '-'] |
| aina ya voltage ya voltage za pato | DC |
| Idadi ya pembejeo za kidijitali (EF001992) | 0 |
| Bluetooth ya kawaida ya redio (EF007178) | false |
| Kiwango cha juu cha ingizo la sasa la kiolesura cha AS | 45 mA |
| Kiwango cha ulinzi (IP) (EF005474) | IP67 |
| Ingiza mkondo kwenye ishara 1 (EF001428) | - |
| Idadi ya matokeo ya kidijitali (EF001993) | 4 |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RK1100-1CQ20-0AA3 |
| Hutoa umeme wa nje 24 V DC | using black AS-Interface flat cable |
| Volti inayoruhusiwa wakati wa kuingiza (EF007554) | ['-', '-'] |
| Kiwango cha redio cha WLAN 802.11 (EF007179) | false |
| SIL kulingana na IEC 61508 (EF009889) | - |
| Ingizo za kidijitali zinazoweza kusanidiwa (EF008516) | FALSE |
| Idadi ya violesura vya HW USB (EF003025) | 0 |
| Volti inayoruhusiwa wakati wa kutoa (EF007553) | ['-', '-'] |
| Itifaki inayounga mkono ASI (EF003051) | true |
| Itifaki inayounga mkono CAN (EF003053) | false |
| Itifaki inayounga mkono KNX (EF003055) | false |
| Itifaki inayounga mkono LON (EF003017) | false |
| Aina ya muunganisho wa umeme (EF003961) | Screw connection |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| Matokeo ya kidijitali yanayoweza kusanidiwa (EF008520) | false |
| Usambazaji wa vitambuzi vya kuingiza data kwa kutumia AS-Interface | short-circuit and overload resistant |
| ● onyesho la AS-Interface/diagnostics | green/red dual LED |
| Idadi ya violesura vingine vya HW (EF003027) | 0 |
| Idadi ya violesura vya PROFINET (EF006932) | 0 |
| Inafaa kwa kazi za usalama (EF001597) | false |
| Kuchelewa kwa muda katika ubadilishanaji wa mawimbi (EF002382) | ['-', '-'] |
| Upachikaji/upachikaji wa moja kwa moja ukutani (EF007020) | FALSE |
| Kategoria kulingana na EN 954-1 (EF006782) | - |
| Idadi ya violesura vya HW RS-232 (EF003021) | 0 |
| Idadi ya violesura vya HW RS-422 (EF003022) | 0 |
| Idadi ya violesura vya HW RS-485 (EF003023) | 0 |
| Itifaki inayounga mkono Modbus (EF003057) | false |
| Itifaki inayounga mkono SERCOS (EF006657) | false |
| Itifaki inayounga mkono TCP/IP (EF003050) | false |
| Aina ya volteji ya volteji ya usambazaji (EF002991) | DC |
| Itifaki inayounga mkono SUCONET (EF003060) | false |
| Aina ya volteji (volteji ya kuingiza) (EF003033) | #NO_DATA# / DC |
| sifa ya uthibitisho wa mzunguko mfupi wa matokeo | Yes |
| Idadi ya violesura vya HW Visivyotumia Waya (EF006933) | 0 |
| Idadi ya violesura vya HW sambamba (EF003026) | 0 |
| Itifaki inayounga mkono INTERBUS (EF003054) | false |
| Itifaki inayounga mkono PROFIBUS (EF003052) | false |
| muundo wa mgawo wa pini wa matokeo | standard assignement |
| Wakala wa uendeshaji wa kiambatisho (Ex ia) (EF004141) | - |
| Wakala wa uendeshaji wa kiambatisho (Mfano ib) (EF004142) | - |
| Jamii ya usalama wa mlipuko wa gesi (EF003997) | None |
| Itifaki inayounga mkono DeviceNet (EF003059) | false |
| Itifaki inayounga mkono PROFIsafe (EF007526) | false |
| ukubwa wa usambazaji wa kitambuzi kwa pembejeo zote | |
| Jamii ya usalama wa mlipuko kwa vumbi (EF003998) | None |
| Idadi ya violesura vya HW mfululizo TTY (EF003024) | 0 |
| Itifaki inayounga mkono EtherNet/IP (EF007521) | false |
| Itifaki inayounga mkono PROFINET IO (EF007525) | false |
| Itifaki inayounga mkono ya SafetyBUS p (EF007527) | false |
| Itifaki inayounga mkono ya Barabara Kuu ya Data (EF003058) | false |
| Itifaki inayounga mkono PROFINET CBA (EF007524) | false |
| Itifaki inayounga mkono Usalama wa INTERBUS (EF006662) | false |
| Itifaki inayounga mkono Usalama wa DeviceNet (EF007520) | false |
| Kiolesura cha AS Muunganisho Ulinzi wa kugeuza Polariti | built-in |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 42C / 42C |
| Itifaki inayounga mkono mifumo mingine ya basi (EF003062) | false |
| ukubwa wa pato la semiconductor katika DC-13 katika 24 V | 1 A |
| Idadi ya Ethaneti ya viwandani ya HW-interfaces (EF003020) | 0 |
| Ulinzi wa mzunguko mfupi, matokeo yanapatikana (EF003203) | true |
| Itifaki inayounga mkono Foundation Fieldbus (EF007522) | false |
| aina ya muunganisho wa umeme wa pembejeo na matokeo | M12 screw-type terminals |
| Kiwango cha utendaji kulingana na EN ISO 13849-1 (EF007399) | - |
| voltage ya uendeshaji kulingana na uainishaji wa AS-Interface | 26.5 ... 31.6 V |
| Itifaki inayounga mkono Usalama wa Kiolesura cha AS Kazini (EF007519) | false |
| Muunganisho wa basi la Fieldbus juu ya kiunganishi tofauti cha basi unawezekana (EF004002) | - |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.05.2012 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Idhini ya Bidhaa kwa JumlaEMCDTangazo la UzingatiajiUthibitisho wa Baharini / UsafirishajinyingineUthibitisho Mbalimbali | General Product Approval |
