3RF2920-0GA13

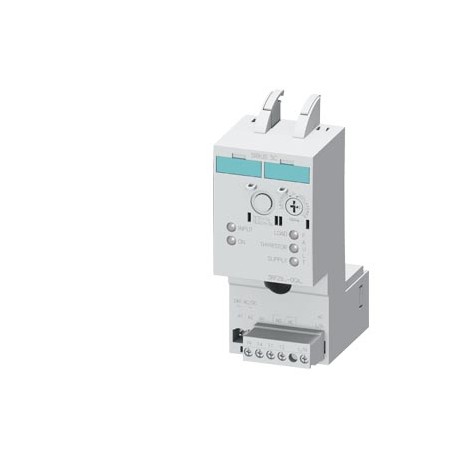

3RF2920-0GA13 SIEMENS Load monitoring Current range 20 A / 40 °C 110-230 V / 24 V AC/DC for semiconductor re..
$0.00USD
3959 kwenye hisa
Vipimo Muhimu
:
EAN:4011209581074
UPC:754554899688
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| EAN | 4011209581074 |
| UPC | 754554899688 |
| ETIM | 5 |
| kina | 69.5 mm |
| upana | 45 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 111.5 mm |
| — imara | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| ● katika AC | 2 mA |
| ● katika DC | 24 V |
| Msimbo wa Kikundi | R711 |
| Kipengele cha Chuma | None |
| ● kwa 50 Hz | 93.5 ... 253 V |
| ● kwa 60 Hz | 93.5 ... 253 V |
| Tarehe 5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kundi la Bidhaa | 3726 |
| Darasa la bidhaa | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Kitengo cha Kiasi | 1 Piece |
| Nambari ya Bidhaa | 85364900 |
| Familia ya bidhaa | SIRIUS 3RF29 function modules |
| ilibadilishwa mara ya mwisho: | 10/6/2021 |
| Uzito Halisi (kg) | 0,128 Kg |
| aina ya volteji | AC/DC |
| mbinu ya kufunga | clip-on |
| kazi ya bidhaa | solid-state relay / solid-state contactor 3RF2 |
| Nchi ya asili | Czech Republic |
| Vyeti vya Mtihani | other |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -55 ... +80 °C |
| Vipimo vya Ufungashaji | 48,00 x 89,00 x 116,00 |
| Maelezo ya Bidhaa | extended load monitoring current range 20 A / 40 °C 110 … 230 V 24 V AC/DC for semiconductor relay / contactor |
| halijoto ya mazingira | |
| kiwango cha uchafuzi wa mazingira | 3 |
| mkondo wa uendeshaji | |
| uteuzi wa bidhaa | extended load monitoring |
| joto linalopungua | 40 °C |
| ● wakati wa operesheni | -25 ... +60 °C |
| ● kwa thamani iliyokadiriwa na DC | 24 V |
| kuingiliwa kunakofanywa | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| voltage ya uendeshaji katika AC | |
| Idhini ya Jumla ya Bidhaa | EMC |
| volteji ya usambazaji wa udhibiti 1 | |
| ● kwa thamani iliyokadiriwa ya Hz 50 | 110 ... 230 V |
| ● kwa thamani iliyokadiriwa ya 60 Hz | 110 ... 230 V |
| ● kwa thamani iliyokadiriwa ya AC-51 | 20 A |
| ● upachikaji wa kando kwa kando | Yes |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| Toleo la kawaida (EF001126) | true |
| Kazi za zamani za muda wa kawaida | 2 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| Kipimo cha ukubwa wa kifurushi | MM |
| voltage ya usambazaji wa udhibiti katika AC | |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 05/01/2012 |
| nambari ya makala ya mtengenezaji | |
| aina ya muunganisho wa umeme | |
| volteji ya usambazaji wa udhibiti 1 kwenye AC | |
| thamani iliyokadiriwa ya voltage ya insulation | 600 V |
| thamani iliyokadiriwa ya masafa ya uendeshaji | 50 ... 60 Hz |
| muundo wa kitendakazi cha kubadili | CO contact |
| mkondo wa kudhibiti kwa thamani iliyokadiriwa na AC | 40 mA |
| mkondo wa kudhibiti kwa thamani iliyokadiriwa ya DC | 40 mA |
| Aina Vyeti vya Mtihani/Ripoti ya Mtihani | Confirmation |
| uvumilivu wa masafa ya mstari wenye ulinganifu | 5 Hz |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RF2920-0GA13 |
| Nguvu ya uendeshaji iliyokadiriwa NEMA (EF011960) | - |
| Aina ya volteji ya kuamilisha (EF008242) | AC/DC |
| ● kwa saketi saidizi na ya kudhibiti | screw-type terminals |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| ● kwa mawasiliano saidizi na ya kudhibiti | |
| idadi ya anwani za NC kwa anwani kuu | 0 |
| idadi ya anwani HAKUNA kwa anwani kuu | 0 |
| msimbo wa marejeleo kulingana na IEC 81346-2 | B |
| voltage ya usambazaji wa udhibiti katika thamani iliyokadiriwa ya DC | 18 ... 30 V |
| idadi ya nguzo za saketi kuu ya mkondo | 0 |
| ● kutokana na mlipuko kulingana na IEC 61000-4-4 | 2 kV / 5 kHz behavior criterion 2 |
| idadi ya anwani za CO kwa anwani saidizi | 1 |
| idadi ya anwani za NC kwa anwani za usaidizi | 1 |
| idadi ya anwani HAKUNA kwa anwani saidizi | 1 |
| upinzani wa mshtuko kulingana na IEC 60068-2-27 | 15g / 11 ms |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| — imekwama vizuri na usindikaji wa sehemu ya msingi | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| ● _1 ya vifaa vinavyoweza kuagizwa | 3RF2900-0RA88 |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 400 V (EF001364) | - |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-4, 400 V (EF008496) | - |
| upinzani wa mtetemo kulingana na IEC 60068-2-6 | 2g |
| — imekwama vizuri bila usindikaji wa sehemu ya msingi | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['18', '30'] |
| mkondo wa kudhibiti kwa kiwango cha chini cha voltage ya usambazaji wa udhibiti | |
| kutokwa kwa umemetuamo kulingana na IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-1, 400 V (EF001393) | 20 |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-3, 400 V (EF001392) | - |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-4, 400 V (EF008495) | - |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41C / 41C |
| upinzani wa volteji ya kuongezeka kwa thamani iliyokadiriwa ya mzunguko mkuu | 2.5 kV |
| ulinzi wa mguso mbele kulingana na IEC 60529 | finger-safe, for vertical contact from the front |
| ● kwenye nyaya za AWG kwa ajili ya mawasiliano saidizi na ya kudhibiti | 1x (AWG 20 ... 12) |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | ['20.5', '26.5'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | ['20.5', '26.5'] |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 1 000 m |
| kiwango cha uendeshaji ikilinganishwa na volteji ya uendeshaji katika AC | |
| IP ya darasa la ulinzi mbele kulingana na IEC 60529 | IP20 |
| ● kwa thamani kamili ya Hz 50 kwa utambuzi wa mawimbi<0> | 5 V |
| ● kwa thamani kamili ya Hz 60 kwa utambuzi wa mawimbi<0> | 5 V |
| Aina ya muunganisho wa umeme wa saketi kuu (EF006819) | - |
| uzalishaji wa kuingiliwa kwa HF kulingana na CISPR11 | Class A for industrial environment |
| utoaji wa kuingiliwa kwa HF unaoelekea shambani kulingana na CISPR11 | Class B for the domestic, business and commercial environments |
| uvumilivu wa ulinganifu wa masafa ya uendeshaji | 10 % |
| Idadi ya anwani kuu kama kawaida hufunguliwa (EF001374) | 0 |
| ● kutokana na kuongezeka kwa kondakta-ardhi kulingana na IEC 61000-4-5 | 2 kV behavior criterion 2 |
| Idadi ya anwani zilizofungwa kawaida kama anwani kuu (EF001375) | 0 |
| ● kutokana na mionzi ya masafa ya juu kulingana na IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| urefu wa kebo iliyokatwa kwa ajili ya mawasiliano saidizi na ya kudhibiti | 7 mm |
| ● kutokana na ongezeko la kondakta-kondakta kulingana na IEC 61000-4-5 | 1 kV behavior criterion 2 |
| Idadi ya anwani saidizi kama kawaida hufunguliwa (EF001376) | 1 |
| Idadi ya anwani saidizi kama anwani iliyofungwa kawaida (EF001377) | 1 |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.05.2012 |
| masafa ya volteji ya usambazaji kwa thamani iliyokadiriwa ya mzunguko msaidizi na wa udhibiti | 50 ... 60 Hz |
| volteji ya usambazaji wa udhibiti katika thamani kamili ya DC kwa utambuzi wa ishara<0> | 5 V |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| torque ya kukaza kwa mawasiliano ya msaidizi na ya kudhibiti yenye vituo vya aina ya skrubu | 0.5 ... 0.6 N·m |
| upotevu wa nguvu [W] kwa thamani iliyokadiriwa ya mkondo bila mgao wa mkondo wa mzigo wa kawaida | 1 W |
| muundo wa uzi wa skrubu ya muunganisho wa anwani za usaidizi na udhibiti | M3 |
| torque ya kukaza [lbf·in] kwa ajili ya mawasiliano saidizi na ya kudhibiti yenye vituo vya aina ya skrubu | 4.5 ... 5.3 lbf·in |
| Idhini ya Jumla ya BidhaaEMCDTangazo la UzingatiajiUthibitishoVyeti vya MtihaninyingineAinaVyeti vya Mtihani/Ripoti ya MtihaniUthibitisho | General Product Approval |
