3RA2425-8XF32-1AG2

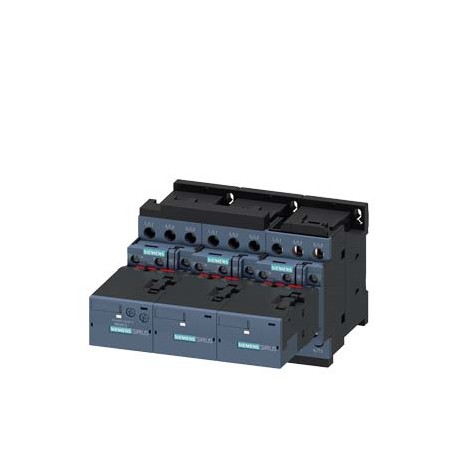

3RA2425-8XF32-1AG2 SIEMENS Contactor assembly for star-delta (wye-delta) start AC-3, 15/18 kW/400 V, 110 V A..
$0.00USD
3296 kwenye hisa
Vipimo Muhimu
:
EAN:4011209838628
UPC:662643903980
ETIM:5
Taarifa za Msambazaji
SIEMENS
Bidhaa: 367174
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| EAN | 4011209838628 |
| UPC | 662643903980 |
| ETIM | 5 |
| WAZO | 4 |
| kina | 171 mm |
| nyingine | Railway |
| upana | 135 mm |
| UNSPSC | 14 |
| Darasa la mtandaoni | 6 |
| urefu | 101 mm |
| — imara | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● katika AC | 7,5g / 5 ms, 4,7g / 10 ms |
| ● katika DC | 10g / 5 ms, 7,5g / 10 ms |
| Msimbo wa Kikundi | R711 |
| — juu | 6 mm |
| ● katika AC-3 | |
| Uthibitisho | |
| Kipengele cha Chuma | LCO----- |
| — washambuliaji | 6 mm |
| ● kwa 50 Hz | 0.8 ... 1.1 |
| ● kwa 60 Hz | 0.8 ... 1.1 |
| Tarehe 5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Kundi la Bidhaa | 5339 |
| Darasa la bidhaa | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Kitengo cha Kiasi | 1 Piece |
| — nyuma | 0 mm |
| — chini | 6 mm |
| Nambari ya Bidhaa | 85364900 |
| Familia ya bidhaa | SIRIUS 3RA24 contactor assemblies for star-delta (wye-delta) starting, up to 90 kW |
| ilibadilishwa mara ya mwisho: | 12/1/2021 |
| Uzito Halisi (kg) | 1,880 Kg |
| nguvu ya uendeshaji | |
| — pembeni | 6 mm |
| mbinu ya kufunga | screw and snap-on mounting onto 35 mm standard mounting rail |
| nafasi inayohitajika | |
| Nchi ya asili | Germany |
| nafasi ya kupachika | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| ukubwa wa kigusa | S0 |
| LKZ_FDB/ Kitambulisho cha Katalogi | CC-IC10 |
| Kiasi cha Ufungashaji | 1 |
| jina la chapa ya bidhaa | SIRIUS |
| ● wakati wa kuhifadhi | -55 ... +80 °C |
| ● kwa sehemu za moja kwa moja | |
| ● ya koili ya sumaku | Screw-type terminals |
| Kitendakazi (EF000030) | Star-delta contactor |
| Vipimo vya Ufungashaji | 246,00 x 326,00 x 222,00 |
| Maelezo ya Bidhaa | Contactor assembly for star-delta (wye-delta) start AC-3, 15/18 kW/400 V, 110 V AC 50/60 Hz, 3-pole Size S0, screw terminals electrical and mechanical interlock 3 NO + 3 NC integrated |
| halijoto ya mazingira | |
| uteuzi wa bidhaa | Contactor assembly for star-delta (wye-delta) start |
| ● wakati wa operesheni | -25 ... +60 °C |
| — imara au imekwama | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● kwa anwani kuu | |
| ● kwa sehemu zilizowekwa ardhini | |
| Mzunguko wa Maisha wa Bidhaa (PLM) | PM300:Active Product |
| muundo wa kiungo cha fuse | |
| Idhini ya Jumla ya Bidhaa | Declaration of Conformity |
| uainishaji wa aina ya bidhaa | 3RA24 |
| — kwa thamani iliyokadiriwa ya 400 V | 15 kW |
| — kwa thamani iliyokadiriwa ya 500 V | 19 kW |
| — kwa thamani iliyokadiriwa ya 690 V | 19 kW |
| ● kwa thamani iliyokadiriwa ya 400 V | 40 A |
| ● kwa thamani iliyokadiriwa ya Hz 50 | 110 V |
| ● kwa thamani iliyokadiriwa ya 60 Hz | 110 V |
| ● ya kawaida ya kigusa | 10 000 000 |
| ● mgusano wa papo hapo | 3 |
| Kanuni za Udhibiti wa Usafirishaji Nje | AL : N / ECCN : N |
| ● kwa mawasiliano saidizi | |
| Kazi za zamani za muda wa kawaida | 20 Day/Days |
| Ada ya Ziada kwa Malighafi | None |
| mkondo wa uendeshaji katika AC-3 | |
| Kipimo cha ukubwa wa kifurushi | MM |
| ● kwa saketi kuu ya mkondo | screw-type terminals |
| Kizuizi cha Dawa za Kulevya (Tarehe) | 10/01/2009 |
| nambari ya makala ya mtengenezaji | |
| aina ya muunganisho wa umeme | |
| volteji ya usambazaji wa udhibiti 1 kwenye AC | |
| ● na upachikaji wa kando kwa kando | |
| ● 1 ya kiunganishi kilichotolewa | 3RT2026-1AG20 |
| ● 2 ya kiunganishi kilichotolewa | 3RT2026-1AG20 |
| ● 3 ya kiunganishi kilichotolewa | 3RT2024-1AG20 |
| uwiano wa kushindwa hatari | |
| upinzani wa mshtuko kwa kutumia mapigo ya sine | |
| swichi saidizi ya ugani wa bidhaa | No |
| mawasiliano ya basi ya kazi ya bidhaa | No |
| masafa ya uendeshaji katika kiwango cha juu cha AC-3 | 1 000 1/h |
| ● kwenye nyaya za AWG kwa ajili ya mawasiliano kuu | 2x (16 ... 12), 2x (14 ... 8) |
| ● ya vifaa vya kuunganisha RS vilivyotolewa | 3RA2923-2BB1 |
| Kiwango cha ulinzi (IP) (EF005474) | IP20 |
| Nambari ya Makala (Nambari Inayoelekea Soko) | 3RA2425-8XF32-1AG2 |
| Nguvu ya uendeshaji iliyokadiriwa NEMA (EF011960) | - |
| Aina ya volteji ya kuamilisha (EF008242) | AC |
| ● kwa saketi saidizi na ya kudhibiti | screw-type terminals |
| Kiwango cha ulinzi (NEMA) (EF011959) | - |
| Wajibu wa Kuchukua Hatua za Kurudishwa kwa WEEE (2012/19/EU) | Yes |
| — ikiwa na aina ya kazi 2 inahitajika | gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A |
| idadi ya anwani za NC kwa anwani kuu | 0 |
| idadi ya anwani HAKUNA kwa anwani kuu | 3 |
| msimbo wa marejeleo kulingana na IEC 81346-2 | Q |
| upinzani wa mshtuko kwenye msukumo wa mstatili | |
| ● kwenye kigusa kwa ajili ya mawasiliano saidizi | Screw-type terminals |
| idadi ya nguzo za saketi kuu ya mkondo | 3 |
| — kwa aina ya uratibu 1 inahitajika | gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 100 A |
| ● kwenye nyaya za AWG kwa ajili ya mawasiliano saidizi | 2x (20 ... 16), 2x (18 ... 14) |
| uaminifu wa mawasiliano ya mawasiliano saidizi | < 1 error per 100 million operating cycles |
| Maisha ya huduma ya mitambo (mizunguko ya kubadilisha) | |
| Nguvu inayoonekana ya kushikilia koili ya sumaku kwenye AC | |
| nguvu inayoonekana ya kuchukua koili ya sumaku kwenye AC | |
| itifaki inaungwa mkono na itifaki ya AS-Interface | No |
| idadi ya anwani za NC kwa anwani za usaidizi | |
| idadi ya anwani HAKUNA kwa anwani saidizi | |
| aina ya sehemu tambazo za kondakta zinazoweza kuunganishwa | |
| — imekwama vizuri na usindikaji wa sehemu ya msingi | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| volteji ya uendeshaji katika kiwango cha juu cha thamani kilichokadiriwa na AC-3 | 690 V |
| aina ya voltage ya voltage ya usambazaji wa udhibiti | AC |
| ● kwa kiwango cha chini cha mahitaji kulingana na SN 31920 | 40 % |
| Nguvu ya uendeshaji iliyokadiriwa katika AC-3, 400 V (EF001364) | 18.5 |
| ● yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 75 % |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us katika DC (EF003980) | ['-', '-'] |
| Mkondo wa uendeshaji uliokadiriwa Yaani katika AC-3, 400 V (EF001392) | 40 |
| Kikundi Maalum cha Bei cha Mkoa / Kikundi cha Bei cha Makao Makuu | 41B / 41B |
| ukadiriaji wa mawasiliano ya anwani saidizi kulingana na UL | A600 / Q600 |
| ulinzi wa mguso mbele kulingana na IEC 60529 | finger-safe, for vertical contact from the front |
| ● kwa ajili ya ulinzi wa mzunguko mfupi wa mzunguko mkuu | |
| Thamani ya B10 yenye kiwango cha juu cha mahitaji kulingana na SN 31920 | 1 000 000 |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 50HZ (EF003978) | ['-', '110'] |
| Volti ya usambazaji wa udhibiti iliyokadiriwa Us kwa AC 60HZ (EF003979) | ['-', '110'] |
| kipengele cha nguvu cha kufata chenye nguvu ya kufunga ya koili | |
| urefu wa ufungaji katika urefu juu ya usawa wa bahari | 2 000 m |
| kiolesura cha mzunguko wa udhibiti wa utendaji wa bidhaa chenye kiungo cha IO | No |
| IP ya darasa la ulinzi mbele kulingana na IEC 60529 | IP20 |
| Aina ya muunganisho wa umeme wa saketi kuu (EF006819) | Screw connection |
| kipengele cha nguvu ya kufata chenye nguvu ya kushikilia ya koili | |
| ● ya moduli ya chaguo-msingi iliyotolewa kwa saketi za wye-delta | 3RA2816-0EW20 |
| kiwango cha kushindwa [FIT] chenye kiwango cha chini cha mahitaji kulingana na SN 31920 | 100 FIT |
| ● ya kigusanishi chenye kizuizi cha swichi saidizi kilichoongezwa kawaida | 10 000 000 |
| ● kwa ajili ya ulinzi wa mzunguko mfupi wa swichi saidizi unaohitajika | fuse gG: 10 A |
| Kuzingatia vikwazo vya dutu kulingana na maagizo ya RoHS | Since: 01.10.2009 |
| Kifungu cha 33 cha REACH Wajibu wa kutoa taarifa kulingana na orodha ya sasa ya wagombea | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| thamani ya volteji ya usambazaji wa koili ya sumaku kwenye AC | |
| Idhini ya Jumla ya BidhaaTamko la UzingatiajiVyeti vya MtihaniUthibitisho wa Baharini / UsafirishajiUthibitisho wa Uingereza wa UzingatiajiCheti Maalum cha Mtihani wa Baharini / UsafirishajinyingineReliUthibitishoMtetemo na Mshtuko | General Product Approval |
Maelezo ya Bidhaa
SIRIUS Innovations Star-Triangle AC3, 15/18, 5KW/400V AC 110V, 50/60 HZ, S0, Enclav screw connection. electrical and mechanical. Manufactured to order. Non-Cancelable Non-Returnable.
