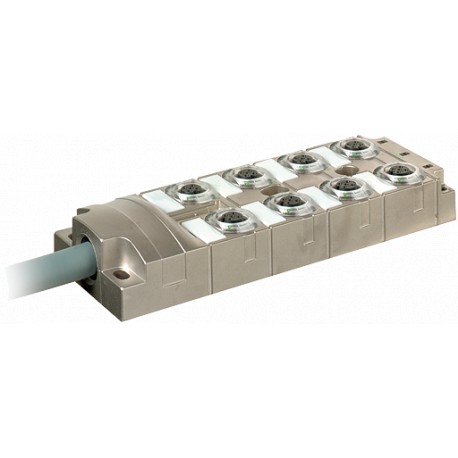

27591 MURRELEKTRONIK MVP-METALL, 8XM12, 5 pole, pre-wired cable 10.0m PUR 16x0,34 + 5x0,75, UL/CSA
$0.00USD
4911 kwenye hisa
Vipimo Muhimu
:LED (green): Power / LED (yellow): (S1/S2) / LED (red): Failure
AWG:similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
EAN:4048879063470
PIN 1:(+)
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| LED (green): Power / LED (yellow): (S1/S2) / LED (red): Failure | |
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| EAN | 4048879063470 |
| PIN 1 | (+) |
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| Ngao | yes |
| Darasa la mtandaoni | 27279219 |
| Nyumba | Zinc die casting, matte nickel plated |
| Ø ya Nje | 11.5 mm ±5% |
| Ulinzi | IP65, IP67, IP68 inserted and tightened (EN 60529) |
| Onyesho la LED | LED (green): P1 and P2; LED (red): ERROR for optical diagnostics |
| Nambari ya kebo | 403 |
| Rangi ya Jaketi | gray |
| Volti ya majaribio | 2000 V AC |
| Jumla ya mkondo | max. 10 A |
| Kitengo cha ufungashaji | 1 |
| Kutengwa kwa waya | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye) |
| Kipenyo (kiini) | 16× 0.34 + 5× 0.75 mm² |
| Uwezo wa kuingia haraka | max. 1470 µF |
| Nyenzo (waya) | Cu wire, bare |
| Volti ya kawaida | 300/500 V AC |
| Kipingamizi (kiini) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Ulinzi wa kitengo | pulse switching |
| Idhini (kebo) | UL (AWM-Style 20233/10042), CSA; CE conform |
| Kufunga milango | Screw thread (M12×1 mm) |
| Matokeo ya utambuzi | active high, max. load 25 mA, wire (brown 2) |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | 24 V DC (EN 61131-2), potential separation 0 V for left/right side |
| Kiwango cha halijoto | -20...+60 °C |
| nchi ya asili | CZ |
| Sifa za C-track | 5 Mio. |
| Vipimo H×W×D | 145×55×21 mm |
| Radius ya kupinda (imerekebishwa) | 5× outer Ø |
| Matumizi ya sasa | max. 35 mA |
| Pinda radius (inayosogea) | 10× outer Ø |
| Onyesho la LED kwa kila lango | LED (yellow): contact 4 and 2; 2× LED (red): for failure |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi/kipenyo cha waya | 16× 0.34 + 5× 0.75 mm² |
| Waya moja Ø (kiini) | 0.1 mm |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 5 m/s² |
| Maelezo ya utendaji kazi | All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-reseting). Supply voltage of other ports remains the same. In case of a fault the DIAGNOSTIC signal “active high” |
| Kasi ya usafiri (C-track) | max. 2 m/s |
| Ugumu wa pwani (koti) | 85 ±5 A |
| Nyenzo (kutengwa kwa waya) | TPE-E |
| Kiwango cha halijoto (kisichobadilika) | -40...+90 °C |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji (mgusano 3) | max. 2 A (shutoff 2.3...2.7 A) |
| Idadi ya mizunguko ya kupinda (C-track) | max. 5 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 55 ±5 D |
| Ugavi wa umeme unaohitajika wenye milango ya juu zaidi | max. 20 A |
Maelezo ya Bidhaa
MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE10.0m PUR 16x0,34+5x0,75, UL/CSA
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
