1SCA022719R1900

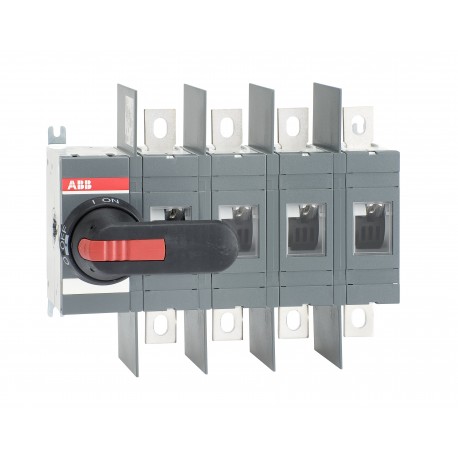

1SCA022719R1900 ABB Switch disconnector OT400U04P
$0.00USD
3203 kwenye hisa
Vipimo Muhimu
:1SCC301263F0002
ETIM 7:EC000216 - Switch disconnector
ETIM 8:EC000216 - Switch disconnector
ETIM 9:EC000216 - Switch disconnector (low voltage)
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 1SCC301263F0002 | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Darasa la mtandaoni | V11.1 : 27371403 |
| Aina ya Kufunga | Yes |
| Viwango | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Kupoteza Nguvu | at Rated Operating Conditions per Pole 10 W |
| Aina ya Kipini | Handle and shaft included |
| Hali ya RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Rangi ya Kipini | Black |
| Ukadiriaji wa Ampere | 400 A |
| Aina ya Kuweka | Base mounting |
| Aina ya Kituo | Lug terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha BV | 1SCC301103D0201 |
| Cheti cha GL | 1SCC301139D0201 |
| Cheti cha LR | 1SCC301144D0201 |
| Hali ya Uendeshaji | Front operated |
| Upana wa Kituo | 25 mm |
| Cheti cha UL | cULus certificate OT200-400 |
| Idadi ya Nguzo | 4 |
| Aina ya Ncha ya Nne | Switched - Simultaneous Function |
| Shahada ya Uchafuzi | 3 |
| Taarifa za RoHS | 1SCC011020D0201 |
| Nchi ya Asili | Finland (FI) |
| Upana Halisi wa Bidhaa | 275 mm |
| Tamko la REACH | 1SCC011021D0201 |
| Kazi Maalum | No |
| Kukaza Torque | acc. IEC 60947-1 42.4N·m |
| Nambari ya Kielektroniki (Ufini) | 3660855 |
| Urefu Halisi wa Bidhaa | 220 mm |
| Uzito Halisi wa Bidhaa | 4 kg |
| Michoro ya Mitambo | 1SCC301264F0002 |
| Kifurushi cha Kiwango cha 1 EAN | 6417019230795 |
| Kiwango cha Ulinzi | Front IP00 |
| Nafasi ya Ncha ya Nne | Right Side |
| Nambari ya Ushuru wa Forodha | 85365080 |
| Uimara wa Kimitambo | 16000 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 250 mm |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 170 mm |
| Umbali Kati ya Awamu | Standard |
| Maagizo ya Mwisho wa Maisha | 1SCC301118M0201 |
| Ukadiriaji wa Nguvu za Farasi UL/CSA | (acc. to UL 200 V) 100 Hp |
| Maelekezo na Miongozo | 1SCC301035M0019 |
| Taarifa za Mazingira | 1SCC301266D0201 |
| Volti ya Uendeshaji Iliyokadiriwa | Main Circuit 1000 V |
| Msimbo wa Uainishaji wa Vitu | Q |
| Nafasi ya Vituo vya Mstari | Top In - Bottom Out |
| Kina Halisi cha Bidhaa / Urefu | 105 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 4.3 kg |
| Mfumo wa Uendeshaji wa Swichi | Mechanism at the End of the Switch |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Azimio la Uzingatiaji - CE | 1SCC301135D2704 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 290 mm |
| Kiwango cha Juu cha Volti ya Uendeshaji UL/CSA | 600 V |
| Karatasi ya Data, Taarifa za Kiufundi | 1SCC301020C0201 |
| Mkondo wa Joto wa Kawaida (Ithe) | Fully Enclosed 400 A |
| Nguvu ya Uendeshaji Iliyokadiriwa AC-23A (Pe) | (380 ... 415 V) 220 kW |
| Sheria ya Kudhibiti Vitu vya Sumu - TSCA | 1SCC011025D0201 |
| Uendeshaji wa Sasa Uliokadiriwa AC-21A (Yaani) | (380 ... 415 V) 400 A |
| Uendeshaji wa Sasa Uliokadiriwa AC-22A (Yaani) | (380 ... 415 V) 400 A |
| Uendeshaji wa Sasa Uliokadiriwa AC-23A (Yaani) | (380 ... 415 V) 400 A |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 12 kV |
| Tamko la Bidhaa ya Mazingira - EPD | 1SCC301283D0201 |
| Uwezo wa Kutengeneza Mzunguko Mfupi Uliokadiriwa (Icm) | (690 V) 65 kA |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | Θ = 40 °C 400 A |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | for 1 s 15 kA |
Maelezo ya Bidhaa
OT400U04P disconnect switch
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
