1SBL397201R1200

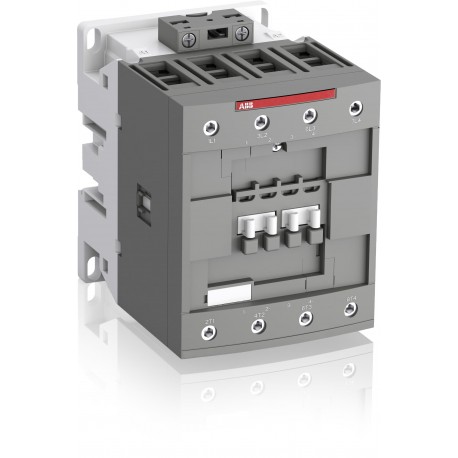

1SBL397201R1200 ABB AF80-40-00-12 48-130V50/60HZ-DC Contactor
$0.00USD
3163 kwenye hisa
Vipimo Muhimu
:Main Circuit 50 / 60 Hz
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| Darasa la mtandaoni | V11.0 : 27371003 |
| Viwango | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Hali ya RoHS | Following EU Directive 2011/65/EU |
| Aina ya Kituo | Screw Terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha BV | BV_2634H36994B1 |
| Cheti cha CB | CB_SE-113142A1 |
| Cheti cha KC | KC_HW02016-15013C |
| Cheti cha LR | LRS_LR23403517TA-02 |
| Cheti cha UL | UL-US-L312527-1142-02114102-6 |
| WEEE B2C / B2B | Business To Business |
| Cheti cha ABS | ABS_20-2060694-PDA |
| Cheti cha CCC | CCC_2013010304646569 |
| Cheti cha CQC | CQC2013010304646569 |
| Cheti cha DNV | DNV_TAE00001AF-4 |
| Cheti cha Jumuiya ya Afrika Mashariki | EAC_RU_FRME77B03447 |
| Kadi ya Orodha ya UL | UL_E312527 |
| Matumizi ya Koili | Average Holding Value 50 / 60 Hz 4 V·A |
| Cheti cha RMRS | RMRS_1400682124 |
| Taarifa za RoHS | 2CMT2021-006277 |
| Nambari ya Kielektroniki (Uswidi) | 3210314 |
| Upana Halisi wa Bidhaa | 90 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Kuhimili Hali ya Hewa | Category B according to IEC 60947-1 Annex Q |
| Nambari ya Kielektroniki (Ufini) | 3707459 |
| Urefu Halisi wa Bidhaa | 125.5 mm |
| Uzito Halisi wa Bidhaa | 1.49 kg |
| Kifurushi cha Kiwango cha 1 EAN | 3471523133723 |
| Masafa Yaliyokadiriwa (f) | Control Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 150 mm |
| Vitengo vya Kiwango cha 2 cha Kifurushi | box 8 piece |
| Upana wa Kiwango cha 2 cha Kifurushi | 250 mm |
| Vitengo vya Kiwango cha 3 cha Kifurushi | 192 piece |
| Urefu wa Kukata Waya | Control Circuit 10 mm |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 103 mm |
| Urefu wa Kifurushi cha Ngazi ya 2 | 300 mm |
| Halijoto ya Hewa ya Mazingira | Close to Contactor for Storage -60 ... +80 °C |
| Mchoro wa Vipimo vya CAD | 2CDC001079B0201 |
| Maagizo ya Mwisho wa Maisha | 1SBC101081M6801 |
| Maelekezo na Miongozo | 1SBC101047M6801 |
| Upinzani dhidi ya Mitetemo | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| Kukaza Torque UL/CSA | Control Circuit 11 in·lb |
| Ukadiriaji wa Matumizi ya Jumla UL/CSA | (600 V AC) 105 A |
| Uwezo wa Kuvunja Upeo | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 A |
| Volti ya Uendeshaji Iliyokadiriwa | Main Circuit 1000 V |
| Idadi ya Mawasiliano Kuu NC | 0 |
| Idadi ya Mawasiliano Kuu HAPANA | 4 |
| Msimbo wa Uainishaji wa Vitu | Q |
| Kina Halisi cha Bidhaa / Urefu | 116 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 1.62 kg |
| Uzito wa Jumla wa Kiwango cha 2 cha Kifurushi | 12.96 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-4-1 1000 V |
| Azimio la Uzingatiaji - CE | 1SBD250001U1000 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 150 mm |
| Kina / Urefu wa Kiwango cha 2 cha Kifurushi | 300 mm |
| Azimio la Uzingatiaji - CCC | 2020980304001255 |
| Idadi ya Mawasiliano Saidizi NC | 0 |
| Idadi ya Mawasiliano Saidizi HAPANA | 0 |
| Mzunguko Mkuu wa Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 6 ... 50 mm² |
| Azimio la Uzingatiaji - UKCA | 1SBD250032U1000 |
| Kiwango cha Juu cha Volti ya Uendeshaji UL/CSA | Main Circuit 600 V |
| Kuweka kwa Skurubu (hazijatolewa) | 2 x M4 or 2 x M6 screws placed diagonally |
| Nguvu ya Uendeshaji Iliyokadiriwa AC-3 (Pe) | (415 V) 45 kW |
| Nambari ya Kategoria ya Chembechembe ya IDEA (IGCC) | 4758 >> Iec Contactors |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 50 Hz 48 ... 130 V |
| Mzunguko wa Kudhibiti Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Uendeshaji wa Sasa Uliokadiriwa AC-1 (Yaani) | (690 V) 40 °C 125 A |
| Mkondo wa Uendeshaji Uliokadiriwa AC-3 (Yaani) | (415 V) 60 °C 80 A |
| Sheria ya Kudhibiti Vitu vya Sumu - TSCA | 2CMT2023-006525 |
| Masafa ya Juu ya Kubadilisha Umeme | (AC-1) 600 cycles per hour |
| Masafa ya Juu ya Kubadilisha Mitambo | 3600 cycles per hour |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | Without Derating 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 8 kV |
| Uwezo wa Kuunganisha Mzunguko Mkuu UL/CSA | Rigid Stranded 1/2x 6-1 AWG |
| Tamko la Bidhaa ya Mazingira - EPD | 2TFP200017A1001 |
| Saketi ya Kudhibiti Uwezo wa Kuunganisha UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 125 A |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 780 A |
Maelezo ya Bidhaa
AF80-40-00-12 CONT 4P BOB. 48-130VAC/DC
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
