1SBL281024R8310

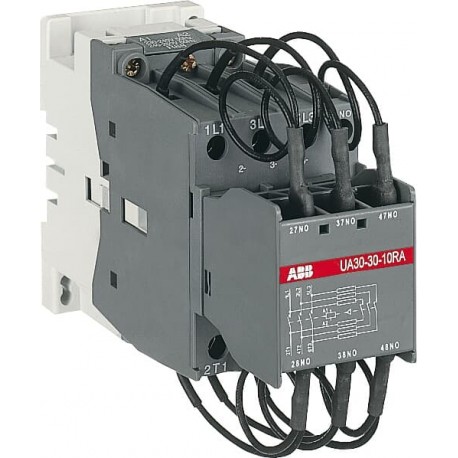

1SBL281024R8310 ABB UA30-30-10RA 48V 50Hz / 48V 60Hz Contactor
$0.00USD
4145 kwenye hisa
Vipimo Muhimu
:Main Circuit 690 V
ETIM 4:EC001079 - Capacitor magnet contactor
ETIM 5:EC001079 - Capacitor magnet contactor
ETIM 6:EC001079 - Capacitor contactor
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Main Circuit 690 V | |
| ETIM 4 | EC001079 - Capacitor magnet contactor |
| ETIM 5 | EC001079 - Capacitor magnet contactor |
| ETIM 6 | EC001079 - Capacitor contactor |
| ETIM 7 | EC001079 - Capacitor contactor |
| ETIM 8 | EC001079 - Capacitor contactor |
| UNSPSC | 39121529 |
| Darasa la mtandaoni | V11.0 : 27371006 |
| Viwango | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Hali ya RoHS | Following EU Directive 2011/65/EU |
| Muda wa Uendeshaji | Between Coil De-energization and NO Contact Opening 4 ... 11 ms |
| Aina ya Kituo | Screw Terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha CB | CB_FR3448_60016915-509739C |
| Cheti cha UL | UL-US-L312527-4104-71017991-2 |
| WEEE B2C / B2B | Business To Business |
| Cheti cha CCC | CCC_2004010304138316 |
| Cheti cha CQC | CQC2003010304060095 |
| Matumizi ya Koili | Average Holding Value 50 / 60 Hz 12 V·A |
| Cheti cha GOST | GOST_POCCFRME77B07175 |
| Taarifa za RoHS | 2CMT2021-006277 |
| Mchoro wa Vipimo | FPTE307845 |
| Upana Halisi wa Bidhaa | 54 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Kuhimili Hali ya Hewa | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Urefu Halisi wa Bidhaa | 130 mm |
| Uzito Halisi wa Bidhaa | 0.81 kg |
| Kifurushi cha Kiwango cha 1 EAN | 3471522302830 |
| Masafa Yaliyokadiriwa (f) | Auxiliary Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 135 mm |
| Vitengo vya Kiwango cha 2 cha Kifurushi | box 24 piece |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 63 mm |
| Halijoto ya Hewa ya Mazingira | Close to Contactor for Storage -60 ... +80 °C |
| Maelekezo na Miongozo | 1SBC101002M5501 |
| Uwezo wa Kuvunja Upeo | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A |
| Volti ya Uendeshaji Iliyokadiriwa | Auxiliary Circuit 690 V |
| Idadi ya Mawasiliano Kuu NC | 0 |
| Idadi ya Mawasiliano Kuu HAPANA | 3 |
| Msimbo wa Uainishaji wa Vitu | Q |
| Kina Halisi cha Bidhaa / Urefu | 141 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 0.81 kg |
| Uzito wa Jumla wa Kiwango cha 2 cha Kifurushi | 19.44 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-4-1 1000 V |
| Azimio la Uzingatiaji - CE | 1SBD250805U1000 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 155 mm |
| Azimio la Uzingatiaji - CCC | 2020980304001610 |
| Idadi ya Mawasiliano Saidizi NC | 0 |
| Idadi ya Mawasiliano Saidizi HAPANA | 1 |
| Mzunguko Mkuu wa Uwezo wa Kuunganisha | Flexible with Cable End 2.5 ... 4 mm² |
| Azimio la Uzingatiaji - UKCA | 1SBD250822U1000 |
| Vifaa vya Kulinda vya Mzunguko Mfupi | Auxiliary Circuit - gG Type Fuses 10 A |
| Karatasi ya Data, Taarifa za Kiufundi | 1SBC101140C0203 |
| Kuweka kwa Skurubu (hazijatolewa) | 2 x M4 screws placed diagonally |
| Nambari ya Kategoria ya Chembechembe ya IDEA (IGCC) | 4756 >> Capacitor magnet contactor |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 50 Hz 48 V |
| Nguvu ya Uendeshaji Iliyokadiriwa AC-6b (Pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 16 kvar |
| Sheria ya Kudhibiti Vitu vya Sumu - TSCA | 2CMT2023-006525 |
| Mkondo wa Uendeshaji Uliokadiriwa AC-15 (Yaani) | (500 V) 2 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-13 (Yaani) | (24 V) 6 A / 144 W |
| Mzunguko Saidizi wa Uwezo wa Kuunganisha | Flexible with Cable End 0.75 ... 2.5 mm² |
| Masafa ya Juu ya Kubadilisha Umeme | 240 cycles per hour |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | Without Derating 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 8 kV |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | for 0.1 s 140 A |
| Vituo vya Kuunganisha (vimewasilishwa katika nafasi wazi) Nguzo Kuu | M 5 (+,-) pozidriv 2 screws with 2x (5.6x6.5 mm) connector |
Maelezo ya Bidhaa
UA30-30-10RA CONT. condens. 30kVAr 48V
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
