1SBH136061R2262

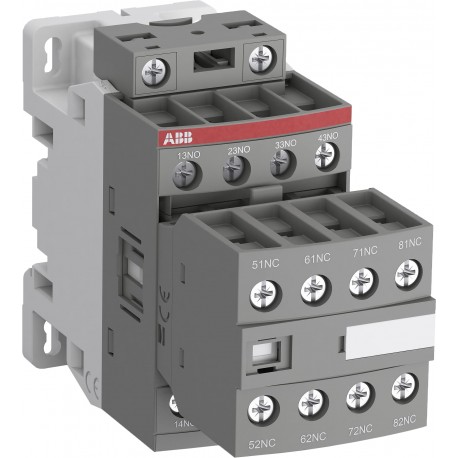

1SBH136061R2262 ABB NFZB62E-22 48-130V50/60HZ-DC Contactor Relay
$0.00USD
4102 kwenye hisa
Vipimo Muhimu
:Control Circuit 50 / 60 Hz
ETIM 4:EC000196 - Contactor relay
ETIM 5:EC000196 - Contactor relay
ETIM 6:EC000196 - Contactor relay
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Control Circuit 50 / 60 Hz | |
| ETIM 4 | EC000196 - Contactor relay |
| ETIM 5 | EC000196 - Contactor relay |
| ETIM 6 | EC000196 - Contactor relay |
| ETIM 7 | EC000196 - Contactor relay |
| ETIM 8 | EC000196 - Contactor relay |
| UNSPSC | 39121529 |
| Darasa la mtandaoni | V11.0 : 27371001 |
| Viwango | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| Hali ya RoHS | Following EU Directive 2011/65/EU |
| Muda wa Uendeshaji | Between Coil De-energization and NC Contact Closing 13 ... 98 ms |
| Aina ya Kituo | Screw Terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha CB | CB_SE-93051M2 |
| Cheti cha UL | UL_20180227_E252354_2_1 |
| WEEE B2C / B2B | Business To Business |
| Cheti cha CCC | CCC_2011010303465426 |
| Cheti cha CQC | CQC2019010303267993 |
| Cheti cha Jumuiya ya Afrika Mashariki | EAC_RU C-FR ME77 B01006 |
| Kadi ya Orodha ya UL | UL_E252354 |
| Cheti cha GOST | GOST_POCCFR.ME77.B07174.pdf |
| Cheti cha RMRS | RMRS_1802702280 |
| Taarifa za RoHS | 2CMT2021-006277 |
| Upana Halisi wa Bidhaa | 45 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Kuhimili Hali ya Hewa | Category B according to IEC 60947-1 Annex Q |
| Urefu Halisi wa Bidhaa | 86 mm |
| Uzito Halisi wa Bidhaa | 0.37 kg |
| Kifurushi cha Kiwango cha 1 EAN | 3471523105829 |
| Masafa Yaliyokadiriwa (f) | Auxiliary Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 87 mm |
| Vitengo vya Kiwango cha 2 cha Kifurushi | box 18 piece |
| Upana wa Kiwango cha 2 cha Kifurushi | 250 mm |
| Vitengo vya Kiwango cha 3 cha Kifurushi | 864 piece |
| Urefu wa Kukata Waya | Control Circuit 10 mm |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 47 mm |
| Urefu wa Kifurushi cha Ngazi ya 2 | 315 mm |
| Halijoto ya Hewa ya Mazingira | Close to Contactor for Storage -60 ... +80 °C |
| Mchoro wa Vipimo vya CAD | 2CDC001079B0201 |
| Maagizo ya Mwisho wa Maisha | 1SBC101080M6801 |
| Maelekezo na Miongozo | 1SBC101027M6801 |
| Kukaza Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Volti ya Uendeshaji Iliyokadiriwa | Auxiliary Circuit 690 V |
| Msimbo wa Uainishaji wa Vitu | K |
| Kina Halisi cha Bidhaa / Urefu | 86 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 0.37 kg |
| Uzito wa Jumla wa Kiwango cha 2 cha Kifurushi | 13.32 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-5-1 690 V |
| Azimio la Uzingatiaji - CE | 1SBD250006U1000 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 113 mm |
| Kina / Urefu wa Kiwango cha 2 cha Kifurushi | 300 mm |
| Azimio la Uzingatiaji - CCC | 2020980303000175 |
| Idadi ya Mawasiliano Saidizi NC | 2 |
| Idadi ya Mawasiliano Saidizi HAPANA | 6 |
| Azimio la Uzingatiaji - UKCA | 1SBD250037U1000 |
| Kuweka kwa Skurubu (hazijatolewa) | 2 x M4 screws placed diagonally |
| Nambari ya Kategoria ya Chembechembe ya IDEA (IGCC) | 4763 >> Power contactor, DC switching |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 50 Hz 48 ... 130 V |
| Mzunguko wa Kudhibiti Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Sheria ya Kudhibiti Vitu vya Sumu - TSCA | 2CMT2023-006525 |
| Mkondo wa Uendeshaji Uliokadiriwa AC-15 (Yaani) | (500 V) 2 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-13 (Yaani) | (24 V) 6 A / 144 W |
| Mzunguko Saidizi wa Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Masafa ya Juu ya Kubadilisha Umeme | (AC-15) 1200 cycles per hour |
| Masafa ya Juu ya Kubadilisha Mitambo | 6000 cycles per hour |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | Without Derating 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 6 kV |
| Tamko la Bidhaa ya Mazingira - EPD | 1SBD250584E3000 |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Mzunguko Saidizi wa Uwezo wa Kuunganisha UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | for 0.1 s 140 A |
Maelezo ya Bidhaa
NFZB62E-22CO. REL. TR.24-60VAC20-60VDC
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
