1SBH131001R8459

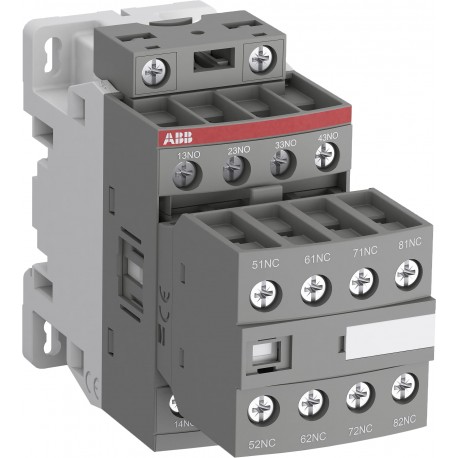

1SBH131001R8459 ABB NFC51/11-84 Contactor
$0.00USD
4530 kwenye hisa
Vipimo Muhimu
:Control Circuit 50 / 60 Hz
ETIM 7:EC000196 - Contactor relay
ETIM 8:EC000196 - Contactor relay
UNSPSC:39121500
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Control Circuit 50 / 60 Hz | |
| ETIM 7 | EC000196 - Contactor relay |
| ETIM 8 | EC000196 - Contactor relay |
| UNSPSC | 39121500 |
| Darasa la mtandaoni | V11.0 : 27371001 |
| Viwango | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Muda wa Uendeshaji | Between Coil De-energization and NC Contact Closing 9 ... 20 ms |
| Aina ya Kituo | Screw Terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha BV | BV_2634H24899C0 |
| Cheti cha CB | CB_SE-93051M2 |
| Cheti cha UL | UL-US-2343472-0 |
| WEEE B2C / B2B | Business To Business |
| Cheti cha CCC | 2020980303000185 |
| Cheti cha CQC | CQC2019010303267993 |
| Matumizi ya Koili | 2.3 W |
| Taarifa za RoHS | 2CMT2021-006277 |
| Upana Halisi wa Bidhaa | 45 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Kuhimili Hali ya Hewa | Category B according to IEC 60947-1 Annex Q |
| Urefu Halisi wa Bidhaa | 86 mm |
| Uzito Halisi wa Bidhaa | 0.362 kg |
| Kifurushi cha Kiwango cha 1 EAN | 3471523015555 |
| Masafa Yaliyokadiriwa (f) | Auxiliary Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 87 mm |
| Vitengo vya Kiwango cha 3 cha Kifurushi | 864 piece |
| Urefu wa Kukata Waya | Auxiliary Circuit 10 mm |
| Cheti cha A2L - UL | 9AKK108469A4893;9AKK108469A4894 |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 47 mm |
| Halijoto ya Hewa ya Mazingira | Close to Contactor for Storage -60 ... +80 °C |
| Mchoro wa Vipimo vya CAD | 2CDC001079B0201 |
| Maelekezo na Miongozo | 1SBC101027M6801 |
| Upinzani dhidi ya Mitetemo | 4g Closed Position & 2g Open position 5 ... 300 Hz |
| Kukaza Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Volti ya Uendeshaji Iliyokadiriwa | Auxiliary Circuit 690 V |
| Idadi ya Mawasiliano Kuu NC | 0 |
| Idadi ya Mawasiliano Kuu HAPANA | 0 |
| Msimbo wa Uainishaji wa Vitu | K |
| Kina Halisi cha Bidhaa / Urefu | 110.5 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 0.362 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-5-1 690 V |
| Azimio la Uzingatiaji - CE | 1SBD250026U1000 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 113 mm |
| Azimio la Uzingatiaji - CCC | 2020980303000175 |
| Idadi ya Mawasiliano Saidizi NC | 2 |
| Idadi ya Mawasiliano Saidizi HAPANA | 6 |
| Azimio la Uzingatiaji - UKCA | 1SBD250047U1000 |
| Karatasi ya Data, Taarifa za Kiufundi | 1SBC100219C0201 |
| Kuweka kwa Skurubu (hazijatolewa) | 2 x M4 screws placed diagonally |
| Nambari ya Kategoria ya Chembechembe ya IDEA (IGCC) | 4755 >> Contactors |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 50 Hz 110 V |
| Mzunguko wa Kudhibiti Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Sheria ya Kudhibiti Vitu vya Sumu - TSCA | 2CMT2023-006525 |
| Mkondo wa Uendeshaji Uliokadiriwa AC-15 (Yaani) | (500 V) 2 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-13 (Yaani) | (24 V) 6 A / 144 W |
| Mzunguko Saidizi wa Uwezo wa Kuunganisha | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Masafa ya Juu ya Kubadilisha Umeme | (AC-1) 0 cycles per hour |
| Masafa ya Juu ya Kubadilisha Mitambo | 6000 cycles per hour |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | Without Derating 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 6 kV |
| Upinzani dhidi ya mshtuko kwa IEC 60068-2-27 | Closed, Shock Direction: B1 25 g |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Mzunguko Saidizi wa Uwezo wa Kuunganisha UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | for 0.1 s 140 A |
Maelezo ya Bidhaa
NFC51/11-84 110V50Hz 110-120V60Hz Contactor Relay
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
