1SAL247501R9911

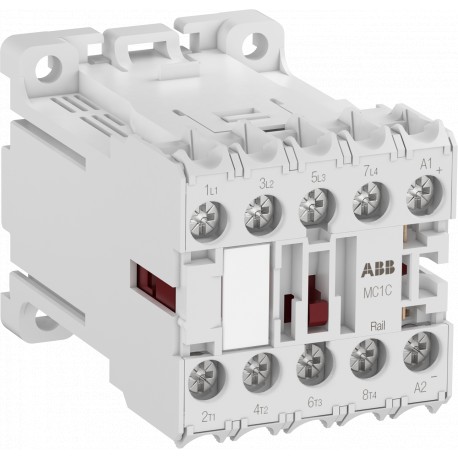

1SAL247501R9911 ABB MC1C400ARWJD-RAIL Mini Contactor
$0.00USD
4686 kwenye hisa
Vipimo Muhimu
:Main Circuit 440 V DC
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
ETIM 7:EC000066 - Power contactor, AC switching
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Main Circuit 440 V DC | |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| Darasa la mtandaoni | V11.0 : 27371003 |
| Viwango | IEC/EN 60947-1 |
| Kupoteza Nguvu | at Rated Operating Conditions AC-1 per Pole 0.7 W |
| Hali ya RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Cheti cha BV | 1SAA971000-0201 |
| Cheti cha CB | 1SAA971000-2001 |
| Cheti cha UL | E191658-19880826 |
| WEEE B2C / B2B | Business To Business |
| Cheti cha CQC | CQC2019010304197131 |
| Idadi ya Nguzo | 4 |
| Cheti cha RINA | 1SAA971000-0801 |
| Taarifa za RoHS | 2CMT2021-006277 |
| Upana Halisi wa Bidhaa | 45 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Kukaza Torque | Control Circuit 0.8 N·m |
| Nambari ya Kielektroniki (Ufini) | 3709735 |
| Urefu Halisi wa Bidhaa | 48 mm |
| Uzito Halisi wa Bidhaa | 0.25 kg |
| Aina Ndogo ya Kiunganishi | Mini Contactor |
| Kifurushi cha Kiwango cha 1 EAN | 4013614548833 |
| Kifurushi cha Kiwango cha 2 EAN | 4013614549038 |
| Masafa Yaliyokadiriwa (f) | Control Circuit DC |
| Kiwango cha Ulinzi | Control Circuit Terminals IP20 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Vikomo vya Uendeshaji wa Koili | (acc. to IEC 60947-4-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C) |
| Nambari ya Ushuru wa Forodha | 85365080 |
| Uimara wa Kimitambo | 10000000 cycle |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 46 mm |
| Vitengo vya Kiwango cha 2 cha Kifurushi | box 10 piece |
| Upana wa Kiwango cha 2 cha Kifurushi | 243 mm |
| Urefu wa Kukata Waya | Control Circuit 9 mm |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 70 mm |
| Urefu wa Kifurushi cha Ngazi ya 2 | 80 mm |
| Cheti cha A2L - IEC | 1SAA971000-4601 |
| Halijoto ya Hewa ya Mazingira | Operation -40 ... +70 °C |
| Mchoro wa Vipimo vya CAD | 2CDC001079B0201 |
| Matumizi ya Mota ya Amps za Mzigo Kamili | (115 V AC) Single Phase 9.8 A |
| Ukadiriaji wa Nguvu za Farasi UL/CSA | (115 V AC) Single Phase 0.5 Hp |
| Maelekezo na Miongozo | 2CDC103061M6801 |
| Kiendeshi cha Skurubu Kinachopendekezwa | Pozidriv 2 |
| Upinzani dhidi ya Mitetemo | 5g 3 ... 150 Hz |
| Kukaza Torque UL/CSA | Control Circuit 7 in·lb |
| Ukadiriaji wa Matumizi ya Jumla UL/CSA | (600 V AC) 20 A |
| Volti ya Uendeshaji Iliyokadiriwa | Main Circuit 690 V AC |
| Idadi ya Mawasiliano Kuu NC | 0 |
| Idadi ya Mawasiliano Kuu HAPANA | 4 |
| Msimbo wa Uainishaji wa Vitu | Q |
| Kina Halisi cha Bidhaa / Urefu | 68 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 0.255 kg |
| Uzito wa Jumla wa Kiwango cha 2 cha Kifurushi | 2.61 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | 750 V |
| Azimio la Uzingatiaji - CE | 1SAD101100-3201 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 49 mm |
| Kina / Urefu wa Kiwango cha 2 cha Kifurushi | 106 mm |
| Azimio la Uzingatiaji - CCC | 2020980304001602 |
| Idadi ya Mawasiliano Saidizi NC | 0 |
| Idadi ya Mawasiliano Saidizi HAPANA | 0 |
| Mzunguko Mkuu wa Uwezo wa Kuunganisha | Flexible 1/2x 0.75 ... 2.5 mm² |
| Azimio la Uzingatiaji - UKCA | 1SAD201100-3201 |
| Kiwango cha Juu cha Volti ya Uendeshaji UL/CSA | Main Circuit 600 V AC |
| Nguvu ya Uendeshaji Iliyokadiriwa AC-3 (Pe) | (230 V) Three Phase 2.2 kW |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 77 ... 137 V DC |
| Mzunguko wa Kudhibiti Uwezo wa Kuunganisha | Flexible 1/2x 0.75 ... 2.5 mm² |
| Uendeshaji wa Sasa Uliokadiriwa AC-1 (Yaani) | (690 V) 55 °C 20 A |
| Masafa ya Juu ya Kubadilisha Umeme | (AC-1) 300 cycles per hour |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | Main Circuit 6 kV |
| Uwezo wa Kuunganisha Mzunguko Mkuu UL/CSA | Stranded 1/2x 18-12 AWG |
| Upinzani dhidi ya mshtuko kwa IEC 60068-2-27 | 11 ms Pulse 25g |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | Main Circuit 20 A |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
Maelezo ya Bidhaa
MC1C400ARWJD-RAIL Mini Contactor 77 ... 137 V DC - 4 NO - 0 NC - Ring-Tongue Terminals
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
